FC series Clevises
Material and surface treatments:
1) Medium carbon steel 45;Coated with rust-proof oil, zinc plating or nickel plating. 2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation. 3) Alternative aluminum 6061; Surface cleaning, or anodizing finish. 4) Alternative alloy steel 35CrMo; Coated with rust-proof oil, zinc plating or nickel plating. |
Code of thread: left-handed thread – LH, E.g. FC5-5LH.

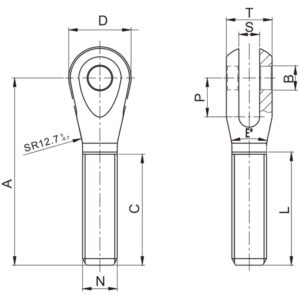

Part No. | Dimensions | |||||||||
A
±.015 |
B
+ .005 -.000 |
C
+ .062 -.031 |
D
±.010 |
E
Angle |
L
±.015 |
P
+ .010 -.040 |
S
±.005 |
T
±.005 |
N
Thread UNF-3A |
|
FC4-5 | 2.250 | 0.250 | 1.250 | 0.875 | 40 | 1.290 | 0.550 | 0.188 | 0.625 | 5/16-24 |
FC5-5 | 2.250 | 0.313 | 1.250 | 0.875 | 40 | 1.290 | 0.550 | 0.188 | 0.625 | 5/16-24 |
FC5-6 | 2.250 | 0.313 | 1.250 | 0.875 | 36 | 1.290 | 0.550 | 0.188 | 0.625 | 3/8-24 |
FC5-8 | 2.500 | 0.313 | 1.500 | 1.000 | 38 | 1.540 | 0.550 | 0.250 | 0.750 | 1/2-20 |
FC6-8 | 2.500 | 0.375 | 1.500 | 1.000 | 38 | 1.540 | 0.550 | 0.250 | 0.750 | 1/2-20 |
FC6-10 | 3.375 | 0.375 | 2.000 | 1.125 | 24 | 2.040 | 0.550 | 0.375 | 0.825 | 5/8-18 |
FC6-12 | 3.375 | 0.375 | 2.000 | 1.125 | 18 | 2.040 | 0.800 | 0.375 | 0.825 | 3/4-16 |
FC7-8 | 3.375 | 0.438 | 2.000 | 1.125 | 30 | 2.040 | 0.550 | 0.375 | 0.825 | 1/2-20 |
FC7-10 | 3.375 | 0.438 | 2.000 | 1.125 | 24 | 2.040 | 0.700 | 0.375 | 0.825 | 5/8-18 |
FC8-10 | 3.375 | 0.500 | 2.000 | 1.125 | 24 | 2.040 | 0.700 | 0.375 | 0.825 | 5/8-18 |
FC8-12 | 3.375 | 0.500 | 2.000 | 1.125 | 18 | 2.040 | 0.800 | 0.250 | 0.825 | 3/4-16 |
FC8-12-1 | 3.375 | 0.500 | 2.000 | 1.125 | 18 | 2.040 | 0.700 | 0.375 | 0.825 | 3/4-16 |
