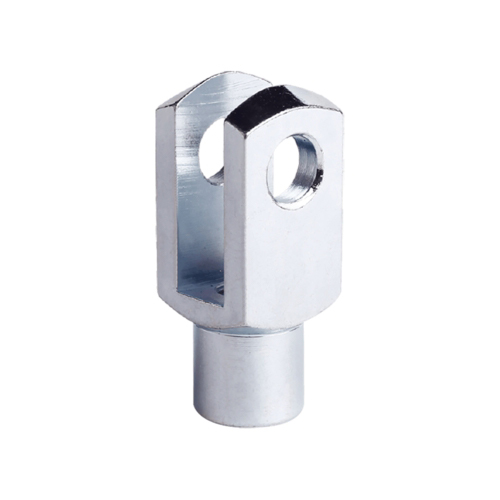

Clevises – FK Series DIN71752 DIN ISO8140 CETOP
Clevises – FK Series DIN71752 / DIN ISO8140 / CETOP
 |
Material and surface treatments:
1) Low carbon steel Q235A; Coated with rust-proof oil, zinc plating or nickel plating. 2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation. 3) Alternative aluminum 6061; Surface cleaning, or anodizing finish. 4) Alternative medium carbon steel 45; Coated with rust-proof oil, zinc plating or nickel plating. |
Code of thread: fine-pitch thread – FG, left-handed thread – LH, fine-pitch and left-handed thread-FGLH.

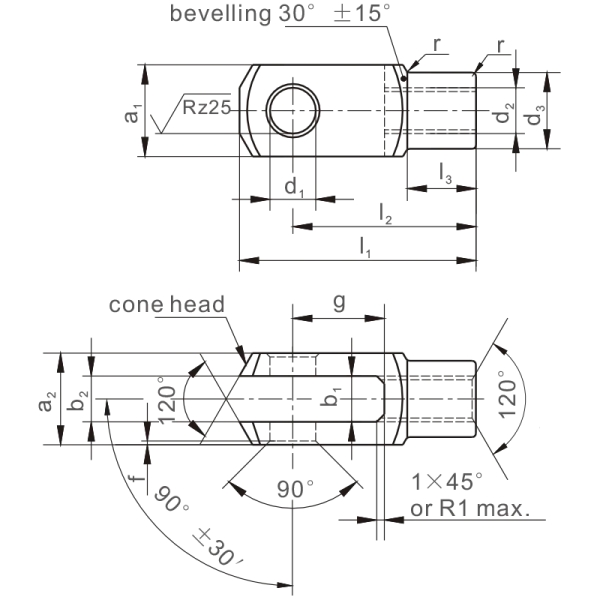

Part No. |
Dimensions | Weight | |||||||||||||||
| d1
H9 |
g
±0.5 |
a1
h11 |
a2
+0.30 -0.16 |
b1
B13 |
b2
Adm. Variation |
d2
Regular thread Fine-pitch thread |
d3
士 0.3 |
f
±0.2 |
l1
±0.5 |
l2
Adm. Variation |
l3
±0.2 |
r | Kg≈ | ||||
| FK 4X8 | 4 | 8 | 8 | 8 | 4 | 4 | B13 | M4X0.7 | 8 | 0.5 | 21 | 16 | ±0.3 | 6.0 | 0.5 | 0.005 | |
| FK 4X16 | 4 | 16 | 8 | 8 | 4 | 4 | B13 | M4X0.7 | 8 | 0.5 | 29 | 24 | ±0.3 | 6.0 | 0.5 | 0.007 | |
| FK 5X10 | 5 | 10 | 10 | 10 | 5 | 5 | B13 | M5X0.8 | 9 | 0.5 | 26 | 20 | ±0.3 | 7.5 | 0.5 | 0.009 | |
| FK 5X20 | 5 | 20 | 10 | 10 | 5 | 5 | B13 | M5X0.8 | 9 | 0.5 | 36 | 30 | ±0.3 | 7.5 | 0.5 | 0.013 | |
| FK 6X12 | 6 | 12 | 12 | 12 | 6 | 6 | B13 | M6X1 | 10 | 0.5 | 31 | 24 | ±0.3 | 9.0 | 0.5 | 0.015 | |
| FK 6X24 | 6 | 24 | 12 | 12 | 6 | 6 | B13 | M6X1 | 10 | 0.5 | 43 | 36 | 土 0.4 | 9.0 | 0.5 | 0.021 | |
| FK 8X16 | 8 | 16 | 16 | 16 | 8 | 8 | B13 | M8X1.25 | 14 | 0.5 | 42 | 32 | ±0.4 | 12.0 | 0.5 | 0.037 | |
| FK 8X16 FG | 8 | 16 | 16 | 16 | 8 | 8 | B13 | M8X1 | 14 | 0.5 | 42 | 32 | ±0.4 | 12.0 | 0.5 | 0.037 | |
| FK 8X32 | 8 | 32 | 16 | 16 | 8 | 8 | B13 | M8X1.25 | 14 | 0.5 | 58 | 48 | ±0.4 | 12.0 | 0.5 | 0.054 | |
| FK 8X32 FG | 8 | 32 | 16 | 16 | 8 | 8 | B13 | M8X1 | 14 | 0.5 | 58 | 48 | ±0.4 | 12.0 | 0.5 | 0.054 | |
| FK 10X20 | 10 | 20 | 20 | 20 | 10 | 10 | B13 | M10X1.5 | 18 | 0.5 | 52 | 40 | ±0.4 | 15.0 | 0.5 | 0.074 | |
| FK 10X20 FG | 10 | 20 | 20 | 20 | 10 | 10 | B13 | M10X1.25 | 18 | 0.5 | 52 | 40 | ±0.4 | 15.0 | 0.5 | 0.074 | |
FK 10X40 |
10 | 40 | 20 | 20 | 10 | 10 | +0.7
+0.15 |
M10X1.5 | 18 | 0.5 | 72 | 60 | ±0.4 | 15.0 | 0.5 | 0.116 | |
| FK 10X40 FG | 10 | 40 | 20 | 20 | 10 | 10 | +0.7
+0.15 |
M10X1.25 | 18 | 0.5 | 72 | 60 | ±0.4 | 15.0 | 0.5 | 0.116 | |
| FK 12X24 | 12 | 24 | 24 | 24 | 12 | 12 | +0.7
+0.15 |
M12X1.75 | 20 | 0.5 | 62 | 48 | ±0.4 | 18.0 | 0.5 | 0.121 | |
| FK 12X24 FG | 12 | 24 | 24 | 24 | 12 | 12 | +0.7
+0.15 |
M12X1.25 | 20 | 0.5 | 62 | 48 | ±0.4 | 18.0 | 0.5 | 0.121 | |
| FK 12X48 | 12 | 48 | 24 | 24 | 12 | 12 | +0.7
+0.15 |
M12X1.75 | 20 | 0.5 | 86 | 72 | ±0.4 | 18.0 | 0.5 | 0.175 | |
| FK 12X48 FG | 12 | 48 | 24 | 24 | 12 | 12 | +0.7
+0.15 |
M12X1.25 | 20 | 0.5 | 86 | 72 | ±0.4 | 18.0 | 0.5 | 0.175 | |
| FK 14X28 | 14 | 28 | 27 | 27 | 14 | 14 | +0.7
+0.15 |
M14X2 | 24 | 1.0 | 72 | 56 | ±0.4 | 22.5 | 1.0 | 0.178 | |
FK 14X28 FG |
14 | 28 | 27 | 27 | 14 | 14 | +0.7
+0.15 |
M14X1.5 | 24 | 1.0 | 72 | 56 | ±0.4 | 22.5 | 1.0 | 0.178 | |
| FK 14X56 | 14 | 56 | 27 | 27 | 14 | 14 | +0.7
+0.15 |
M14X2 | 24 | 1.0 | 101 | 85 | ±0.4 | 22.5 | 1.0 | 0.258 | |
| FK 14X56 FG | 14 | 56 | 27 | 27 | 14 | 14 | +0.7
+0.15 |
M14X1.5 | 24 | 1.0 | 101 | 85 | ±0.4 | 22.5 | 1.0 | 0.258 | |
| FK 16X32 | 16 | 32 | 32 | 32 | 16 | 16 | +0.7
+0.15 |
M16X2 | 26 | 1.0 | 83 | 64 | ±0.4 | 24.0 | 1.0 | 0.282 | |
| FK 16X32 FG | 16 | 32 | 32 | 32 | 16 | 16 | +0.7
+0.15 |
M16X1.5 | 26 | 1.0 | 83 | 64 | 士 0.4 | 24.0 | 1.0 | 0.282 | |
| FK 16X64 | 16 | 64 | 32 | 32 | 16 | 16 | +0.7
+0.15 |
M16X2 | 26 | 1.0 | 115 | 96 | ±0.4 | 24.0 | 1.0 | 0.411 | |
| FK 16X64 FG | 16 | 64 | 32 | 32 | 16 | 16 | +0.7
+0.15 |
M16X1.5 | 26 | 1.0 | 115 | 96 | ±0.4 | 24.0 | 1.0 | 0.411 | |
| FK 18X36 | 18 | 36 | 36 | 36 | 18 | 18 | +0.7
+0.15 |
M18X2.5 | 30 | 1.0 | 94 | 72 | ±0.4 | 27.0 | 1.5 | 0.39 | |
| FK 18X36 FG | 18 | 36 | 36 | 36 | 18 | 18 | +0.7
+0.15 |
M18X1.5 | 30 | 1.0 | 94 | 72 | ±0.4 | 27.0 | 1.5 | 0.39 | |
| FK 20X40 | 20 | 40 | 40 | 40 | 20 | 20 | +0.7
+0.15 |
M20X2.5 | 34 | 1.0 | 105 | 80 | ±0.4 | 30.0 | 1.5 | 0.55 | |
| FK 20X40 FG | 20 | 40 | 40 | 40 | 20 | 20 | +0.7
+0.15 |
M20X1.5 | 34 | 1.0 | 105 | 80 | ±0.4 | 30.0 | 1.5 | 0.55 | |
FK 20X80 |
20 | 80 | 40 | 40 | 20 | 20 | +0.7
+0.15 |
M20X2.5 | 34 | 1.0 | 145 | 120 | ±0.4 | 30.0 | 1.5 | 0.80 | |
| FK 20X80 FG | 20 | 80 | 40 | 40 | 20 | 20 | +0.7
+0.15 |
M20X1.5 | 34 | 1.0 | 145 | 120 | ±0.4 | 30.0 | 1.5 | 0.80 | |
| FK 25X50 | 25 | 50 | 50 | 50 | 25 | 25 | +0.7
+0.15 |
M24X3 | 42 | 1.5 | 132 | 100 | ±0.4 | 36.0 | 1.5 | 1.10 | |
| FK 25X50 FG | 25 | 50 | 50 | 50 | 25 | 25 | +0.7
+0.15 |
M24X2 | 42 | 1.5 | 132 | 100 | ±0.4 | 36.0 | 1.5 | 1.10 | |
| FK 28X56 | 28 | 56 | 55 | 55 | 28 | 28 | +0.7
+0.15 |
M27X3 | 48 | 1.5 | 148 | 112 | ±0.4 | 40.0 | 2.0 | 1.50 | |
| FK 28X56 FG | 28 | 56 | 55 | 55 | 28 | 28 | +0.7
+0.15 |
M27X2 | 48 | 1.5 | 148 | 112 | ±0.4 | 40.0 | 2.0 | 1.50 | |
| FK 30X54 FG | 30 | 54 | 55 | 55 | 30 | 30 | +0.7
+0.15 |
M27X2 | 48 | 1.5 | 148 | 110 | ±0.4 | 40.0 | 2.0 | 1.44 | |
| FK 30X60 | 30 | 60 | 60 | 60 | 30 | 30 | +0.7
+0.15 |
M30X3.5 | 52 | 1.5 | 160 | 120 | ±0.4 | 42.0 | 2.0 | 1.97 | |
| FK 30X60 FG | 30 | 60 | 60 | 60 | 30 | 30 | +0.7
+0.15 |
M30X2 | 52 | 1.5 | 160 | 120 | ±0.4 | 42.0 | 2.0 | 1.97 | |
| FK 35X54 FG | 35 | 54 | 70 | 70 | 35 | 35 | +0.7
+0.15 |
M36X2 | 60 | 2.0 | 188 | 144 | ±0.4 | 54.0 | 3.0 | 2.93 | |
| FK 35X72 | 35 | 72 | 70 | 70 | 35 | 35 | +0.7
+0.15 |
M36X4 | 60 | 2.0 | 188 | 144 | ±0.4 | 54.0 | 3.0 | 2.93 | |
| FK 35X72 FG | 35 | 72 | 70 | 70 | 35 | 35 | +0.7
+0.15 |
M36X2 | 60 | 2.0 | 188 | 144 | ±0.4 | 54.0 | 3.0 | 2.93 | |
| FK 36X72 | 35 | 72 | 70 | 70 | 36 | 36 | +0.7
+0.15 |
M36X4 | 60 | 2.0 | 188 | 144 | ±0.4 | 54.0 | 3.0 | 2.93 | |
| FK 36X72 FG | 35 | 72 | 70 | 70 | 36 | 36 | +0.7
+0.15 |
M36X2 | 60 | 2.0 | 188 | 144 | ±0.4 | 54.0 | 3.0 | 2.93 | |
| FK 40X84 FG | 40 | 84 | 85 | 85 | 40 | 40 | +0.7
+0.15 |
M42X2 | 70 | 3.0 | 232 | 168 | ±0.4 | 63.5 | 5.0 | 5.64 | |
FK 42X84 |
42 | 84 | 85 | 85 | 42 | 42 | +0.7
+0.15 |
M42X4.5 | 70 | 3.0 | 232 | 168 | ±0.4 | 63.5 | 5.0 | 5.34 | |
| FK 42X84 FG | 42 | 84 | 85 | 85 | 42 | 42 | +0.7
+0.15 |
M42X2 | 70 | 3.0 | 232 | 168 | ±0.4 | 63.5 | 5.0 | 5.34 | |
| FK 50X96 | 50 | 96 | 96 | 96 | 50 | 50 | +0.7
+0.15 |
M48X5 | 82 | 3.0 | 265 | 192 | ±0.4 | 73.0 | 5.0 | 7.86 | |
| FK 50X96 FG | 50 | 96 | 96 | 96 | 50 | 50 | +0.7
+0.15 |
M48X2 | 82 | 3.0 | 265 | 192 | ±0.4 | 73.0 | 5.0 | 7.86 | |
Our company is well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. We are leading DIN71752 Clevises Manufacturers and FK type Clevises DIN71752 / DIN ISO8140 / CETOP M4-M48 suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured FK Series Clevises DIN71752 / DIN ISO8140 / CETOP M4-M48 are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
