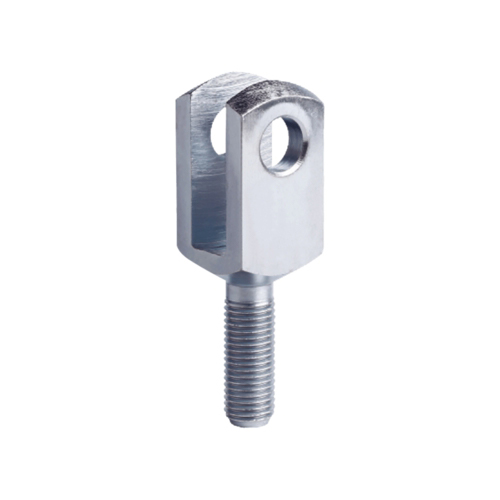

Clevises with Male Thread FT Series DIN71752 / DIN ISO8140 / CETOP
Clevises with Male Thread FT Series DIN71752 / DIN ISO8140 / CETOP
 |
Material and surface treatments:
1) Low carbon steel Q235A; Coated with rust-proof oil, zinc plating or nickel plating. 2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation. 3) Alternative aluminum 6061; Surface cleaning or anodizing finish. 4) Alternative medium carbon steel 45; Coated with rust-proof oil, zinc plating or nickel plating. |
Code of thread: fine-pitch thread – FG, left-handed thread – LH, fine-pitch and left-handed thread-FGLH.

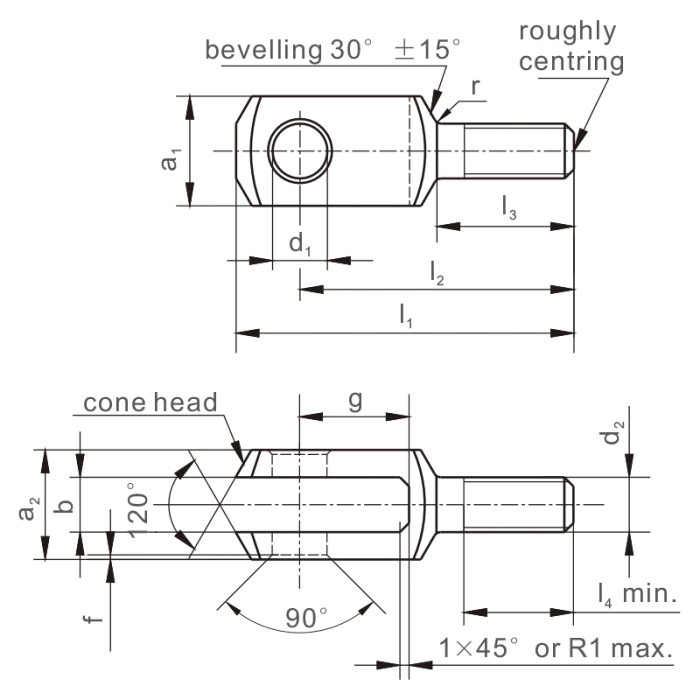

| Part No. | mm Dimensions | KG Weight | ||||||||||||
| d1
H9 |
g
±0.5 |
a1
h11 |
a2
+0.50 -0.20
|
b
+0.7 +0.15 |
d2
Regular thread Fine-pitch thread |
f
±0.2 |
l1
±0.2 |
l2
±0.4 |
l3
±0.2 |
l4 | r | Kg≈ | ||
| FT 6X12 | 6 | 12 | 12 | 12 | 6 | M6X1 | — | 0.5 | 44 | 37 | 20 | 15 | 0.8 | 0.015 |
| FT 8X16 | 8 | 16 | 16 | 16 | 8 | M8X1.25 | — | 0.5 | 57 | 47 | 25 | 20 | 0.8 | 0.036 |
| FT 10X20 | 10 | 20 | 20 | 20 | 10 | M10X1.5 | — | 0.5 | 69 | 57 | 30 | 25 | 0.8 | 0.068 |
| FT 12X24 | 12 | 24 | 24 | 24 | 12 | M12X1.75 | — | 0.5 | 82 | 68 | 35 | 30 | 0.8 | 0.122 |
| FT 14X28 | 14 | 28 | 27 | 27 | 14 | M14X2 | — | 1.0 | 94 | 78 | 40 | 35 | 1.2 | 0.171 |
| FT 16X32 | 16 | 32 | 32 | 32 | 16 | M16X2 | — | 1.0 | 108 | 89 | 45 | 40 | 1.2 | 0.288 |
| FT 20X40 | 20 | 40 | 40 | 40 | 20 | M20X2.5 | — | 1.0 | 134 | 109 | 55 | 50 | 1.5 | 0.550 |
