CN single universal joints

Category:
Description

CN single universal joints

Power-trans is a specialist provider of universal joints, single universal joints, double universal joints, china Universal joints, coupling Universal joints, U-joint China, and Cardan joint. It provides a range of U joints under PB, PR, NB, and CN series. Power-trans can custom design and manufacture U joints and their connectors based on customer specifications.

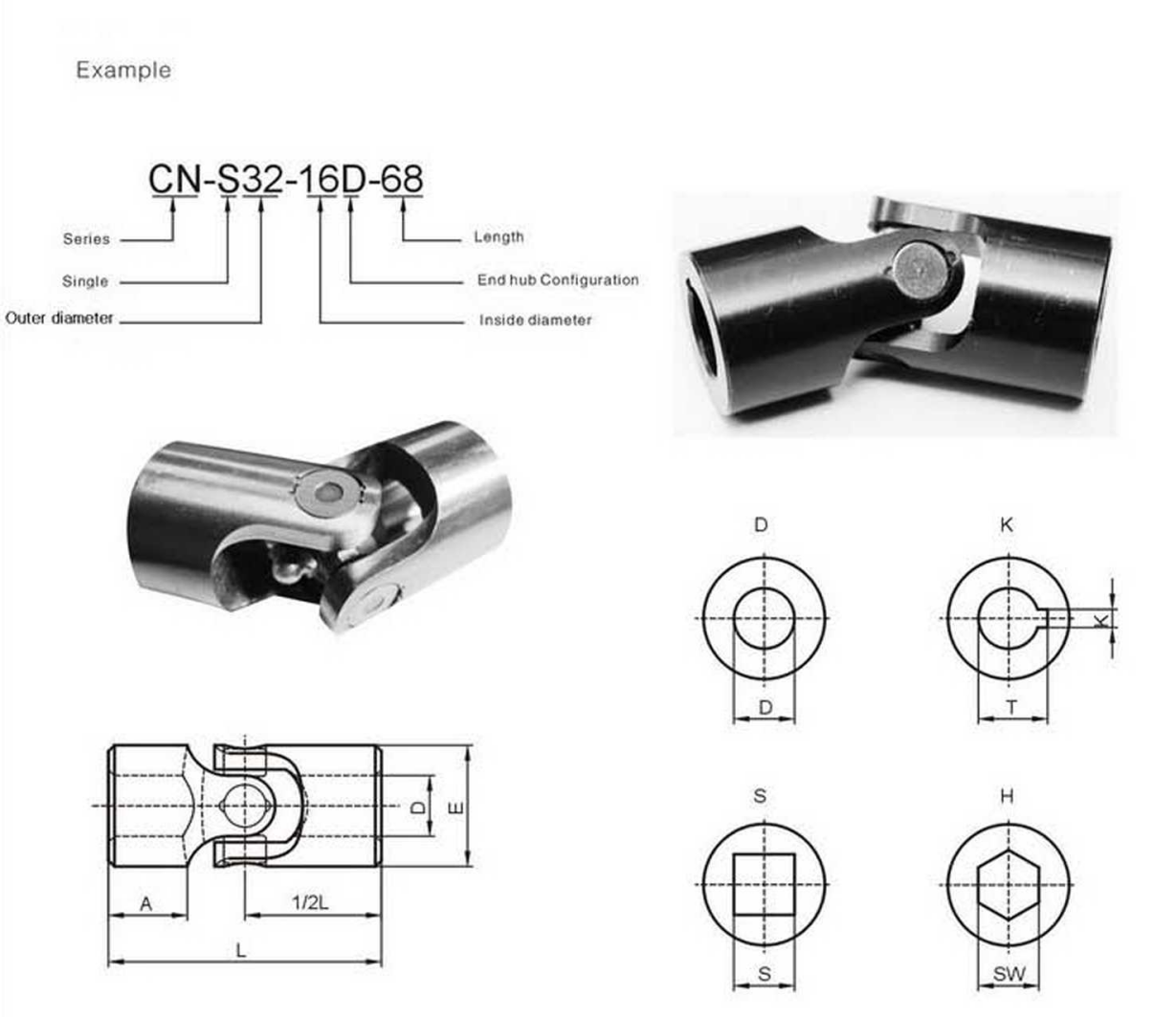

Part No.\Size D

(H7)

E L A 1/2L K

(JS9)

T S

(H8)

SW

(H8)

CN-S32 16 32 68 17 34 5 18.3 16 16
CN-S35 18 35 78 21.5 39 6 20.8 18 18
CN-S37 20 37 82 21 41 6 22.8 20 20
CN-S42 22 42 95 25.5 47.5 6 24.8 22 22
CN-S45 25 45 108 31 54 8 28.3 25 25
CN-S50 30 50 122 35 61 8 33.3 30 30
CN-S60 35 60 160 49 80 10 38.3 35 35

About us

We manufacturer all type of universal couplings , universal joints , u joints propeller shaft , ball joints , rod end bearings , heim joints , rod eyes , rod couplers , slef aligning couplers , hard chrome plated bar , induction harden hard chrome plated bar , u joints , single joint universal joints , double joint universal joints , cardan shafts , propeller shaft , linear bearings , linear shaft , self aligning , graphite filled bush , sintered bush , brass bush , pb bush , steel balls , stainless steel bearings , spherical palin bearings , thk japan bearings , iko japan bearings , ls bearings , spherical palin bearings , hiwin linear bearings , khs linear bearings , won linear bearings , schneeberger bearings , linear bushing , cross linear guide ways , penumatic and hydarulic mountings , ball joints , end joints , cross joints , double cross joints , tie joints , rod end bearings , asahi bearings , introduction : oki universal joints provide a simple & economic method of connecting two shafts whose axes are inclined at an angle.
