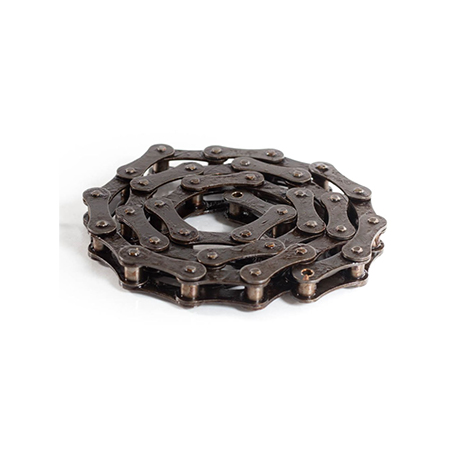

Combine standard chain 08B-1 08B-3 10A-1 10A-2 12A-1 16A-1 16AH-1
Combine standard chain
- Measurement System: The clean grain elevator chain speed is monitored by a low shaft speed monitor. This device measures the RPM of the chain.
- Flow Rate Calculation: Using the RPM of the chain and the force of the grain impacting the plate, calculate the grain flow rate. This information is then recorded by the combine’s controller software.
- Importance of Maintenance: To minimize grain loss, it’s crucial to have solid, non-worn rubber paddles. The paddles should be in good condition to ensure effective grain handling.
- Quality of Parts: Your clean grain chains adhere to Original Equipment Manufacturer (O.E.M.) specifications. The rubber paddles are securely attached to heavy-duty roller chains with locknuts, ensuring durability and reliability.

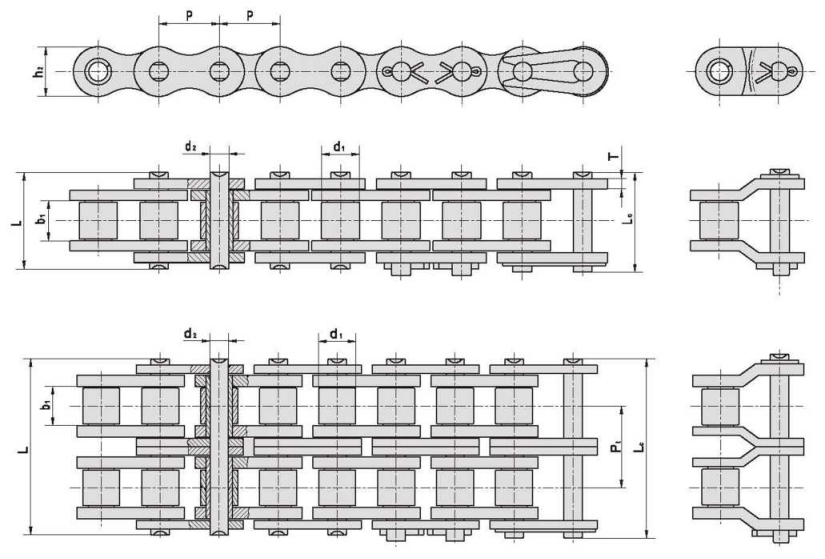

Diameter Data
Chain
No. |
Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin length | Inner plate depth | Plate thickness | Transverse
pitch |
Ultimate tensile strength | Average tensile strength | Weight per meter | |
P | d1
max |
b1
min |
dz
max |
max | Lc
max |
h2
max |
T | Pt | Q
min |
Qo | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | |
08B-1 | 12.70 | 8.51 | 7.75 | 4.45 | 167 | 18.0 | 11.80 | 1.60 | 18.0 | 19.3 | 0.69 | |
08B-3 | 12.70 | 8.51 | 7.75 | 4.45 | 44.9 | 46.1 | 11.80 | 1.60 | 13.92 | 47.5 | 50.2 | 2.03 |
10A-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.9 | 22.2 | 15.09 | 2.03 | 22.2 | 26.4 | 1.02 | |
10A-2 | 15.875 | 10.16 | 9.40 | 5.08 | 39.0 | 40.3 | 15.09 | 2.03 | 18.11 | 44.4 | 55.4 | 2.00 |
12A-1 | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 27.5 | 18.00 | 2.42 | 31.8 | 38.8 | 1.50 | |
16A-1 | 25.40 | 15.88 | 15.75 | 7.92 | 32.8 | 34.9 | 24.00 | 3.25 | 56.7 | 64.9 | 2.60 | |
16AH-1 | 25.40 | 15.88 | 15.75 | 7.92 | 36.2 | 37.7 | 24.00 | 4.00 | 56.7 | 71.4 | 3.10 |
