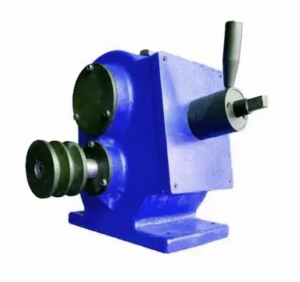

Agricultural Sprayer Gearbox – Replacement of Comer Code D-7A/D-7B
An agricultural sprayer gearbox is a critical component of a sprayer system, which is used to spray chemicals, pesticides, herbicides, and other agricultural products onto crops. The gearbox is responsible for controlling the speed and power of the sprayer’s pump, which determines the amount and distribution of the product being sprayed.
Agricultural Sprayer Gearbox – Replacement of Comer Code D-7A/D-7B
An agricultural sprayer gearbox(Comer D-7 Agricultural Sprayer Gearbox) is a critical component of a sprayer system, which is used to spray chemicals, pesticides, herbicides, and other agricultural products onto crops. The gearbox is responsible for controlling the speed and power of the sprayer’s pump, which determines the amount and distribution of the product being sprayed.
Specifications of Agricultural Sprayer Gearbox D-7A & D-7B

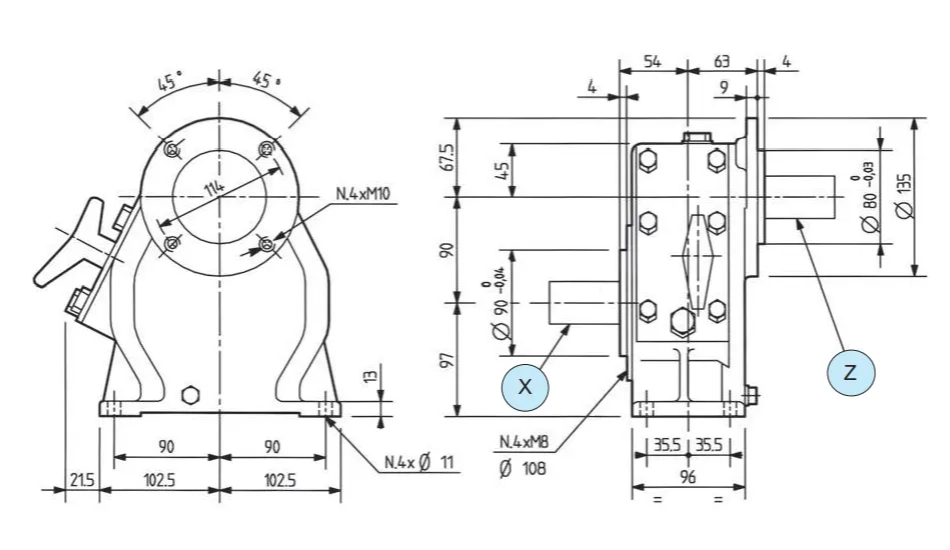

D-7A
| i | N1[rpm] | P1[kW] | M2[Nm] | Shaft Type |
Input | |
X |
Z |
|||||
| 5.82 | 540 | 16.2 | 48 | 1” 3/8 Z6 | 35 | X |
| 4.36 | 540 | 21.3 | 84 | 1” 3/8 Z6 | X | |
| 4.00 | 540 | 21.7 | 93 | 1” 3/8 Z6 | X | |

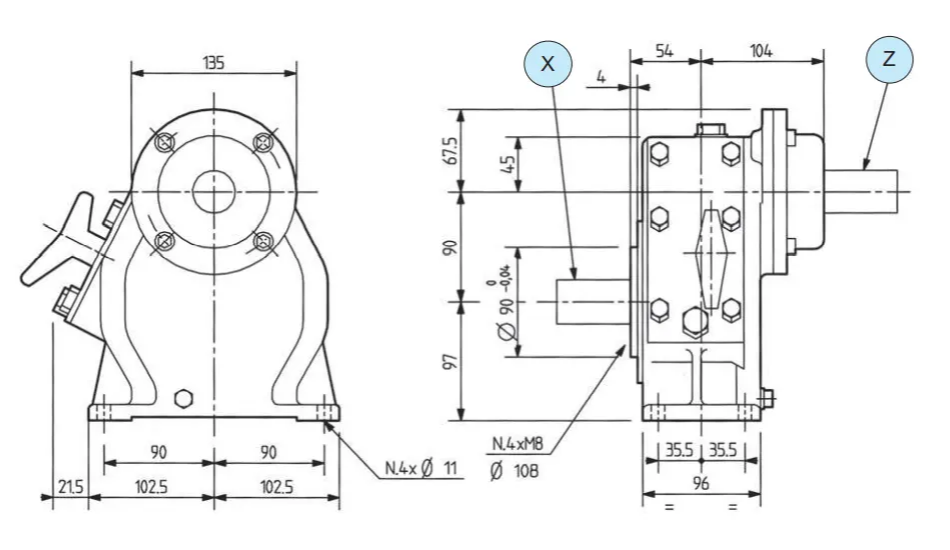

D-7B
| i | N1[rpm] | P1[kW] | M2[Nm] | Shaft Type |
Input | |
| X |
Z |
|||||
| 5.25 | 540 | 20.6 | 67 | 1” 3/8 Z6 | X | |
| 4.36 | 540 | 21.3 | 83 | 1” 3/8 Z6 | X | |
| 4.00 | 540 | 21.7 | 95 | 1” 3/8 Z6 | 40 | X |
Agricultural Sprayer Gearbox Features
Here are some features that are important to consider when selecting an agricultural sprayer gearbox:
- Gear Ratio: The gear ratio is the ratio of the number of teeth on the input gear to the number of teeth on the output gear. The gear ratio affects the speed and torque of the sprayer pump. A higher gear ratio will provide more torque, but lower speed, while a lower gear ratio will provide higher speed but less torque.
- Power Rating: The power rating of the gearbox is the maximum amount of power that it can handle without damage. It is important to select a gearbox with a power rating that is appropriate for the power output of the sprayer pump.
- Shaft Size: The gearbox shaft size should match the shaft size of the sprayer pump. A mismatched shaft size can result in reduced efficiency and damage to the gearbox and pump.
- Mounting: Designed for easy and secure mounting onto the sprayer system. This ensures that it stays in place during operation and does not cause any unwanted movement or vibration.
- Sealing: Well-sealed to prevent any contaminants from entering and damaging the internal components. Additionally, proper sealing ensures that the gearbox stays lubricated and does not overheat during operation.
- Durability: The gearbox should be made of high-quality ma
- terials that are resistant to corrosion and wear. This ensures that the gearbox has a long lifespan and does not require frequent maintenance or replacement.
- Compatibility: The gearbox should be compatible with the type of sprayer system being used, such as a tractor-mounted or self-propelled sprayer. It is important to select a gearbox that is designed to work seamlessly with the sprayer system to ensure optimal performance.
Customized Service of Agricultural Gearbox
- Can manufacture the exact products as your requirements according to your drawings or samples
- Exporting our products to many countries, we have advanced technical support with strict quality control.
- Small quantities are acceptable with a fast delivery time.
Our company is an enterprise specializing in manufacturing all kinds of gearboxes, worm gearboxes, chains, and cylinders. We have more than 30 years of experience in this industry. And we have our own design department and testing laboratory. We can produce high-quality products according to your requirements or samples. According to your request, we can accept large orders.
We Also Supply PTO Shafts
The agricultural gearbox and PTO shaft are two tractor components that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connecting with yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a variety of PTO shafts for sale. Contact us now to get more info!
