Angular Gearboxes – Replacement of Comer Code T-281A
Flail mower gearbox T-281A is a type of gearbox designed specifically for flail mowers. It is typically used to transfer power from the tractor’s PTO (power take-off) to the flail mower’s blades. The flail mower gearbox T-281A is built with high-strength steel components and is designed to withstand the demanding conditions of heavy-duty mowing applications. It features durable housing, precision gears, and an oil bath lubrication system to ensure smooth and reliable operation.
Flail Mower Gearboxes – Replacement of Comer Code T-281A 1:2.91
Flail mower gearbox T-281A(Comer T-281A angular gearboxes) is a type of gearbox designed specifically for flail mowers. It is typically used to transfer power from the tractor’s PTO (power take-off) to the flail mower’s blades. The flail mower gearbox T-281A is built with high-strength steel components and is designed to withstand the demanding conditions of heavy-duty mowing applications. It features durable housing, precision gears, and an oil bath lubrication system to ensure smooth and reliable operation.
The flail mower gearbox T-281A is a heavy-duty gearbox designed to handle the demanding conditions of agricultural and industrial applications. Design this gearbox with a 1:2.91 gear ratio, which allows for slower blade speeds and higher torque to handle tough vegetation and uneven terrain. The flail mower gearbox T-281A is also equipped with a shear pin system, which allows for quick and easy replacement in the event of a sudden impact. Overall, the flail mower gearbox T-281A is a robust and reliable component that helps to ensure effective performance in flail mowers.

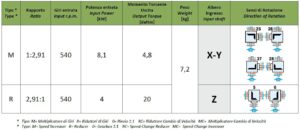

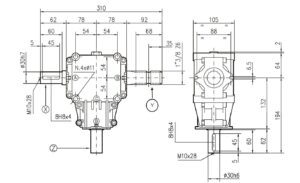

Specifications of Flail Mower Gearbox T-281A (1:2.91)
Specifications of Flail Mower Gearbox T-281A (1:2.91)
| Product Description |
Flail Mower Gearboxes – Replacement of Comer Gearbox T-281A 1:2.91
|
|---|---|
| Product details |
|
| Application range |
|
| Consists of |
|
| Max. output torque |
20 daNm
|
| Contains oil |
No
|
| Max. oil capacity |
0.5 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Aluminium
|
| Weight |
7.2 kg
|
| Gear arrangement Increasing |
25 – 26 – 27 – 28
|
| Gear arrangement Reducing |
5 – 6
|
| Input power kW / HP Increasing |
8.1 / 11 kW/HP
|
| Input shaft Increasing |
X – Y
|
| Input shaft Reducing |
Z
|
| Input power KW / HP Reducing |
4 / 5 kW/HP
|
| Output Torque DaNm Increasing |
4.8 daNm
|
| Ratio Increasing |
1: 2.91
|
| Ratio Reducing |
2.91: 1
|
| Shaft X |
1 3/8″ (6) (A)
|
| Shaft Y |
1 3/8″ (6) (A)
|
| Shaft Z |
1 3/8″ (6) (E)
|
Benefits of Flail Mower Gearbox T-281A (1:2.91)
The flail mower gearbox T-281A offers several benefits that make it a popular option for agricultural and industrial applications. Here are some of the key benefits of this flail mower gearbox:
-
Durability: The flail mower gearbox T-281A is a heavy-duty gearbox that is built to withstand the rigours of tough mowing conditions, making it a durable and long-lasting solution.
-
High Torque: The 1:2.91 gear ratio of the flail mower gearbox T-281A allows for slower blade speeds and higher torque, which is important for cutting through thick vegetation and uneven terrain.
-
Shear Pin Protection: The flail mower gearbox T-281A is equipped with a shear pin system that helps to protect the gearbox and mower from damage in the event of a sudden impact.
-
Easy Replacement: The shear pin system also makes it easy to replace the pin if necessary, allowing for quick and easy maintenance without having to disassemble the flail mower gearbox T-281A.
-
Performance: The flail mower gearbox T-281A is designed to provide efficient and effective cutting performance, ensuring that the flail mower operates at peak performance levels.
Overall, the flail mower gearbox T-281A is a reliable and durable component that helps to ensure efficient and effective performance in flail mowers, making it a popular choice for those in the agricultural and industrial sectors.
