Converyor chains for steel plant

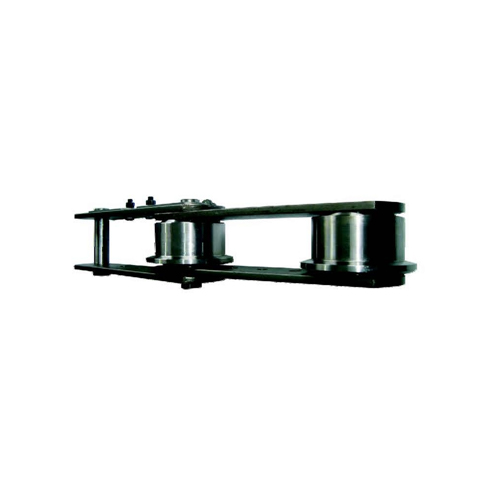

Conveyor chains are vital components in steel mills, crucial for facilitating diverse production tasks. They serve specific purposes such as conveying ore and scrap steel on plate conveyors, managing steel rolling production lines, transporting materials for steel pipe and bar manufacturing, and operating drawing machines. These chains are meticulously designed with optimized structures, using high-quality materials and advanced technologies to ensure they meet stringent industry demands.
Key features include:
- Structural Design: Engineered for robustness to endure heavy loads and harsh environments.
- Material Quality: Typically made from durable materials like high-strength or alloy steel for longevity and reliability.
- Technological Advancements: Incorporation of advanced manufacturing techniques ensures precision and performance.
- Performance Characteristics: They exhibit high temperature resistance, withstand impacts and abrasion, and function reliably in high humidity settings.
Diameter Data
Chain
No. |
Pitch | Roller
diameter |
Width
between inner plates |
Pin
diameter |
Pin
Length |
Plate and attachment dimension | UItlmate tensile strength | Weight
per meter |
||||||
P | d1
max |
d3
max |
b1
min |
d2
max |
L
max |
L’
max |
h2
max |
t/T | A | C | H | Q
min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

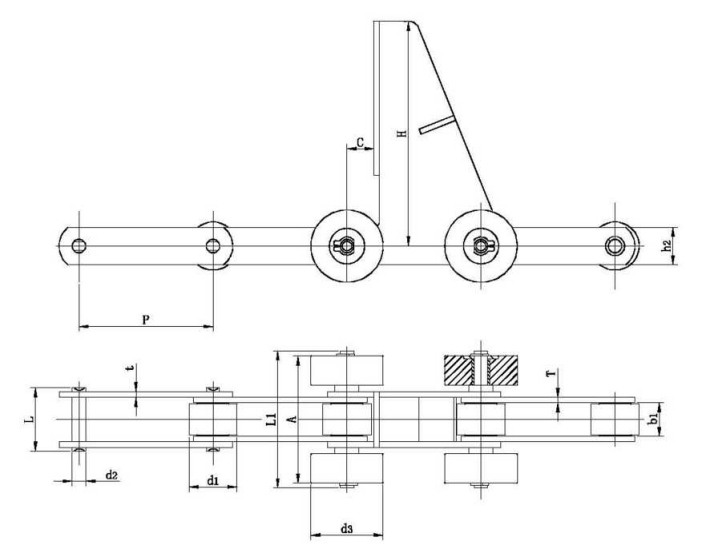

KM P250 | 250.0 | 90.0 | 135.0 | 63.0 | 25.0 | 116.0 | 255.0 | 70.0 | 10.0 | 240.0 | 50.0 | 420.0 | 300.0 | 33.51 |
Chain No. | Pitch | Roller
diameter |
Width between
inner plates |
Pin
diameter |
Pin Length | Plate
depth |
Plate
thickness |
Ultimate tensile strength | Weight
per meter |
|
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
t/T | Q
min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

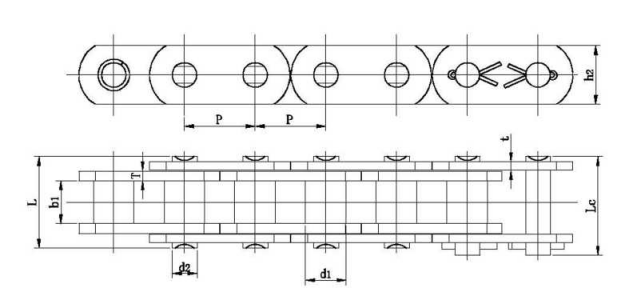

C50.8 | 50.80 | 29.21 | 30.99 | 17.81 | 67.40 | 75.30 | 42.29 | 6.0/7.0 | 120.0 | 10.93 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin
diameter |
Pin
Length |
Plate
depth |
Plate
thickness |
Ultimate
tensile strength |
Weight
per meter |
||
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
H
max |
t/T | Q
min |
q
|
|
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

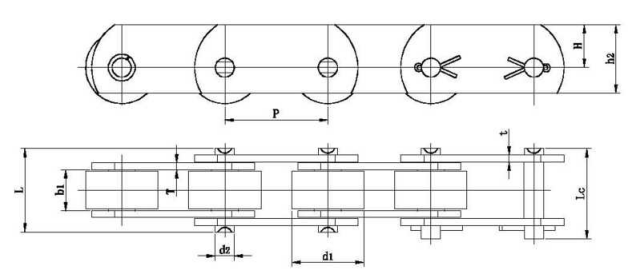

C63 | 63.0 | 42.0 | 24.0 | 11.1 | 50.0 | 59.0 | 40.0 | 25.6 | 4.0 | 50.0 | 7.51 |
C100 | 100.0 | 55.0 | 30.5 | 16.0 | – | 73.0 | 50.0 | 30.0 | 6.0 | 10.0 | 12.31 |
Chain No. | Pitch | Roller diameter | Width between
inner plates |
Pin
diameter |
Pin
Length |
Plate and accessory dimension | Ultimate
tensile strength |
Weight
per meter |
||||
P | d1
max |
b1
min |
d2
max |
L
max |
h2
max |
t/T | M | L1 | L2 | Q
min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

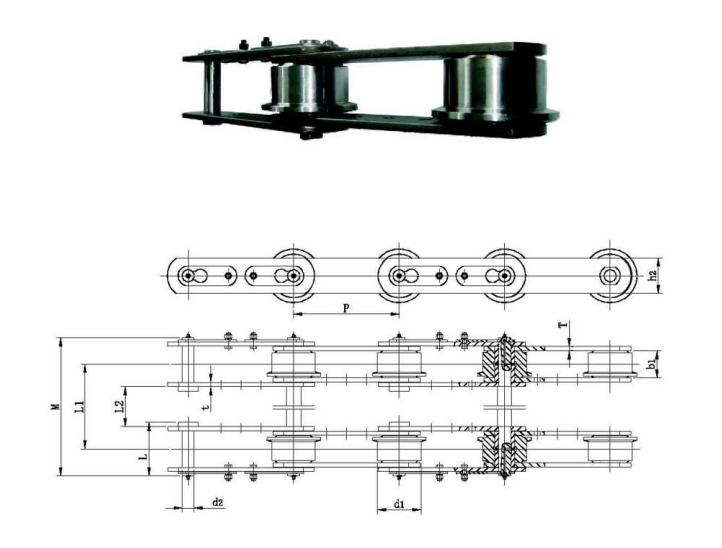

M450a-315 | 315.0 | 130.0 | 82.0 | 36.0 | 161.5 | 105.0 | 12.0 | 1545.0 | 1383.0 | 1250.0 | 450 | 131.6 |
Chain No. | Pitch | Roller
diameter |
Width between Inner plales | Pin
diameter |
Pin
Length |
Plate and attachment dimension | Ultlmate tensile strength | Weight
per meter |
||||||
P | d1
max |
b1
min |
d2
max |
L
max |
h2
max |
t/T | A | B | C | H1 | H | Q
min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

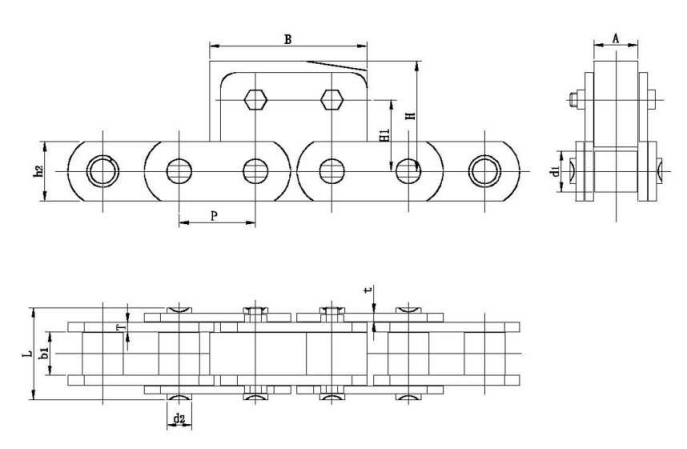

KM P160 | 160.0 | 100.0 | 4B.0 | 25.0 | 101.0 | 72.0 | 10 | 90.0 | 240.0 | 50.0 | 65.0 | 186.0 | 315.0 | 36.4 |
Chain No. | Pitch | Roller
diameter |
Width between Inner plates | Pin
diameter |
Pin
Length |
Plate and accessory dimension | Ultimate tensile strength | Weight
per meter |
|||||
P | d1
max |
b1
min |
d2
max |
L
max |
h2
max |
t/T | A | B | H1 | H | Q
min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

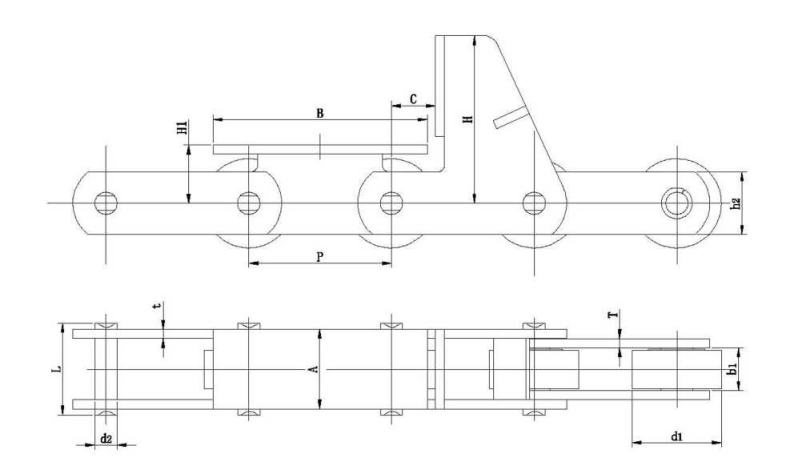

C76.2 | 76.2 | 48.26 | 45.72 | 29.24 | 100.0 | 63.85 | 10/12 | 45.0 | 151.0 | 69.1 | 104.1 | 280.0 | 27.77 |
Chain NO. | Pitch | Roller
diameter |
Width
between Inner plates |
Pin
diameter |
Pin Length | Plate and attachment dimension | Ultimate
tensile strength |
Weight
per meter |
||||
P | d1
max |
d3
max |
b1
min |
d2
max |
L
max |
L’
max |
h2
max |
A | B | Q
min |
q
|
|
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | Kg/m | |

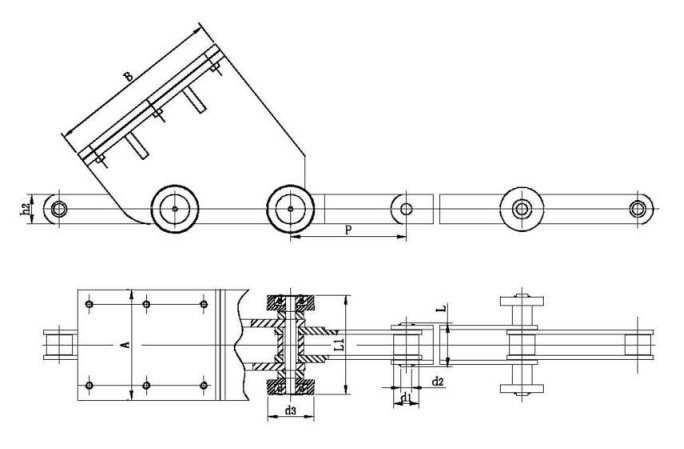

C315 | 315.0 | 70.0 | 125.0 | 56.0 | 30.0 | 122.0 | 273.5 | 80.0 | 300.0 | 480.0 | 450.0 | 23.78 |
