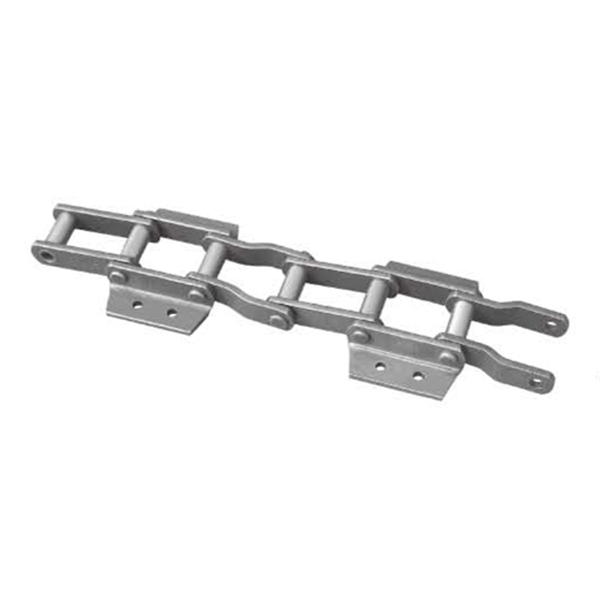

Conveyor chain for metallurgy and mine
Conveyor chain for metallurgy and mine
Advantages
- Strength and durability
- Corrosion resistance
- Low maintenance
- Adaptability
- Versatility
- Reduced downtime
- Cost-effectiveness
Working Principle
Conveyor chains for mine machinery operate on a relatively simple principle, utilizing a continuous loop of chain to transport materials along a fixed path. The chain is driven by a sprocket or gear mechanism, which imparts motion to the chain and the attached attachments. These attachments, such as flights or buckets, carry the material along the conveyor bed.

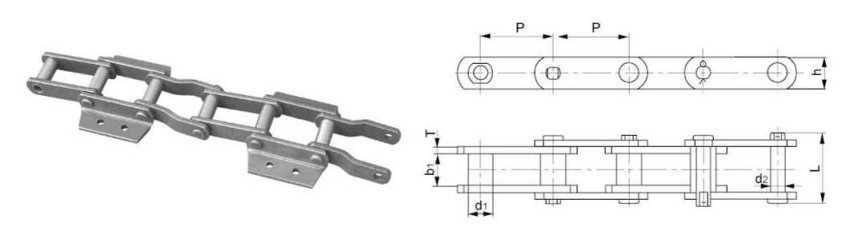

Diameter Data
| Chain
No. |
Pitch
P mm |
Inner Width of
Inner Link b1(min) mm |
Diameter of
Bushing d1(max) mm |
Pin | Sidebar | Tensile Strength
Q(min) KN |
Weigth per
Meter q kg/m |
||
| d2
mm |
L
mm |
h
mm |
T
mm |
||||||
| 102B | 101.6 | 52.85 | 25.4 | 15.88 | 107.8 | 38.1 | 9.5 | 177.9 | 10.9 |
| 150 | 153.67 | 83.6 | 44.5 | 25.27 | 160.2 | 63.5 | 12.7 | 384.5 | 21.8 |
| 110 | 152.4 | 52.85 | 31.75 | 15.88 | 107.8 | 38.1 | 9.5 | 177.8 | 9.3 |
| 111 | 120.9 | 65.6 | 36.6 | 19.05 | 120.0 | 52.3 | 9.5 | 214 | 16.4 |

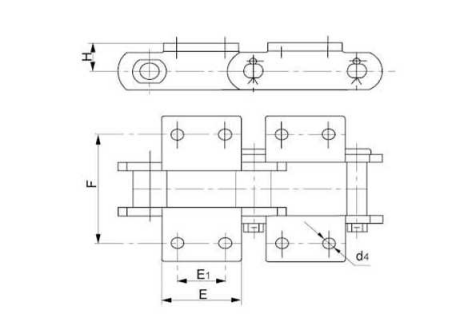

| Chain NO. | F
mm |
H
mm |
E
mm |
E1
mm |
d4(min)
mm |
| 102B | 134.9 | 28.6 | 108 | 44.45 | 10.4 |
| 110 | 134.9 | 28.6 | 88.9 | 44.45 | 10.8 |
| 111 | 158.6 | 38.1 | 132.6 | 58.73 | 14.27 |
| 150 | 190.5 | 47.75 | 108 | 69.8 | 14.27 |
