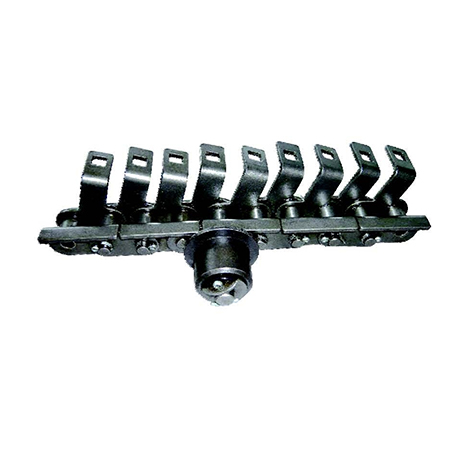

Printer Chain
Diameter Data

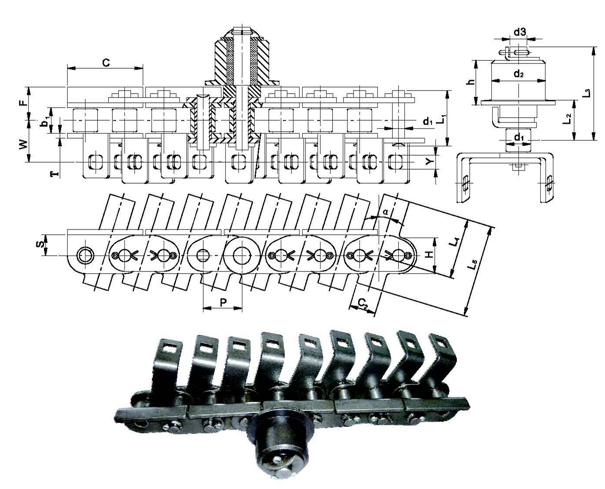

Table 1
Chain
No. |
Pitch | Roller
diameter |
Width between inner plates | Plate thickness | Pin diameter | Pin
length |
Side roller attachment dimension | ||||
P | d1
max |
b1
min |
T | d1
max |
L1 max | d2
max |
h | d3 max | L2 max | L3 max | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
PR80-1LUA-1
-2LiA-0-8LSR |
25.40 | 15.88 | 15.75 | 3.26 | 792 | 35.85 | 35.00 | 29.00 | 11.30 | 25.70 | 60.30 |
Table 2
Cranked plate attachment dimension | U type cranked plate attachment dimension | Tensile strength Q min | Weight per meter
q
|
||||||||
C | S | F | W | C2 | α | L4 | L5 | H | Y | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m |
50.00 | 13.50 | 21.50 | 27.00 | 17.00 | 17° | 39.00 | 60.00 | 23.40 | 9.10×9.10 | 55.60 | 5.33 |
