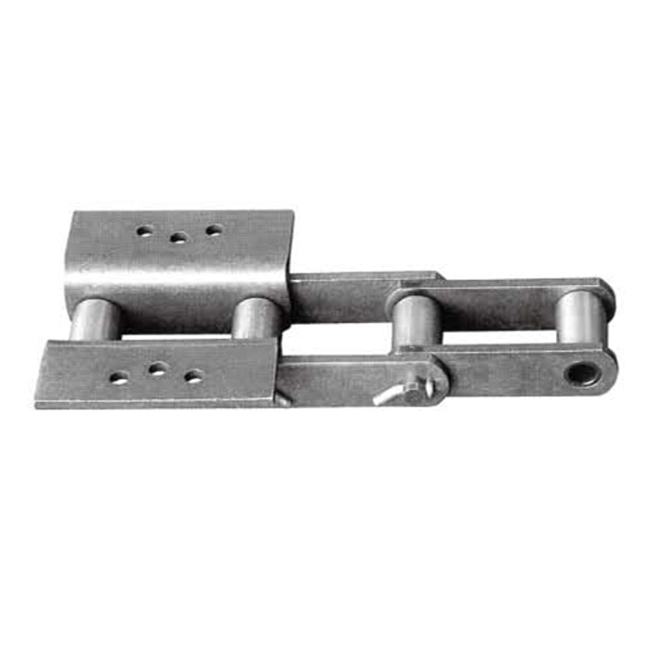

Conveyor chain for sugar mill
Maintenance and Care
- Regular Inspection: To ensure optimal performance, sugar mill chains should be regularly inspected for signs of wear, damage, and misalignment.
- Lubrication: Proper lubrication is crucial for reducing friction and preventing premature wear. Regular lubrication helps maintain smooth operation and extends the chain’s lifespan.
- Replacement: Prompt replacement of worn or damaged chains and components is necessary to avoid production disruptions and maintain operational efficiency.

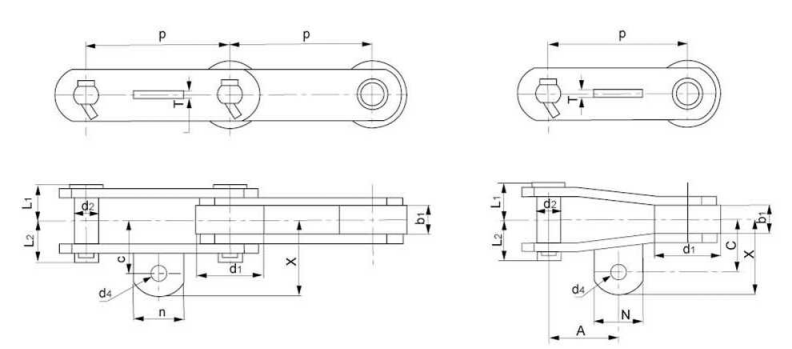

Diameter Data
Chain
No. |
Pitch
P mm |
Inner Width of
Inner Link b1 mm |
Diameter of
Roller d1(max) mm |
Data of Ear-Shaped Attachment | Data of Pin | Tensile Strength
Q(min) KN |
|||||||
A
mm |
C
mm |
X
mm |
N
mm |
d4
mm |
T
mm |
d2
mm |
L1
mm |
L2
mm |
|||||
SMKW0909 | 93.70 | 27.6 | 44.5 | 46.8 | 44.0 | 59.0 | 31.8 | 16.3 | 13.5 | 15.9 | 33.0 | 40.0 | 95 |
SMKW1010 | 101.60 | 32.6 | 50.8 | 50.8 | 50.8 | 64.8 | 35.0 | 11.1 | 10.3 | 12.7 | 37.5 | 42.5 | 100 |
SMKW1510 | 101.60 | 32.6 | 50.8 | 50.8 | 54.0 | 75.0 | 42.0 | 16.3 | 12.7 | 17.5 | 39.0 | 45.0 | 155 |
SMKW1810 | 101.60 | 29.4 | 50.8 | 50.8 | 58.7 | 76.0 | 32.0 | 16.3 | 12.7 | 17.5 | 37.5 | 43.5 | 180 |
SMKW09102 | 102.60 | 37.5 | 50.8 | 50.8 | 60.3 | 80.3 | 49.5 | 16.3 | 13.5 | 17.5 | 38.0 | 45.0 | 95 |
SMKW15152 | 102.60 | 37.6 | 63.5 | 76.2 | 62.0 | 82.0 | 80.0 | 16.3 | 15.0 | 19.1 | 38.5 | 45.5 | 155 |
SMKW20152 | 152.40 | 34.9 | 76.2 | 76.2 | 66.7 | 92.0 | 50.0 | 16.3 | 16.0 | 22.23 | 45.0 | 54.0 | 200 |
SMKW34150 | 152.40 | 34.9 | 76.2 | 76.2 | 66.7 | 92.0 | 50.0 | 16.3 | 16.0 | 22.23 | 45.0 | 54.0 | 340 |
SMKW23152 | 152.40 | 36.5 | 69.9 | 76.2 | 66.7 | 90.0 | 40.0 | 16.3 | 16.0 | 19.1 | 44.5 | 52.0 | 235 |
SMKW31152 | 152.40 | 36.5 | 69.9 | 76.2 | 66.7 | 90.0 | 40.0 | 16.3 | 16.0 | 19.1 | 44.5 | 52.0 | 310 |
SMKW38152 | 152.40 | 36.5 | 69.9 | 76.2 | 66.7 | 90.0 | 40.0 | 16.3 | 16.0 | 19.1 | 44.5 | 52.0 | 385 |
We are a manufacturing company specializing in transmission components, committed to delivering high-quality products and customized solutions. Equipped with advanced manufacturing facilities and a skilled technical team, we cater to diverse needs across various industries. Whether in automotive, mechanical manufacturing, or other industrial sectors, we have earned customer trust through exceptional quality and reliability.
Through continuous innovation and ongoing improvement, we ensure our products remain competitive in the market, providing optimal value and service to our clients.
