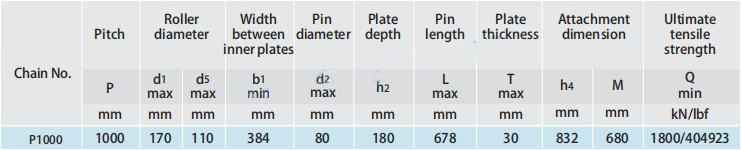

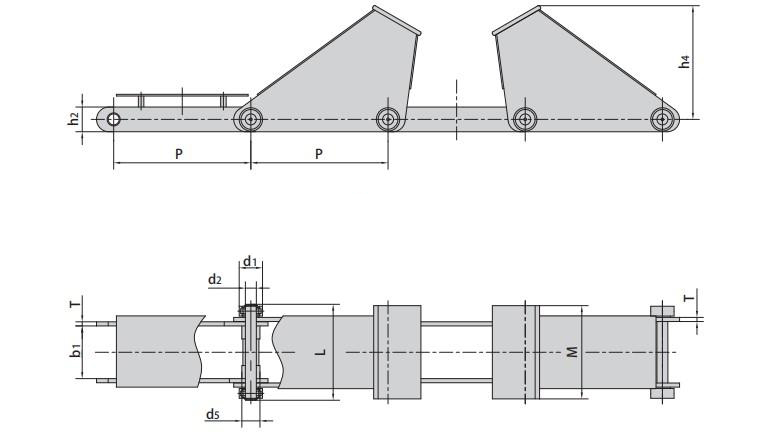

Conveyor Chains for Steel Mill P1000

Conveyor Chains for Steel Mill P1000

Steel mill conveyor chains are used in lumber mills, pulp and plywood mills, bucket elevators, and materials handling applications. It supplies a cost-effective way of conveying products. Determined by the chain type, the chain may be heat or induction hardened to enhance influence power and dress in resistance.
Steel mill chains with totally heat-treated parts present greater operational versatility than cast chains. Its precision welded barrel and offset sidebar permit any variety of exclusive attachments. It’s the best decision for sawmills, paper mills, and forestry applications. This chain has excellent power and longevity and is produced of resilient mild steel.
Different demand solutions are distinct chain kinds. You will find single-strand chains for light-duty transport and double-strand chains for heavy-duty transport. Two strands of chain can move as much as 80,000 lbs. Conveyor chains in steel mills are utilized to transport metal scrap, steel and steel pipes, and steel plates. Steel mill conveyors may also take care of aluminum, steel components, and castings, together with other supplies. Their weight limit depends on the surface location conveyed, the motor power rating, and the conveyor support structure.

We use a well-established heat treatment process to give our chains the strength, wear life, and dimensional accuracy to withstand severe impact and wear from sawdust, ash, and sawdust.

• Heat-treated pins are available as standard for increased strength and wear life in the toughest applications.
• Pins are press fit to side rods to eliminate pin bore wear:
• Precision pinhole punches and machine welded barrels ensure high quality and dimensional control.

Our chains and sprockets are used, for example, in the following areas:

• Stockyard technology for coal and ore
• Sintering plants
• Blast furnace applications
• Steelwork applications
• Continuous casting applications
• Rolling mill applications
• Transport and strip accumulator chains for refinement lines in the hot and cold area

Select Conveyor Chain Sprockets

Conveyor sprockets are mechanical parts that help the chain move forward. There are different types of sprockets, including top and bottom split sprockets, so that they can be removed from the axle. They are designed for high-wear applications and can be equipped with multiple sprockets on a single axle.
When choosing a conveyor chain sprocket, it is essential to know the specifications of the chain and sprockets. Different types of chains have different pitches, and sprockets can be selected according to these parameters. In addition to the pitch, you should consider the number of teeth on the sprocket. The number of teeth determines the speed ratio. For example, a 50-tooth drive sprocket will result in a 2:1 reduction in speed.
When choosing a conveyor chain sprocket, ensure the pitch and size are compatible. Different chains can use different sprockets, so be sure to choose the right sprocket for your application. Sprockets should be made of metal compatible with the chain material.
Another essential feature of a conveyor chain sprocket is its resistance to clogging. Anti-clogging sprockets can greatly extend the life of the chain. These sprockets prevent loose material from getting caught between the rollers and bushings of the conveyor chain, preventing it from clogging. The material conveyed by the conveyor chain can be hard or abrasive, so it is critical that the sprocket has the ability to resist this material.

Sprockets for Steel Mill Conveyor Chain

When obtaining sprockets for the steel mill conveyor chain, think about some key factors to aid you make an informed choice. Very first, you wish to understand how the sprockets fit your chain. One example is, are they wobbly or tight? In that case, the material of your sprocket desires to become thought of. Some sprockets have bosses on each side of the wheel; other people only have bosses on one side. Also, you could possibly wish to take into account FB metric sprockets created from specially selected premium materials. Also, FB metric sprockets can be found with flame-hardened or induction-hardened teeth.
Further key consideration will be the type of materials on the chain. Some elements are abrasive and may possibly enhance sprocket wear. As a result, sprockets of wear-resistant materials need to be selected cautiously. You’ll also want to select sprockets with anti-clogging properties. Also, if you are using a steel mill conveyor chain, be sure it truly is tough, high-quality steel. A well-made steel mill chain is surely a superb decision for harsh problems, this kind of as sawmills or debarking drums.
A further point to remember is that the kind of chain you purchase will be right connected to the application. Should you be seeking any chain for conveying abrasive materials, you will need to purchase a welded steel mill chain. Welded steel mill chains are generally applied within the pulp/paper industry. The chain also provides an assortment of attachments for diverse purposes.

One-stop Supplier of Chain Transmission Products

Related sprockets

Properly installed sprockets can increase the efficiency of a chain-driven motion system. They can also carry heavy loads, making them essential to many chain-driven motion systems. Proper selection of sprockets is essential to ensure proper operation and prevent damage to the machine. When selecting a sprocket, consider your system’s size and type of fit.
Sprocket life varies widely, depending on several factors, including riding style and conditions, chain pitch and size, and maintenance regime. Typically, a brand new steel sprocket’s lifespan is less than 5,000 km. For longer life, consider using a sprocket with “hardened teeth.” Hardened teeth can triple the life of the sprocket.
A sprocket is a toothed wheel that meshes with a chain as it rotates. They are different from gears because they do not mesh directly. Sprockets are used in everything from disposable cameras to professional bicycles. Besides bicycles, they are also used in various motor vehicles.
