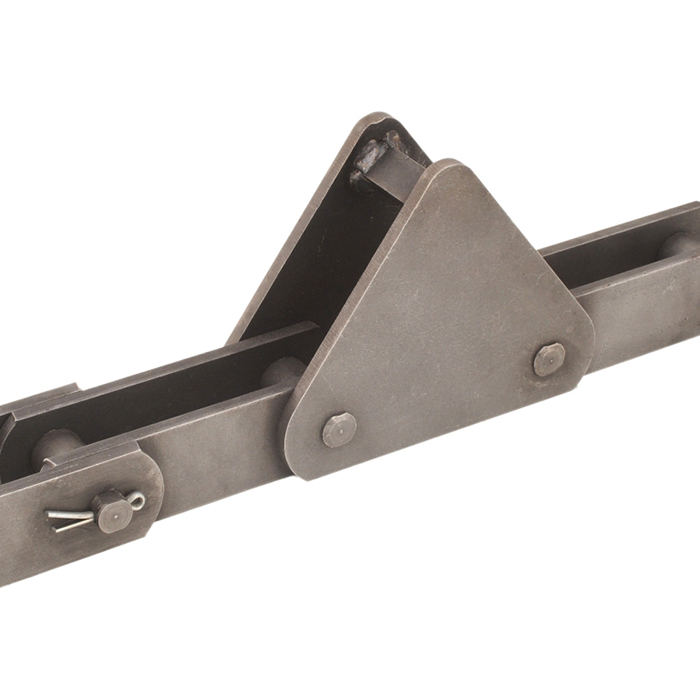

Conveyor chains with attachments (Z series)
Dimensional parameters (Z series attachments chain)
链号
Chain No. |
P | L | G | d | d4 | F | W | h4 | ||
mm | mm | mm | mm | mm | mm | mm | mm | |||
△ | 50.8 | – | 45.0 | 64.5 | ||||||
△ | ☆ | 63.5 | 22.2 | 43.0 | 56.0 | |||||
△ | ☆ | 76.2 | 68.0 | |||||||
Z40 | ▲ | 88.9 | 31.8 | 50.0 | 10.7 | 9.3 | 38.1 | 56.0 | 19.0 | |
▲ | 101.6 | 64.0 | 55.0 | |||||||
▲ | 127.0 | 57.2 | 84.0 | 56.0 | ||||||
▲ | 152.4 | |||||||||
△ | 76.2 | 30.0 | ||||||||
△ | 88.9 | |||||||||
▲ | 101.6 | 31.8 | 64.0 | |||||||
Z100 | △ | ☆ | 127.0 | 57.2 | 84.0 | 14.0 | 10.5 | 44.5 | 65.0 | 32.0 |
▲ | 152.4 | 114.5 | ||||||||
△ | ☆ | 177.8 | 80.0 | 110.0 | ||||||
△ | ☆ | 203.2 | ||||||||
△ | 101.6 | – | 35.0 | |||||||
△ | ☆ | 127.0 | 31.7 | 56.0 | ||||||
△ | ☆ | 152.4 | 57.2 | 84.0 | ||||||
Z160 | △ | ☆ | 177.8 | 15.5 | 12.3 | 54.0 | 77.0 | 38.0 | ||
△ | ☆ | 203.2 | 100.0 | 130.0 | ||||||
△ | ☆ | 228.6 | 150.0 | |||||||
△ | ☆ | 254.0 | 135.0 | 170.0 | ||||||
△ | 152.4 | 38.1 | 70.0 | |||||||
△ | 177.8 | |||||||||
Z300 | △ | ☆ | 203.2 | 76.2 | 100.0 | 17.0 | 14.0 | 73.0 | 100.0 | 51.0 |
△ | ☆ | 254.0 | 90.0 | 152.4 | ||||||
△ | ☆ | 304.8 | 190.0 | 225.0 |
△ attachments with 1 hole ☆attachments with 2 holes ▲ attachments with 3 holes
Z series attachments chain
