Conveyor Chains with Outboard Rollers 40S40-PSR50-SR-C60S80S80S-C

Outboard roller chain construction makes for a highly compact conveyor. The ability to flex backward adds to this by allowing an easy layout on the return side to save space. Since a large number of rollers can be installed, a conveyor can be easily made where small objects are placed directly with no pallet.

Description

Conveyor Chains with Outboard Rollers

Outboard Roller Chains are used in many industries for free flow conveyance. These chains are commonly used in auto parts and electronic equipment. Depending on the chain configuration, they can be made of various materials, including stainless steel and carbon steel. This type of chain can be installed with large or small rollers, depending on the needs of the particular application.
Chain conveyor systems have been used for decades and are often the most preferred method for moving heavy objects. These systems use single and double pitch chains that leverage friction to move the product.

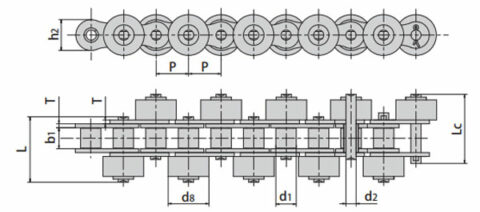

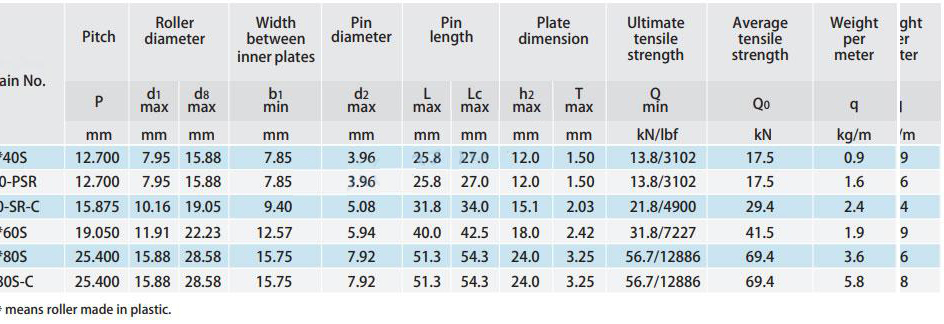

Dimensions of Conveyor Chains with Outboard Rollers

Choosing Sprockets For Outboard Roller Chains

The proper sprockets for outboard roller chains are critical components for a properly functioning chain. These products can increase the productivity of your chain in all types of applications and are available in a wide variety of sizes and types. When choosing a sprocket, you should determine how much power your chain can handle and how much tension it will have.
The ANSI standards can define dimensions and design for roller chain transmissions. The Japanese and Korean industries use JIS standards, but the sprockets produced by these countries are not interchangeable. It is essential to contact the manufacturers to learn more about the compatibility of the various sprockets. ANSI sprockets are conceptually simple mechanical devices yet highly versatile.
When choosing sprockets for outboard roller chains, make sure that you know the diameter of the drive shaft. Regardless of the specific size and type of sprocket, it is vital to know the proper size and pitch for the system to function properly.
As a mature supplier of chains and sprockets in China, Power-trans also provides highly durable sprockets for sale. Contact us now!

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets

Related Chains

As one of the drive chain manufacturers, we specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

Engineering Chain	Conveyor Chain	Leaf Chain	Drive Chain	Agricultural Chains

Production Workshop of Power-trans Chains
