Conveyor Chains with Outboard Rollers C2000 Series

The outboard roller chain construction creates a compact conveyor. This conveyor can flex backwards, which allows for easy layout on its return side. A conveyor can easily be made with small items without the need for a pallet, thanks to its large number of possible rollers.

Description

C2000 Series Conveyor Chains with Outboard Rollers

Many industries use outboard roller chains (C2000 Series) for free-flow conveyance. These chains are working in electronic equipment and auto parts. They can be made from various materials depending on their configuration, including stainless steel or carbon steel. Depending on the application, this type of chain can be fitted with large or small rolling bearings.
Chain conveyor systems are a proven method of moving heavy objects. They have been around for many decades. These conveyors use single- and double-pitch chains to move products.

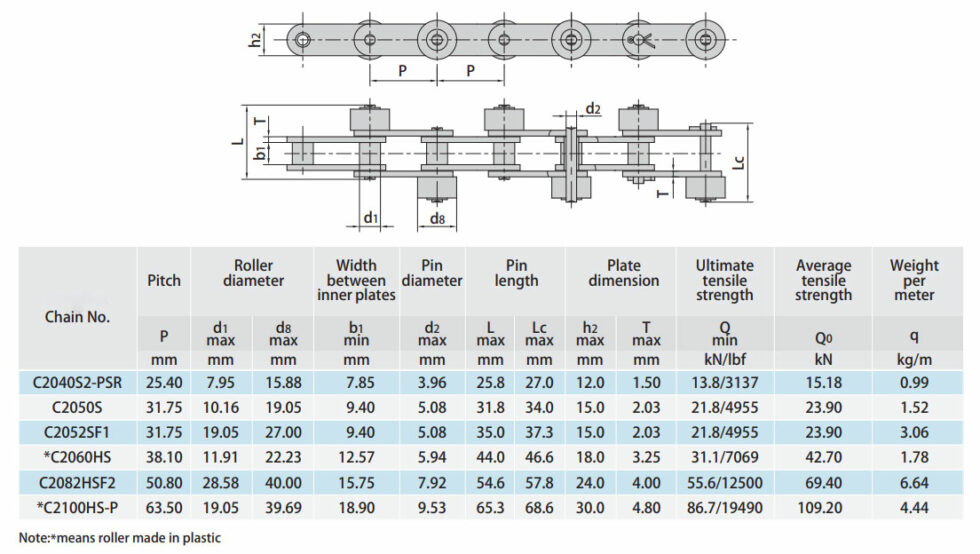

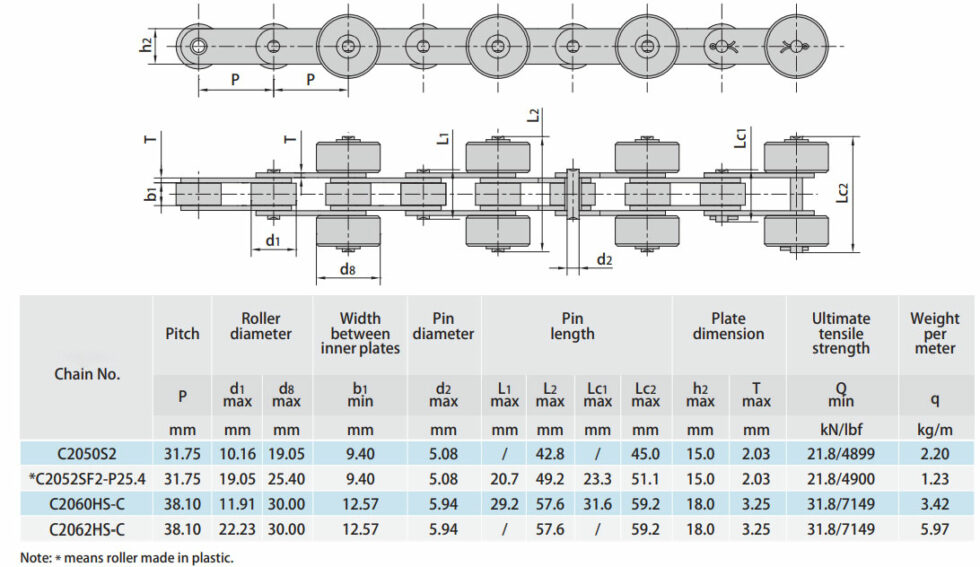

Dimensions of C2000 Series Conveyor Chains with Outboard Rollers

C2000 Series Conveyor Chains C2000 Series Conveyor Chains

Choosing Sprockets For Outboard Roller Chains

The proper sprockets for outboard roller chains are critical components for a properly functioning chain. These products can increase the productivity of your chain in all types of applications and are available in a wide variety of sizes and types. When choosing a sprocket, you should determine how much power your chain can handle and how much tension it will have.
The ANSI standards are used to define dimensions and design for roller chain transmissions. The Japanese and Korean industries use JIS standards, but the sprockets produced by these countries are not interchangeable. It is essential to contact the manufacturers to learn more about the compatibility of the various sprockets. ANSI sprockets are conceptually simple mechanical devices yet highly versatile.
The sprockets’ applications in outboard motors can be made of several different materials. The materials: cast iron, aluminum, bronze, or steel. In addition to these materials, sprockets can also be made from nylon.
When choosing sprockets for outboard roller chains, make sure that you know the diameter of the drive shaft. Some sprockets  with larger teeth than others, and some may have smaller teeth than others. Regardless of the specific size and type of sprocket, it is vital to know the proper size and pitch for the system to function properly.
As a mature supplier of chains and sprockets in China, Power-trans also provides highly durable sprockets for sale. Contact us now!

Agricultural Sprockets Cast iron sprockets Conveyor sprockets Double pitch sprockets
Finished bore sprocket Idler sprockets QD sprocket Plastic Sprockets
Plate wheel sprockets Steel Sprockets Welded steel chain sprockets Specialty Sprockets
