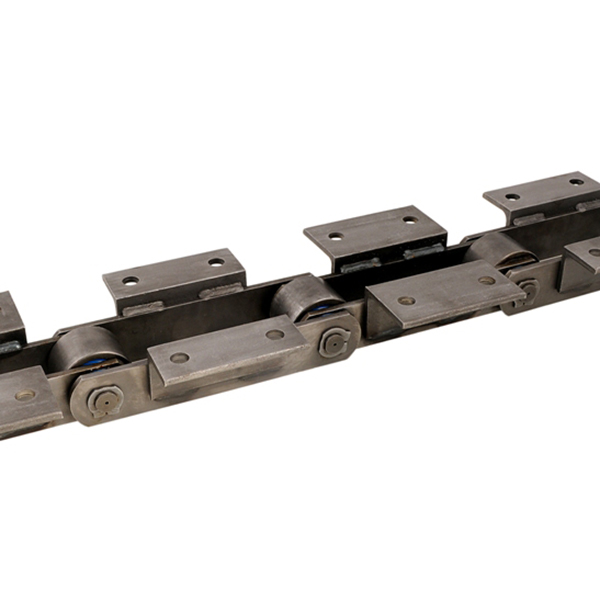

Conveyor chains (Z series)
Conveyor chains (Z series) is the type of chain drive most commonly used for transmission of mechanical power on many kinds of domestic, industrial and agricultural machinery, including conveyors, wire- and tube-drawing machines, printing presses, cars, motorcycles, and bicycles.

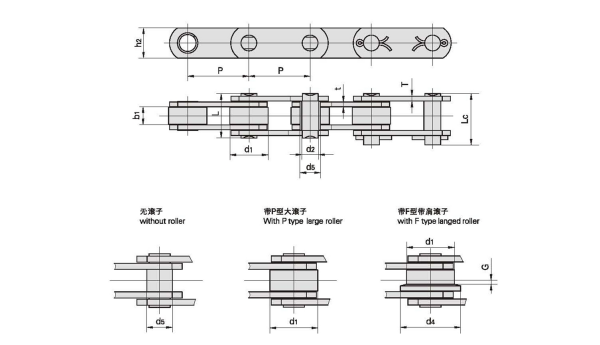

Dimensional parameters
Chain No. |
Pitch |
Roller dimension | Bush
diameter |
||||||||
p | d1
max |
d4
max |
G | d5
max |
|||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
Z40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 40.0 | 2.5 | 17.0 |
Z100 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 60.0 | 3.5 | 23.0 |
Z160 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 82.0 | 3.5 | 33.0 |
Z300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | 88.90 | 114.0 | 8.5 | 38.0 |
Chain No. |
Width between inner plates | Pin
diameter |
Plate depth |
Pin length |
Plate thickness |
Breaking load | ||
b1
min |
d2
max |
h2
min |
L
max |
Lc
max |
t/T
max |
Q
min |
*Q
min |
|
mm | mm | mm | mm | mm | mm | kN | kN | |
Z40 | 15.0 | 14.0 | 25.0 | 37.0 | 40.5 | 4.0 | 40.0 | 50.0 |
Z100 | 19.0 | 19.0 | 40.0 | 45.0 | 50.5 | 5.0/4.0 | 100.0 | 130.0 |
Z160 | 26.0 | 26.9 | 50.0 | 58.0 | 63.5 | 7.0/5.0 | 156.0 | 200.0 |
Z300 | 38.0 | 32.0 | 60.0 | 84.0 | 94.0 | 10.0/8.0 | 300.0 | 380.0 |
*Q Higher breaking load with hardened plates
