Conveyor chains ZC series

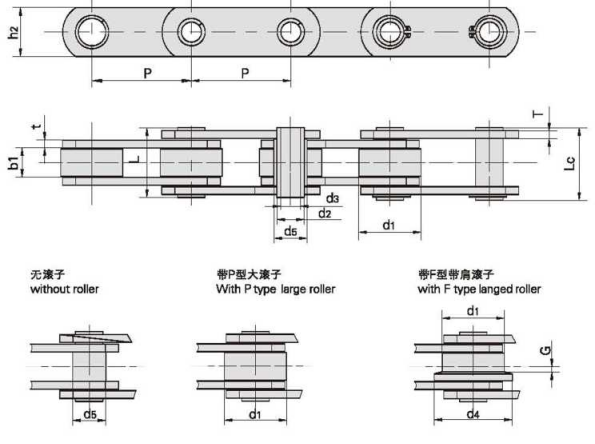

Dimensional parameters
conveyor chains ZC series
Chain No. | Pitch | Roller dimension | Bush diameter |
Plate depth |
||||||||
P | d1
max |
d4
max |
G | d5
max |
h2
max |
|||||||
mm | mm | mm | mm | mm | mm | |||||||
ZC21 | 38.1 | 50.8 | 63.5 | 76.2 | 25.40 | 11.0 | 18.0 | |||||
ZC40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 40.0 | 2.5 | 17.0 | 25.0 |
ZC60 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 60.0 | 3.5 | 23.0 | 40.0 |
ZC150 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 82.0 | 4.0 | 33.0 | 50.0 |
ZC300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | 88.90 | 114.0 | 8.5 | 38.0 | 60.0 |
Width between inner plates | Pin
diameter |
Pin length |
Plate thickness |
Breaking load | ||||
b1 | d2 | d3 | L | Lc | t/T | Q | *Q | |
Chain No. | min | max | min | max | max | max | min | min |
mm | mm | mm | mm | mm | mm | kN | kN | |
ZC21 | 12.7 | 9.0 | 6.5 | 26.0 | 27.5 | 2.5 | 21.0 | |
ZC40 | 15.0 | 14.0 | 10.2 | 36.4 | 37.7 | 4.0 | 40.0 | 50.0 |
ZC60 | 19.0 | 19.0 | 13.2 | 45.0 | 46.0 | 5.0/4.0 | 60.0 | 120.0 |
ZC150 | 26.0 | 26.9 | 20.2 | 58.0 | 60.5 | 7.0/5.0 | 150.0 | 190.0 |
ZC300 | 38.0 | 32.0 | 22.5 | 83.0 | 85.0 | 10.0/8.0 | 300.0 | 380.0 |
*Q Higher breaking load with hardened plates
