conveyor chains(ZE series)
Adapted to:
- roller chains based on the requirements of ANSI B29.1
- Roller chain components are shot peened for greater fatigue resistance
- available with single strand roller chain,double strand roller chain,triple strand roller chain,four strand roller chain
- material used for roller chain 40mn
- heat treatment and special surface treatments are available on request

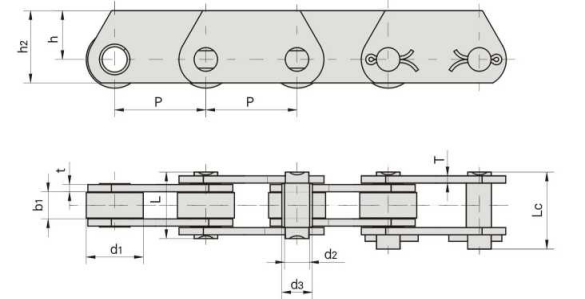

Dimensional parameters
Chain No. | Pitch | Roller diameter | Pin
diameter |
Bush diameter | ||||||
P | d1
max |
d2
max |
d3
max |
|||||||
mm | mm | mm | mm | |||||||
ZE40 | 50.8 | 63.5 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 31.75 | 14.0 | 17.0 |
ZE100 | 76.2 | 88.9 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 47.50 | 19.0 | 23.0 |
ZE160 | 101.6 | 127.0 | 152.4 | 177.8 | 203.2 | 228.6 | 254.0 | 66.70 | 26.9 | 33.0 |
ZE300 | 152.4 | 177.8 | 203.2 | 254.0 | 304.8 | 88.90 | 32.0 | 38.0 |
Chain No. | Width between inner plates | Pin length | Plate depth | Plate thickness | Breaking load | |||
b1
min |
L
max |
Lc
max |
h2
max |
h
max |
t/T
max |
Q
min |
*Q
min |
|
mm | mm | mm | mm | mm | mm | kN | kN | |
ZE40 | 15.0 | 37.0 | 40.5 | 40.0 | 27.0 | 4.0 | 40.0 | 60.0 |
ZE100 | 19.0 | 45.0 | 50.5 | 50.0 | 30.0 | 5.0/4.0 | 100.0 | 160.0 |
ZE160 | 26.0 | 58.0 | 63.5 | 70.0 | 45.0 | 7.0/5.0 | 160.0 | 200.0 |
ZE300 | 38.0 | 84.0 | 94.0 | 90.0 | 60.0 | 10.0/8.0 | 300.0 | 380.0 |
*Q Higher breaking load with hardened plates
