Corn Header Gearbox – Replacement of Comer Code N669-J
A corn header gearbox is a vital component of a combine harvester used for harvesting corn. It is responsible for transferring power from the main drive system to the corn header, allowing the harvesting of corn to be more efficient. The gearbox’s design and durability play a critical role in the performance and longevity of the corn header.
Corn Header Gearbox – Replacement of Comer Code N669-J
A corn header gearbox is a vital component of a combine harvester used for harvesting corn. It is responsible for transferring power from the main drive system to the corn header, allowing the harvesting of corn to be more efficient. The gearbox’s design and durability play a critical role in the performance and longevity of the corn header.
Details of Corn Header Gearbox
| Product name: | Corn header gearbox |
| Gearing Arrangement: | Bevel / Miter |
| Output Torque: | as drawing |
| Input Speed: | 1000rpm |
| Output Speed: | as drawing |
| Color: | Customer Requests |
| Weight: | 82kg |
| Chain wheel ratio: | 1.91:1 |
| Stalk pulled roller ratio: | 1:1.2 |
| Noise: | Less than 92db at 1-meter distance in front of the gearbox |
| Application: | Corn harvester |
| Place of Origin: | China |

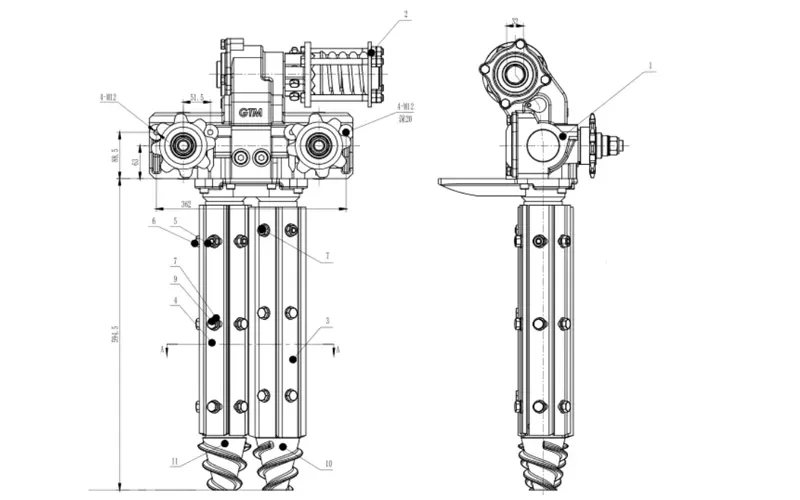

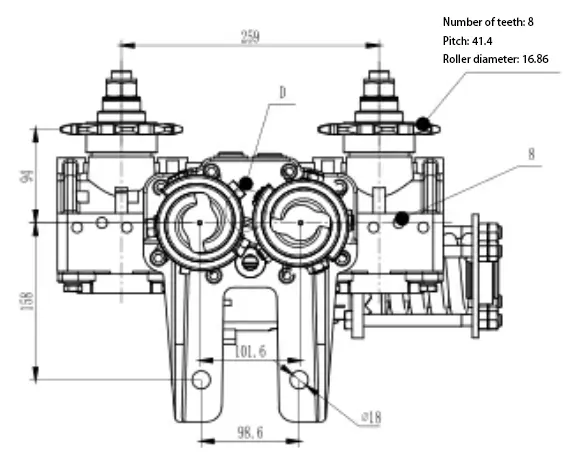

Specifications of Corn Header Gearbox
Main Features
Main Features- 1）Safe, reliable, economical, and durable
- 2) Smooth transmission and quiet operation
- 3) Custom production gearboxes for corn harvesters with various input power and transmission ratios are available
- 4) China famous brand —— 2 years warranty for correct operation and long-term after-sales service
- 5) Professional QC department and testing equipment, good control of size and backlash, and noise.
- 6) Skilled design department. Can produce gearbox drawings according to customer requirements.
We are a professional gearbox manufacturing company in China. Our agricultural gearboxes have been exported to the USA, Canada, Australia, Thailand, and other countries.
Corn header gearboxes are used for corn harvesters, and we can also provide custom production gearboxes for corn harvesters with various input power and transmission ratios.

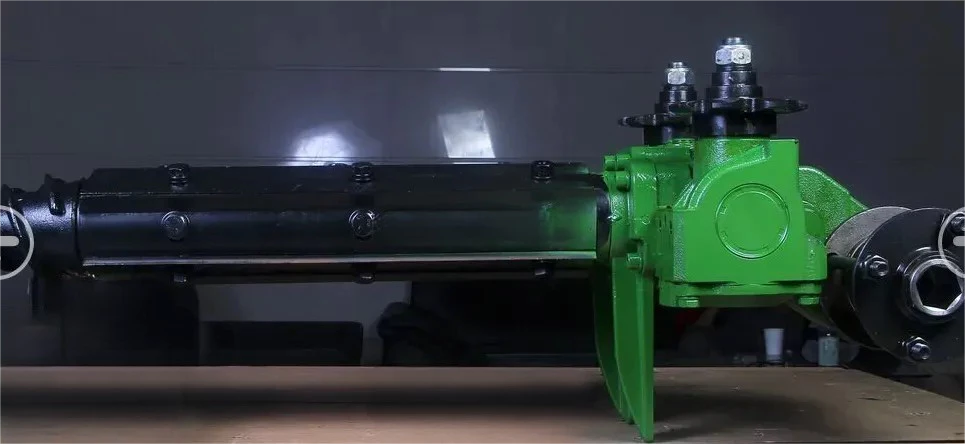

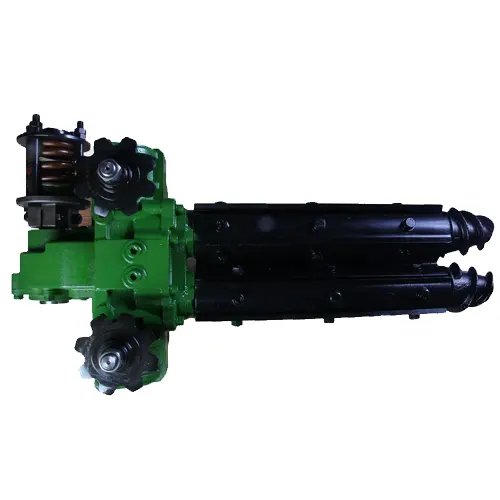

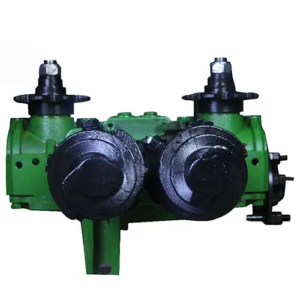

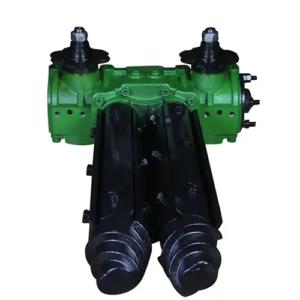

Corn Header Gearbox Display
 |
 |
Buy PTO Shafts for Agricultural Gearboxes
Agricultural equipment such as tractors, combines, and harvesters use PTO shafts. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant shaft compression can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of an agricultural implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end by using a universal joint, while the rear shaft can be welded directly to the tractor. We also provide PTO Shafts for sale. Feel free to contact us if you are interested.
Packing Shipping Delivery
  |
 |
|
 |
 |
|
How to choose power transmissions parts and industrial products which meet our requirement
| Chains | Sprockets | Pulleys | Timing belt Pulley | V-belt Pulley |
| Sheaves | Coupings | Bush &Hub | Gear& Rack | V-Belt |
| Locking Assembly | Pulley | Gearbox | Reducer | Shaft Collar |
| Rod End Bearing | Clevis | PTO | Chain Guide | Belt Guide |
| Rubber Buffer | Chain Tensioner | PTO Drive Shafts | Universal Joints | Roller Chains |
| Conveyor Chains | V-Belts | Worm Gearbox | Helical Gear | Worm |
| Agricultural Chain | CNC Proces Parts | Casting | Stamping | |
| Powder Metallurgy | CNC Proces Parts | Casting | Stamping |
What Products Do you sell ?
We are a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
Can you give me discount on Power Transmissions Parts and Industrial parts?
-Yes, of course. Pls. send me your Email, you'll get more
Q: Are You a trading company or a manufacturer?
A: We Are the factory and have our Own trading company
Q: How Can I get an offer?
A: please send US quotation information: drawings, materials, weight, quantity and requirements, we can accept PDF, ISGS, DWG, STEP file format. If you don't have the drawings, please send us the samples, we can also quote you according to your samples.
Q: What is your minimum order size?
A: it is usually 100 pieces, but a low quantity is acceptable under some special circumstances.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't pay the freight.
Q: What is the lead time for mass production?
A: honestly, it depends on the number of orders. Normally, if you don't need the tools, deposit them after 30 days or so.
Q: What if the parts don't Work?
A: we can guarantee the quality, but if it happens, please contact us immediately, take some photos, we will check the problem and solve it as soon as possible.
Q: What are your terms of payment?
A: payment is less than US $1000,100% in advance. Payment: $1000,50% wire transfer in advance, balance before shipment,Other Terms of payment are negotiable
