Coupling chains

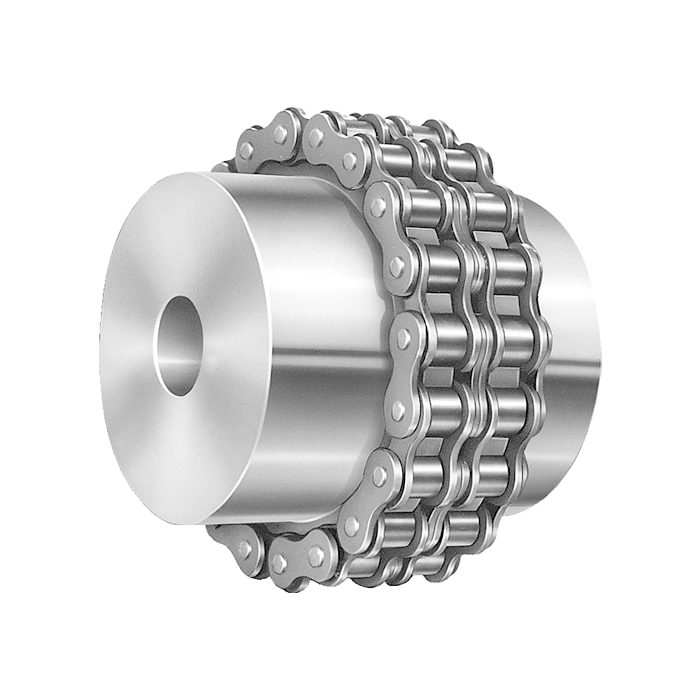

Double Roller Chain Flexible Shaft Coupling Sprockets in Hardened Steel with Stock Bore for re-boring, to 5″ maximum bore in a variety of sizes from – No. 40 through No. 120 chain.
All components required for a complete coupling are stocked, including chains and covers.

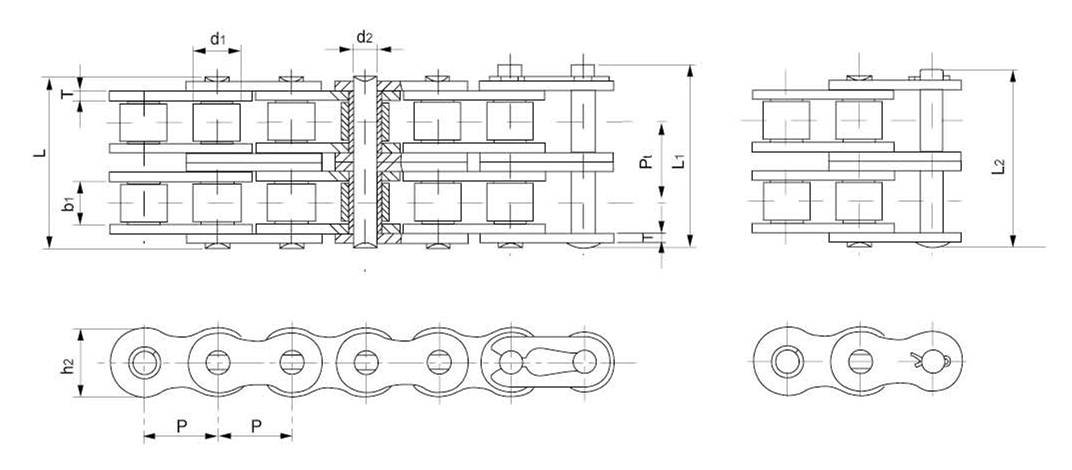

Dimensional parameters
Listed maximum bore is with setscrew at angle to keyway.
链号 | 节距 | 滚子直径 | 内节内宽 | 销轴直径 | 销轴长度 | 内链板高度 | 排距 | 链板厚度 | 抗拉强度 | |
Chain | Pitch | Diameter | Inner Width | Diameter | Length | Height of | Row | Thickness | Tensile | |
No. | of | of | of | of | Inner | Distance | of | Strength | ||
Roller | Inner Link | Pin | Pin | Sidebar | Sidebar | |||||
P | d1(max) | b1(min) | d2(max) | L(max) | L2(max) | h2(max) | Pt | T | Q(min) | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
6018 | ||||||||||
6020 | 19.05 | 11.91 | 12.57 | 5.94 | 48.80 | 52.50 | 18.80 | 22.78 | 2.4 | 62.30 |
6022 | ||||||||||
8018 | ||||||||||
8020 | 25.40 | 15.88 | 15.75 | 7.92 | 62.70 | 67.10 | 24.31 | 29.29 | 3.26 | 111.20 |
8022 | ||||||||||
10020 | 31.750 | 19.05 | 18.90 | 9.52 | 76.40 | 80.50 | 30.18 | 35.76 | 4.00 | 173.50 |
10022 | ||||||||||
12018 | 38.100 | 22.23 | 25.22 | 11.10 | 96.30 | 101.60 | 36.20 | 45.44 | 4.80 | 249.10 |
