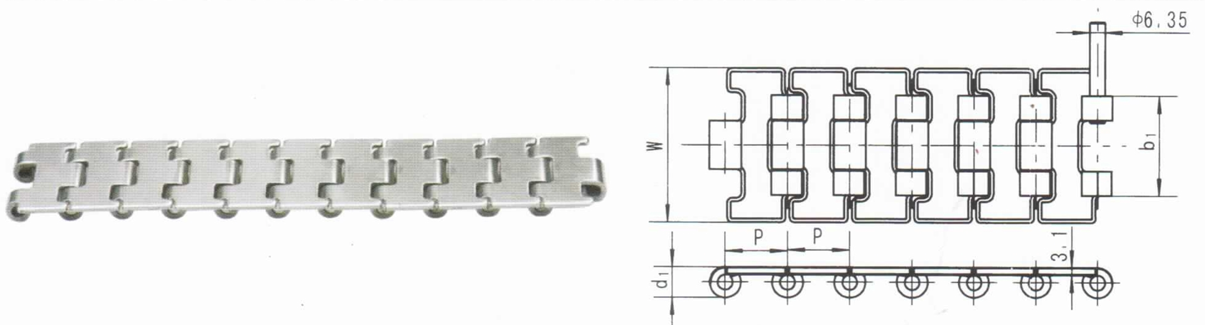

CS series flat top conveyor chains
Flat-top and slat-top conveyor chains are essential equipment used in the automotive industry for assembly, machining or paint finishing, and water testing or cleaning applications. They are typically constructed with welded (flat-top) or bolted (slat-top) flat steel top plates, designed with optimized top plate surfaces to provide excellent floor-level conveying. To reduce rolling friction, these conveyor chains are equipped with outboard rollers fitted with bearings.
These chains offer high customization, allowing them to be designed according to specific application needs, ensuring reliable and efficient transportation solutions throughout various stages of automotive manufacturing. With optimized design and material selection, flat-top and slat-top conveyor chains can meet the complex demands of production, thereby ensuring smooth operation of production lines and maximizing productivity.
Diameter Data
Pitch | plate
width W mm |
Pin dia
d1(max) mm |
Width over fixed curls B1 mm | Weight
per meter q Kg/m |
Ultimate tensile strength | Rated working load | |||
Chain
No. |
mm | lCrl8Ni9
(min) KN |
lCrl3
2Crl3 (min) KN |
lCrl8Ni9
(max) KN |
lCrl3
2Crl3 (max) KN |
||||
25.4-CS54 | 54.5 | 42 | 2.26 | ||||||
25.4-CS63 | 63 | 40.5 | 2.55 | ||||||
25.4-CS71 | 71.5 | 2.79 | |||||||
25.4-CS75 | 25.4 | 75 | 2.87 | ||||||
25.4-CS82 | 82 | 2.94 | |||||||
25.4-CS88 | 88 | 13.13 | 3.08 | 8 | 6.25 | 3.2 | 2.5 | ||
25.4-CS98 | 98 | 42 | 3.30 | ||||||
36-CS80 | 36 | 80 | 2.58 | ||||||
36-CS90 | 90 | 2.79 | |||||||
38.1-CS53 | 38.1 | 53 | 2.04 | ||||||
38.1-CS65 | 65 | 2.32 |
