Customized Cast Iron Stainless Steel High Precision Timing Belt Pulley A/B/D/E/F/K Shape

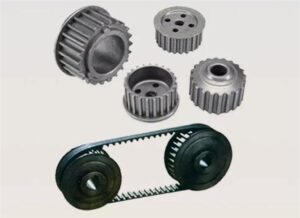

The High Precision Timing Belt Pulley is a low-speed and high-torque transmission part that combines the advantages of belt drive, chain drive, and gear drive. It has the advantages of high efficiency, small size, less maintenance, no pollution, and a small load on the shaft.

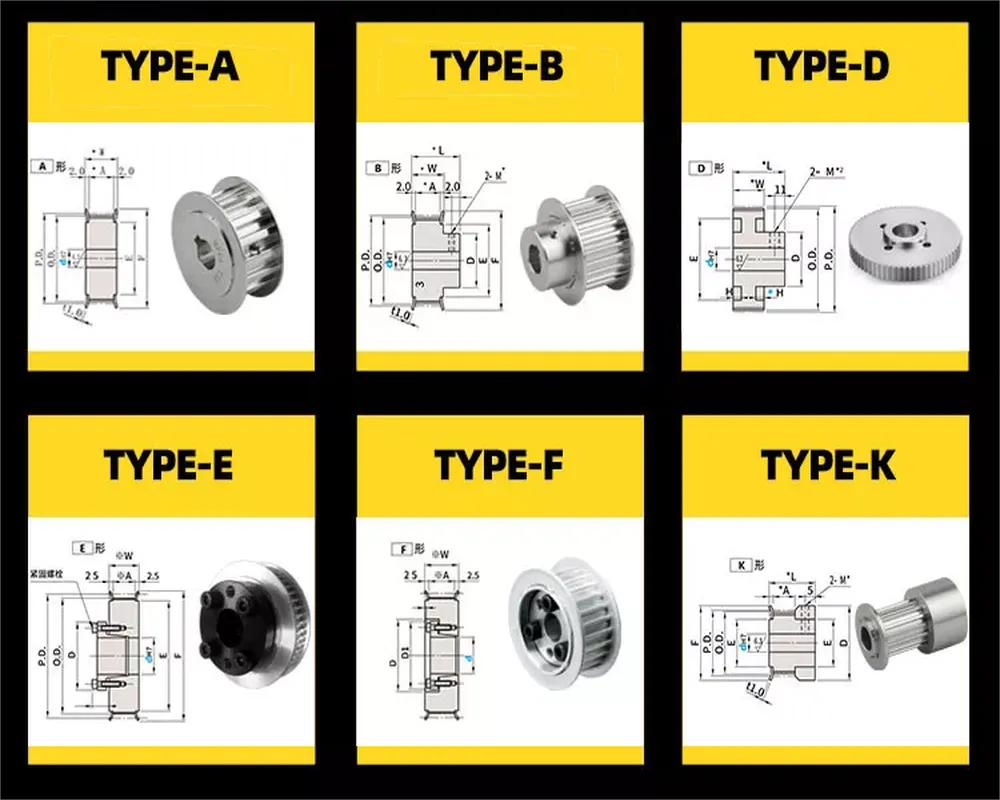

The basic shape of the timing belt pulleys： A-shape, B-shape, D-shape, E-shape, F-shape, and K-shape.
Timing Belt Pulley Types
Timing Belt Pulley Specifications
| Product | Timing Belt Pulley & timing belt idler pulley |
| Teeth type | Normal Torque Drive Type: MXL timing belt pulley, XL timing belt pulley, L timing belt pulley, H timing belt pulley, XH timing belt pulley, XXH timing belt pulley High Torque Drive Type:S2M,S3M,S5M,S8M,HTD2M,HTD3M,HTD5M,HTD8M,P2M,P3M,P5M,P8M High Precision Position Drive Type:GT2 timing belt pulley,GT3 timing belt pulley,GT5 timing belt pulley,8YU Light Load Drive Type: T5 timing belt pulley, T10 timing belt pulley, T20 timing belt pulley Heavy Load Drive Type: AT5 timing belt pulley, AT10 timing belt pulley, AT20 timing belt pulley |
| Basic shape | Type A,Type B,Type D,Type E,Type F,Type K |
| surface treatment | Natural color anodizing, Black anodizing, Hard anodizing, Ni-plating, Blackening |
| Material | 6061(aluminum),S45C(45# steel),SUS304(Stainless steel) |
| Bore | Pilot bore, Taper bore, and Customized bore. |
| testing equipment | projecting apparatus, salt spray test, durometer, coating thickness tester,2D projector |
| producing equipment | CNC machine, automatic lathe machine, stamping machine, CNC milling machine, rolling machine, lasering, tag grinding machine, etc. |
| Machining Process | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping |
| Application industry | Robot industry, Medical industry, Making machine industry, Automation industry,3C industry equipment, Packaging industry, UAV industry, and New energy industry. |
| Advantages | 1. High-temperature resistance, Self-lubrication, Wear resistance, Flame retardant properties 2. Good quality products 3. Competitive prices 4. Fast delivery 5. Best after-sale service 6. OEM/ ODM 7. Good service: satisfactory service before and after the sale. 8. Direct manufacturers |
The Characteristics of Timing Belt Pulley
1) Accurate transmission, no slippage during operation, and a constant transmission ratio
2) The transmission is stable, with buffering, vibration reduction capabilities, and low noise;
3) High transmission efficiency, up to more than 98%, with a noticeable energy-saving effect;
4) Easy maintenance, no need for lubrication, low maintenance cost;
5) The speed ratio range is extensive, generally up to 10, and the line speed can reach 50m/s
6) No pollution, you can typically work where pollution is not allowed and the working environment is relatively harsh.
Application
- Robot
- Industrial Manipulator
- Printing Industry
- Industry Manipulator
- Manipulator and conveyor belt
- Logistics Industry
- Die Cutting Industry

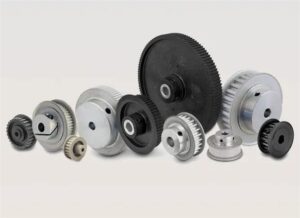

Custom Timing Belt Pulleys
Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons’ specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.
 |
 |
 |

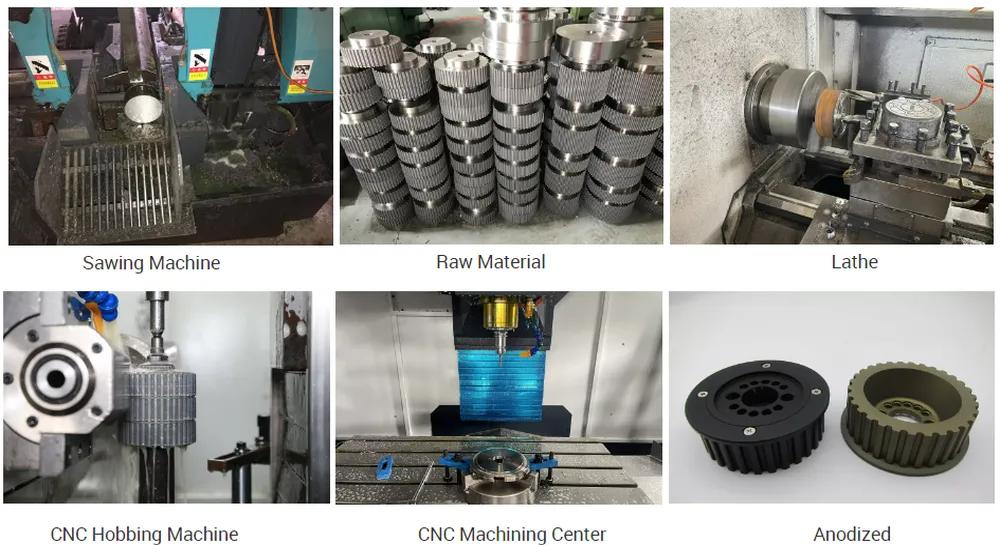

Timing Belt Pulley Produce Workshop
Timing Belt Pulleys Packaging
1. Put the timing belt pulley into the plastic shell
2. Individual carton packing
3. Carton boxes
4. Wooden case
