Cyclo Drive Reducer BLD Type Gearbox

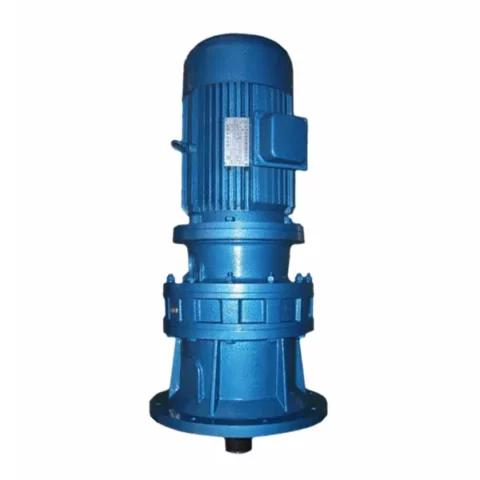

Cyclo Drive Reducer BLD Type Cycloidal Gearbox

BLD Vertical Cycloidal Gearbox(BLD Type Cyclo Drive Reducer) employs eccentric motion to achieve its speed reduction. It uses noncircular or eccentric motion to convert input rotation into a wobbly cycloidal motion. This motion is then converted back into a circular output rotation. During this process, speed reduction occurs. Unlike Harmonic drives, which employ a flexible cylinder that doesn`t move inits entirety but stretches to mesh with the internal circular spline gear to achieve a type of cycloidal motion, the cycloidal (planetocentric) drive gearbox will actually move the entire internal gear in an eccentric motion. Cycloidal gearbox accessories such as output shaft, cycloidal bearing, end cover and the cycloidal wheel are available too.

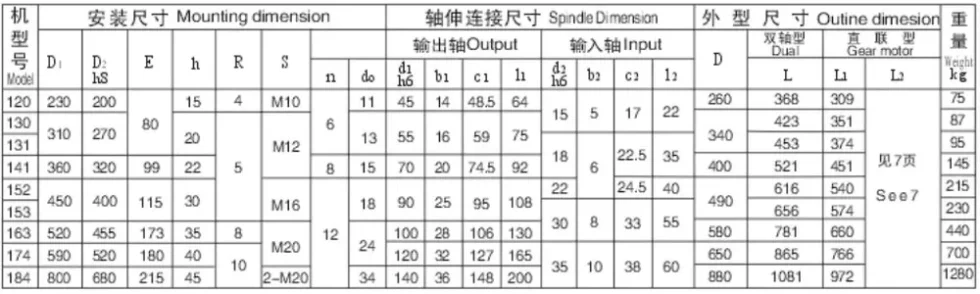

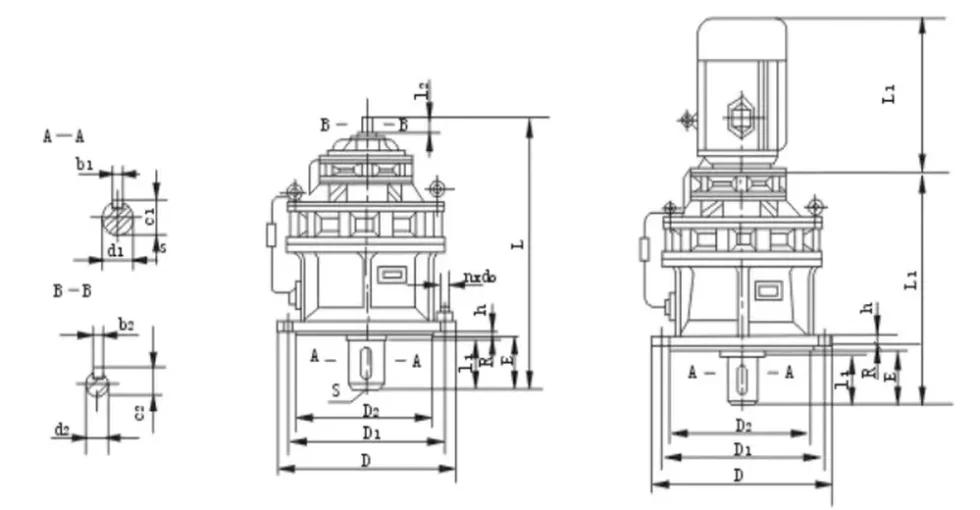

Design	Mounting Dimension

BLD Type Cycloidal Gearbox Specifications

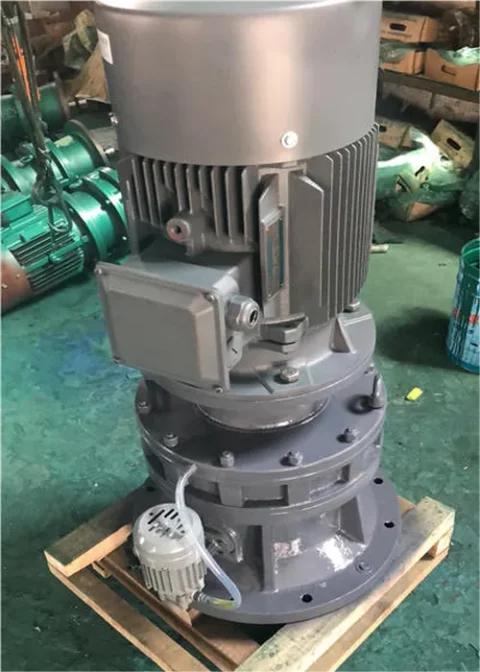

BLD Type Cycloidal Reducer Gearbox Feature

(1) High reduction ratio and efficiency
Single-stage transmission can produce a reduction ratio of 1:87 and over 90% efficiency. The multi-stage transmission will offer a higher reduction ratio.
(2) Compact structure and small volume
Due to the adoption of the planetary transmission principle, the input shaft and output shaft are at the same axis, so it has a compact structure and small volume.
(3) Stable operation and low noise
The cycloidal gearbox has more meshed teeth, the overlapping coefficient is big, and the machine part is stable; the vibration and noise are limited at the minimum content.
(4) Reliable operation and long service life
Major parts are manufactured with bearing steel, so they have excellent mechanical performance. The adoption of rolling friction makes them durable in use.
(5) Strong overload capacity, resistance to impact, and a small moment of inertia.
It is used for frequently starting positive and negative rotary. Because of their reasonable design, convenience in maintenance, easy of disassembling and assembling, the minimum amount of parts, and simple lubrication, the reducers are trusted by our customers deeply.

Cyclo Gearbox Working Principle

-All transmission device of cycloidal gearbox can be divided into three parts: input part, slowing down part, and output part.
-The input shaft has installed a dislocation 180° double eccentric locking collar that is installed two roller bearings. It forms the H mechanism. The central hole of two cycloidal wheels is just the roller table of the tumbler bearing at the eccentric locking collar. Meanwhile, it is meshed with one group of pin wheel arranged in ring shape at cycloidal wheel and pinwheel in order to consist of less differential gear inner meshing speed-down mechanism (in order to reduce friction, the pin tooth has sleeve of pin tooth at speed reducer with small speed ratio).
-When the input shaft brings an eccentric locking collar to rotate one cycle, because of the characteristic of the tooth profile curve at the cycloidal wheel as well as it is limited by up pin tooth of the pinwheel, the motion of the cycloidal wheel becomes a plane motion with a revolution and rotation. When the input shaft rotates clockwise one cycle, the eccentric locking collar rotates one cycle too. The cycloidal wheel will rotate one differential gear at the opposite direction, and the speed-down can be got. By means of the output mechanism, the low-velocity rotation motion of the cycloidal wheel will transmit to the output shaft through the axis pin, and lower output velocity can be got.

BLD Type Cycloidal Gearbox Applications

Cyclo drive gearbox adopts meshing cycloid pin gear, planetary transmission principle, so usually also called planetary cycloid reducer, the planetary cycloidal gearbox can be widely used in petroleum, environmental protection, chemical, cement, transport, textile, pharmaceutical, food, printing, lifting, mining, metallurgy, construction, power generation, and other industries, as a driver or reduction gear, the machine is divided into horizontal, vertical, biaxial and straight league such as assembly way. Its unique stable structure, in many cases, can replace the ordinary cylindrical gear reducer and worm gear reducer; therefore, a planetary cyclo drive reducer is widely used in various industries and fields by the majority of users generally welcome.

Cycloidal Reducer Gearbox Use Condition

1. The cycloidal gearbox is allowed to be used in the continuous working system while allowing the positive and negative directions to operate in two directions. Some types of the cycloidal gearboxes are only allowed to rotate in one direction.
2. The input shaft speed, rated speed of 1500 rpm/min, in the input power of greater than 18.5 kilowatts, is recommended to use 960 RPM / 6 pole motor matching.
3. Horizontal installation cycloidal gearbox working position is horizontal position. At installation, the maximum horizontal inclination is generally less than 15 degrees. More than 15 degrees, other measures should be adopted to ensure adequate lubrication and prevent oil leakage.
4. The output shaft of the cycloidal gearbox can not be subjected to larger axial and radial forces, and other measures must be taken in the case of larger axial and radial forces.

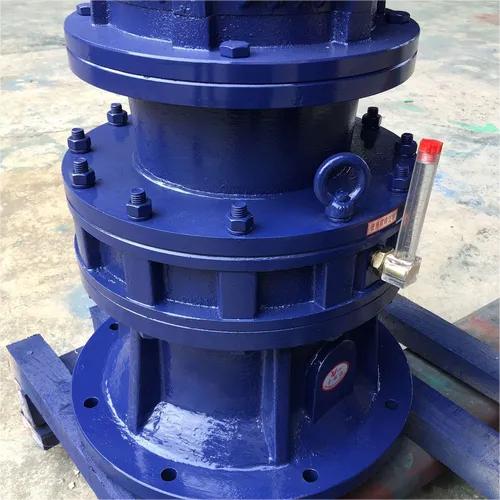

Cycloidal Gearbox Lubrication Requirements

1. The horizontal cycloid gearbox adopts oil pool lubrication under normal conditions, and the oil level can be kept in the middle of the oil sight window. When the working conditions are wrong, and the ambient temperature is high, circulating lubrication can be used.
2. Cycloid gearbox generally chooses 40# or 50# mechanical oil lubrication at room temperature. To improve the performance of the reducer and extend the service life of the cycloidal drive gearbox, it is recommended to use 70# or 90# extreme pressure gears. Lubricating oil should be reconsidered when working under high and low-temperature conditions.
3. The vertical installation of the planetary cycloid reducer gearbox must prevent the oil pump from cutting off the oil to avoid damage to the parts of the reducer.
4. When refueling, you can turn the breather cap on the upper part of the seat to refuel. When draining the oil, turn the drain plug at the bottom of the main seat to drain the dirty oil. There is no lubricating oil inside the reducer when it leaves the factory.
5. New oil should be replaced for 100 hours after the first refueling operation (clean the dirty internal oil), and then continue to work afterward. Replace every six months (8-hour work system). If the working conditions are wrong, the oil change time can be appropriately shortened. The practice has proved that frequent cleaning and oil change of the cyclo drive reducer(such as 3-6 months) play an essential role in extending the service life of the cyclo drive reducer. Lubricating oil should be frequently added during use.
6. The factory-made cycloidal gearbox has been greased and replaced every six months.

Cycloidal Gearbox Manufacturers

Chinese gearbox speed reducer is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gearboxes, planetary gearboxes, and worm gearboxes. As well as various special transmission devices such as speed-increasing devices and speed control Devices, including various types of flexible transmission devices. Such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery, and petrochemical industries.
Power-trans is a professional manufacturer of cycloidal gearboxes in China. The main products are: X series, B series, 8000 series cycloidal gearboxes, BWD cycloid gearbox reducer. XW BW cycloid gearbox, ZQ series cylindrical gearbox, K, F, S, R series helical gearboxes. NMRV series worm gearboxes, WP series worm gearboxes, SWL series screw jack lifter. ATA series shaft mounted gearbox, SMR series shaft mounted gearbox. The above products have passed the ISO9002 international quality system certification.   And they are widely used in metallurgy, mining, cement, building materials, chemical industry, plastics, paper making, hoisting, and other industries. And can manufacture various non-standard gearbox and accessories according to the needs of applications.
