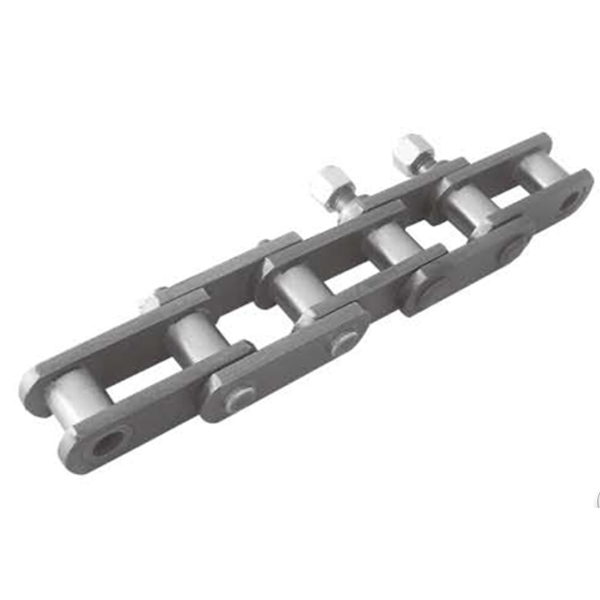

D series conveyor chain for mine machinery
- Material Strength: Conveyor chains in mining are built from high-strength materials, often steel, to handle the heavy loads and abrasive nature of the materials they transport. The chains need to resist wear and tear to maintain longevity and reliability.
- Design Features: These chains are designed with specific features to enhance their durability. This can include hardened pins, bushings, and rollers to withstand the stress and impact of the conveyed materials. They might also include self-lubricating or sealed designs to reduce maintenance needs.
- Environmental Resistance: Mining environments are harsh, with exposure to extreme temperatures, dust, moisture, and corrosive substances. Conveyor chains are often coated or treated to resist corrosion and operate effectively in these challenging conditions.
- Load Capacity: Conveyor chains must be able to support the weight of the material being transported, which can be significant in mining operations. The design often involves robust linkages and heavy-duty components to handle high loads.
- Maintenance: Regular maintenance is essential to ensure the longevity and performance of conveyor chains. This includes inspecting for wear, lubrication, and replacing parts as needed to prevent breakdowns and ensure smooth operation.
- Safety: Conveyor chains must be designed with safety in mind, including mechanisms to prevent slippage, overloading, and other issues that could lead to accidents or equipment damage.
- Customization: Depending on the specific requirements of the mining operation, conveyor chains can be customized in terms of length, width, and configuration to fit the unique needs of the system.

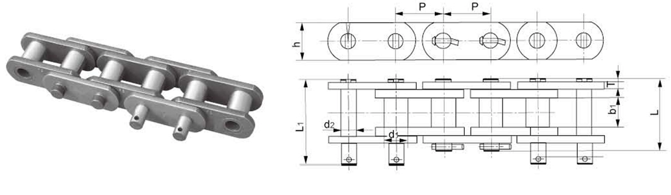

Diameter Data
China
No. |
Pitch
P mm |
Diameter of
Roller d1(max) mm |
Inner Width of
Inner Link b1(min) mm |
Diameter of Pin
d1(max) mm |
Length of Pin L
mm |
Extended Length of Pin L1
mm |
Height of
Sidebar h(max) mm |
Thickness of
Sidebar T mm |
Tensile Strength
Q(min) KN |
9835D | 88.9 | 44.50 | 39.7 | 23.85 | 117.5 | 149.9 | 63.5 | 12.7/14.27 | 392 |
4107D | 88.9 | 44.50 | 55.3 | 28.50 | 136.00 | 160 | 70 | 12.7/14.27 | 410 |
110D | 152.4 | 31.75 | 53.0 | 15.8 | 108.0 | 136.2 | 38.1 | 9.6 | 197 |
150D | 153.67 | 44.50 | 83.6 | 25.27 | 160.2 | 198.3 | 63.5 | 12.7 | 287 |
111D | 120.9 | 36.6 | 65.0 | 19.05 | 126.1 | 158.8 | 50.8 | 9.5 | 228 |
102D | 101.6 | 25.4 | 53.0 | 17.8 | 108.0 | 149.1 | 38.1 | 9.5 | 197 |

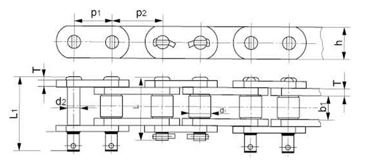

Extended Pin Chain with Mixed Pitches
China | Pitch | Diameter | Inner Width | Diameter | Length | Extended | Height | Thickness | Tensile | |
No. | of | of | of | of | Length | of | of | Strength | ||
Roller | Inner Link | Pin | Pin | of Pin | Sidebar | Sidebar | ||||
P1 | P2 | d1(max) | b1(min) | d1(max) | L | L1 | h(max) | T | Q(min) | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | |
5907D | 76.2 | 101.6 | 44.45 | 47.75 | 25.20 | 126.95 | 194.1 | 63.5 | 12.7/14.7 | 390 |
