DHA motor rail track series

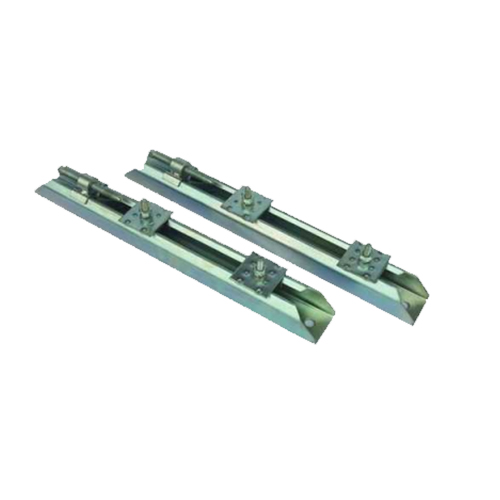

Motor Rail Track Series: it is with unique design, beautiful appearance, steady fixing and powerful weight bearing. It can be widely used in the fixing and adjustment of different kinds of motors.
Type | Stide
length G |

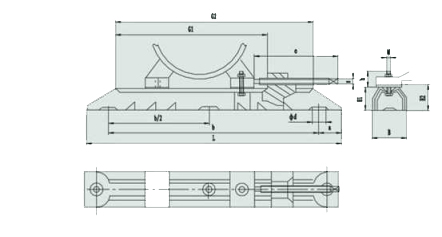

Motor-type | M*h | c*s | G2 | a | b | b/2 | φd | B | H1 | H2 | GW(kg) |
312/6 | 240 | 63/71 | M6*19 | 75*6 | 262 | 16 | 280 | 12 | 40 | 28 | 30 | 1.4 | |
312/8 | 240 | 80/90 | M8*27 | 75*6 | 262 | 16 | 280 | 12 | 40 | 28 | 30 | 1.5 | |
375/6 | 305 | 63/71 | M6*19 | 75*6 | 325 | 16 | 343 | 12 | 40 | 28 | 30 | 1.5 | |
375/8 | 305 | 80/90 | M8*27 | 75*6 | 325 | 16 | 343 | 12 | 40 | 28 | 30 | 1.6 | |
375/10 | 305 | 100/112 | M10*32 | 75*6 | 325 | 16 | 343 | 12 | 40 | 28 | 30 | 1.6 | |
395/8 | 302 | 80/90 | M16*28 | 97*8 | 325 | 20 | 355 | 12 | 50 | 40 | 43 | 3.4 | |
395/10 | 302 | 100/112 | M10*35 | 97*8 | 425 | 20 | 355 | 12 | 50 | 40 | 43 | 3.4 | |
495/8 | 405 | 80/90 | M8*29 | 97*8 | 425 | 20 | 456 | 12 | 50 | 40 | 43 | 4.0 | |
495/10 | 405 | 100/112/132 | M10*35 | 97*8 | 425 | 20 | 455 | 12 | 50 | 40 | 43 | 4.0 | |
495/12 | 405 | 160 | Ml 2*49 | 97*8 | 425 | 20 | 455 | 12 | 50 | 40 | 43 | 4.0 | |
530/10 | 413 | 132 | M10*37 | 119*9 | 442 | 25 | 480 | 14 | 60 | 50 | 54 | 6.4 | |
530/12 | 413 | 160 | M 12*49 | 119*9 | 442 | 25 | 480 | 14 | 60 | 50 | 54 | 6.4 | |
630/10 | 515 | 132 | M10*37 | 119*9 | 542 | 25 | 580 | 14 | 60 | 50 | 54 | 8.2 | |
630/12 | 515 | 160/180 | M12*45 | 119*9 | 542 | 25 | 580 | 14 | 60 | 50 | 54 | 8.2 | |
686/12 | 538 | 160/180 | M12*43 | 154*12 | 575 | 28 | 630 | 315 | 18 | 75 | 60 | 64 | 12.8 |
686/16 | 538 | 200/225 | M16*62 | 154*12 | 575 | 28 | 630 | 315 | 18 | 75 | 60 | 64 | 12.8 |
864/16 | 700 | 200/225 | M16*60 | 300*16 | 810 | 32 | 800 | 400 | 24 | 90 | 75 | – | 16.6 |
864/20 | 700 | 250/280 | M20*68 | 300*16 | 810 | 32 | 800 | 400 | 24 | 90 | 75 | – | 16.6 |
1072/20 | 865 | 250/280 | M20*77 | 360*19 | 995 | 36 | 1000 | 500 | 30 | 112 | 100 | – | 33.4 |
1072/24 | 865 | 315 | M24*88 | 360*19 | 995 | 36 | 1000 | 500 | 30 | 112 | 100 | – | 33.5 |
1330/24 | 1065 | 315/355 | M24*95 | 430*21 | 1215 | 40 | 1250 | 625 | 30 | 130 | 125 | – | 56.6 |
