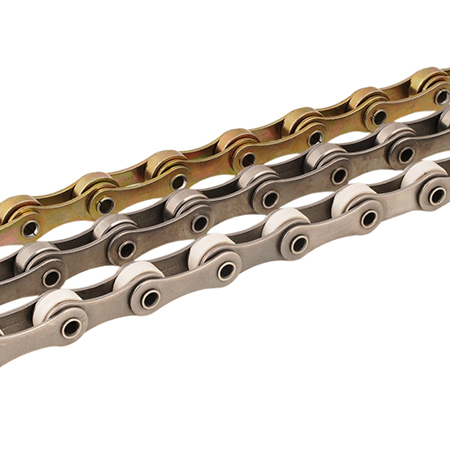

DHHP series hollow pin chains
Compared with solid pin chains, DHHP series hollow pin chains come with a variety of accessories. Such as accessory shafts and cross bars, tailored for different applications to facilitate material lifting and transportation. The main products include short pitch hollow pin transmission chains. Double pitch hollow pin transmission chains, non-standard hollow pin transmission chains, and more.
These chains use high-quality materials and advanced processing technologies, resulting in products with smooth transportation and high synchronization characteristics.
Diameter Data

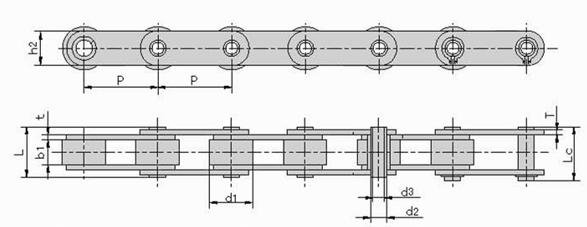

Table 1
| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter |
Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| d1 m ax | b1 mn | d2 maX | d3 mh | L m ax |
LC maX | h2 maX | t m ax |
Q mn | Q0 | q | ||
| mm | mm | m m | mm | mm | mm | mm | mm | mm | kN/bf | kN | kgm | |
| DH 42035HP | 88.9 | 31.80 | 15.00 | 14.00 | 10.10 | 36.3 | 39.0 | 26.0 | 3.8 | 42.0/9545 | 51.1 | 2.79 |
| DH4204HP | 101.6 | 31.80 | 15.00 | 14.00 | 10.10 | 36.3 | 39.0 | 26.0 | 3.8 | 42.0/9545 | 51.6 | 2.63 |
| DH8403HP | 76.2 | 47.60 | 19.00 | 19.05 | 13.60 | 43.8 | 46.3 | 39.0 | 5.1/3.8 | 84.3/19159 | 130.3 | 6.81 |
| DH8404HP | 101.6 | 47.60 | 19.00 | 19.05 | 13.60 | 43.8 | 46.3 | 39.0 | 5.1/3.8 | 84.3/19159 | 130.3 | 5.78 |
| DH8406HP | 152.4 | 47.60 | 19.00 | 19.05 | 13.60 | 43.8 | 46.3 | 39.0 | 5.1/3.8 | 84.0/19091 | 130.3 | 5.18 |
| HB38.1F2 | 38.1 | 25.40 | 12.70 | 9.50 | 6.60 | 26.6 | 28.0 | 19.1 | 2.3 | 20.0/4545 | 22.4 | 2.07 |
HB50.8F3 |
50.8 | 30.00 | 16.00 | 14.00 | 9.00 | 36.4 | 37.5 | 25.5 | 3.1 | 42.0/9545 | 47.0 | 3.20 |
| HB75 | 75.0 | 40.00 | 22.00 | 18.00 | 12.20 | 42.0 | 44.0 | 35.0 | 4.0 | 60.0/13636 | 72.0 | 5.57 |
| HB76.2 | 76.2 | 31.75 | 15.50 | 12.70 | 9.50 | 35.5 | 37.0 | 26.0 | 4.0 | 42.0/9545 | 49.2 | 3.25 |
| HB76.2F2 | 76.2 | 47.60 | 20.00 | 24.00 | 18.50 | 44.5 | 46.1 | 40.0 | 5.0/4.0 | 79.0/17953 | 92.5 | 6.77 |
| HB76.2F6 | 76.2 | 44.45 | 23.00 | 17.48 | 13.49 | 44.2 | 46.5 | 35.0 | 4.0 | 75.0/17044 | 82.5 | 6.27 |
| HB80 | 80.0 | 50.00 | 20.00 | 24.00 | 18.50 | 44.5 | 46.1 | 40.0 | 5.0/4.0 | 79.0/17953 | 92.5 | 6.81 |
| HP100 | 100.0 | 45.00 | 22.00 | 16.00 | 12.00 | 46.0 | 47.5 | 35.0 | 5.0 | 75.0/17044 | 90.0 | 6.20 |
| HP100F 1 | 100.0 | 45.00 | 22.00 | 18.00 | 12.00 | 47.2 | 48.5 | 35.0 | 5.0 | 75.0/17044 | 90.0 | 6.15 |

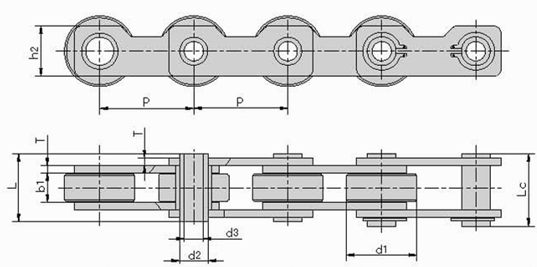

Table 2
| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter |
Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 m ax | b1 mh | 62 Im ax |
d3 mn mn | max mm | Lc max m |
h2 m ax | Q mn |
Q0 | q | ||
| mm | mm | nm | mm | mm | kN/bf | kN | kg/m | |||||
| HB50.8F 1 | 50.8 | 38.1 | 15.7 | 15.5 | 10.3 | 35.2 | 36.7 | 27.2 | 4.00 | 55.4651650 | 58.8 | 4.97 |
