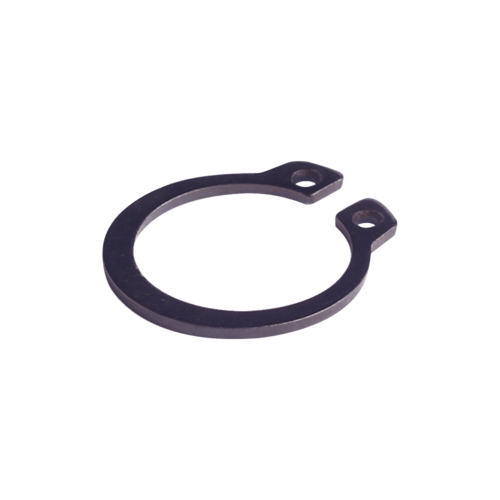

Circlips for Shafts PM-E Series DIN471
Circlips for Shafts PM-E Series DIN471
 |
PM-E Series Circlips for Shafts Material and surface treatments:
1) Spring steel; Black coating. 2) Alternative stainless steel 304; Surface passivation. |
| Part No. | Dimensions | Weight | ||||||
| d1
h11 |
S
h11 |
d3 | d4 | d5
min |
a
max |
b | Kg/1000pieces | |
| PM-E6 | 6 | 0.7 | 5.6 | 11.7 | 1.15 | 2.70 | 1.3 | 0. 084 |
| PM-E8 | 8 | 0.8 | 7.4 | 14.7 | 1.20 | 3.20 | 1.5 | 0. 158 |
| PM-E10 | 10 | 1.0 | 9.3 | 17.0 | 1.50 | 3.30 | 1.8 | 0. 340 |
| PM-E12 | 12 | 1.0 | 11.0 | 19.0 | 1.70 | 3.30 | 1.8 | 0. 500 |
| PM-E14 | 14 | 1.0 | 12.9 | 21.4 | 1.70 | 3.50 | 2.1 | 0. 640 |
| PM-E16 | 16 | 1.0 | 14.7 | 23.8 | 1.70 | 3.70 | 2.2 | 0. 700 |
| PM-E20 | 20 | 1.2 | 18.5 | 28.4 | 2.00 | 4.00 | 2.6 | 1. 300 |
| PM-E25 | 25 | 1.2 | 23.2 | 34.2 | 2.00 | 4.40 | 3.0 | 1. 900 |
| PM-E30 | 30 | 1.5 | 27.0 | 40.5 | 2.00 | 5.00 | 3.5 | 3. 320 |
| PM-E35 | 35 | 1.5 | 32.2 | 46.8 | 2.50 | 5.60 | 3.9 | 4. 000 |
| PM-E40 | 40 | 1.8 | 36.5 | 52.6 | 2.50 | 6.00 | 4.4 | 6. 030 |
| PM-E42 | 42 | 1.8 | 38.5 | 55.7 | 2.50 | 6.50 | 4.5 | 6. 500 |
| PM-E50 | 50 | 2.0 | 45.8 | 64.5 | 2.50 | 6.90 | 5.1 | 10. 200 |
Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Leading manufacturer of Circlips for Shafts PM-E Series DIN471 and Circlips suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory produce Circlips are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
