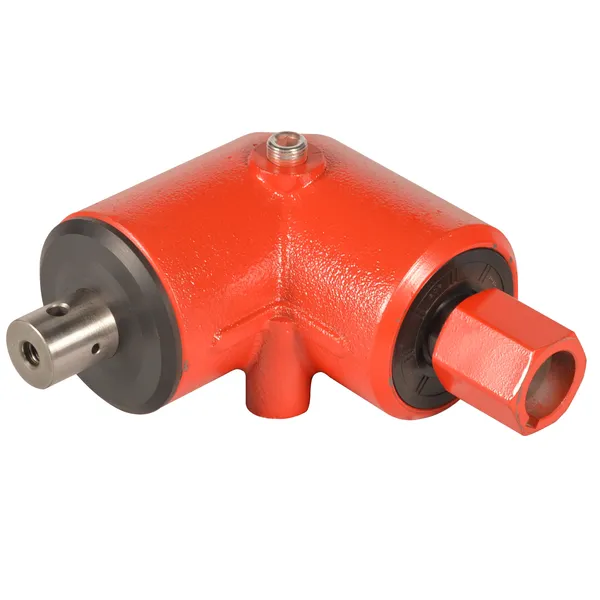

Double Disc Fertilizer Spreader Gearbox SF10 for Fertilizer Spreader
The Double Disc Fertilizer Spreader Gearbox SF10 is an essential component of a fertilizer spreader that is working in agricultural applications. Designed to evenly distribute granular fertilizers onto the field, ensuring accurate and efficient fertilization. The gearbox is responsible for transmitting power from the tractor’s power take-off (PTO) to the spreading discs. It converts the rotational motion from the PTO into the necessary speed and torque required to spin the spreading discs.
Specifically designed for use in double disc fertilizer spreaders. It is a durable and robust gearbox, constructing with high-quality materials to withstand the demanding conditions of agricultural operations. The gearbox is typically making of cast iron or other sturdy metals to ensure longevity and reliable performance.
The Double Disc Fertilizer Spreader Gearbox SF10 features a compact design, making it easy to integrate into the spreader’s overall structure. It is often mounting directly onto the spreader’s frame or chassis. The gearbox is equipped with gears and bearings that are precisely engineered to handle the load and stress generated during fertilizer spreading. It provides a smooth and consistent power transfer to the spreading discs, ensuring even distribution of fertilizers across the field.
The SF10 gearbox may have various speed settings and adjustment mechanisms, allowing operators to customize the spreading rate according to their specific requirements. These adjustments can be made through a control lever or mechanism located on the spreader.
Dimensions
Technical Data
i | Suitable | Rpm input | Rpm output | Power | Toothing | ||
r/min | r/min | Kw | Hp | ||||
left/right box | 1 :1.33 | Fertilizer spreader, etc | 540 | 406 | 15 | 20 | Gleason Helical Teeth |
Remark: If you have any special require feel free let me know, we also accept custom. |

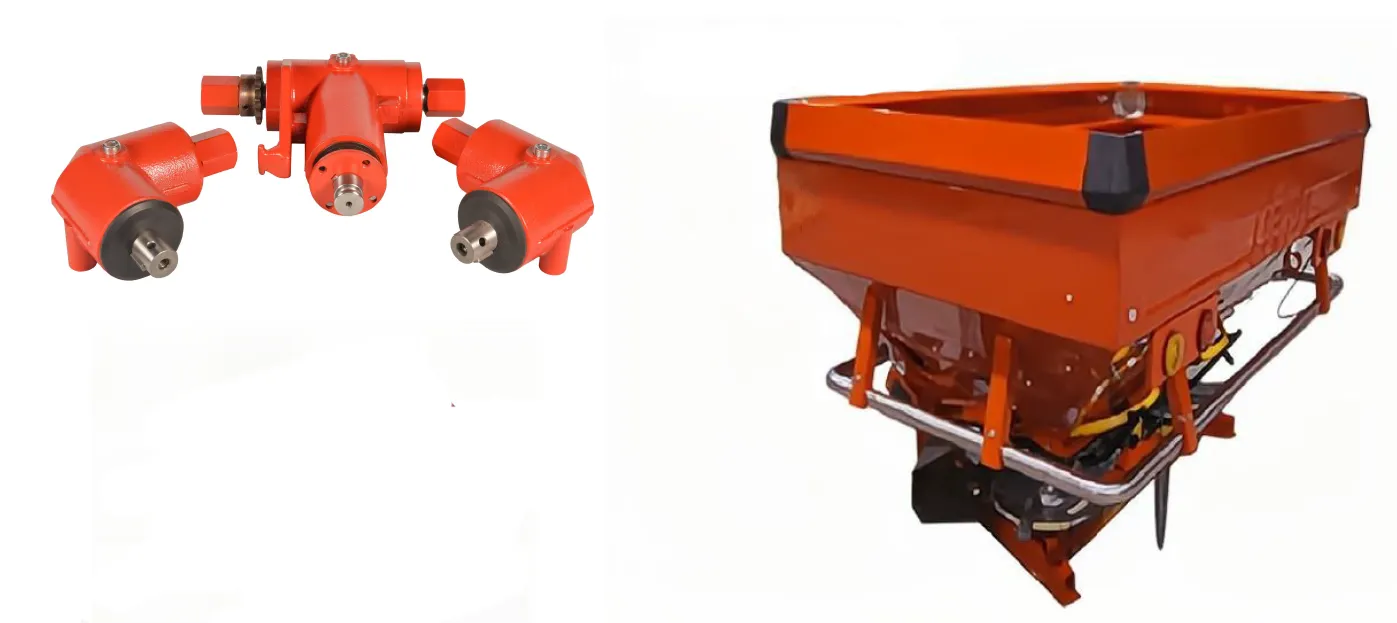

Advantages of Double Disc Fertilizer Spreader Gearbox SF10
Using the Double Disc Fertilizer Spreader Gearbox SF10 offers several advantages in agricultural applications:
1. Accurate and Even Fertilizer Distribution:
The SF10 gearbox ensures precise and consistent distribution of granular fertilizers onto the field. It effectively transfers power from the tractor’s PTO to the spreading discs, resulting in an even spread pattern. This ensures that the fertilizers are applying uniformly, avoiding over-application or under-application in certain areas.
2. Improved Efficiency:
The Double Disc Fertilizer Spreader Gearbox SF10 enables high-speed rotation of the spreading discs, which leads to efficient fertilizer spreading. It allows for wider coverage and reduces the time required to fertilize a given area. This increased efficiency helps farmers save time and labor, enhancing overall productivity.
3. Customizable Spreading Rate:
The SF10 gearbox often comes with adjustable speed settings and mechanisms, allowing operators to customize the spreading rate according to their specific needs. This flexibility is particularly beneficial when dealing with different types of fertilizers or varying field conditions. It enables precise control over the amount of fertilizer being applied, leading to optimized nutrient distribution.
4. Durability and Reliability:
The Double Disc Fertilizer Spreader Gearbox SF10 is constructed with high-quality materials, such as cast iron or other sturdy metals, ensuring its durability and reliability even in harsh agricultural environments. It is designed to withstand the demanding conditions of fertilizer spreading operations, providing long-lasting performance.
5. Easy Integration:
The compact design of the gearbox makes it easy to integrate into the overall structure of the fertilizer spreader. Conveniently mounted onto the spreader’s frame or chassis, allowing for easy installation and maintenance.
6. Compatibility with Double Disc Spreaders:
The SF10 gearbox is specifically designed for use in double disc fertilizer spreaders, ensuring compatibility and seamless operation. It is tailored to meet the specific requirements of this type of spreading equipment, enhancing performance and efficiency.
Working Principle
The Double Disc Fertilizer Spreader Gearbox SF10 operates based on a simple yet effective working principle. Here is an overview of how it works:
(1) Power Transfer: The gearbox is connecting to the power take-off (PTO) of a tractor or other power source. The PTO provides rotational power, which is transmitted to the gearbox.
(2) Speed and Torque Conversion: The gearbox is responsible for converting the rotational motion from the PTO into the appropriate speed and torque required for the spreading discs. It contains a set of gears that mesh with each other to achieve this conversion.
(3) Gear Ratio Selection: The Double Disc Fertilizer Spreader Gearbox may have different gear ratios or speed settings, allowing operators to adjust the spinning speed of the spreading discs. This selection is typically with using a control lever or mechanism on the spreader.
(4) Spindle Rotation: The gearbox transfers the rotational motion to the spindles or axles connected to the spreading discs. These spindles rotate at a high speed, driven by the power transmitted from the gearbox.
(5) Disc Rotation: The spreading discs are mounting on the spindles and rotate along with them. As the discs rotate, they create centrifugal force that propels the granular fertilizers outward.
(6) Fertilizer Spreading: The granular fertilizers are evenly spread onto the field as they are thrown off the rotating discs. The speed and rotation of the discs, controlled by the gearbox, determine the spreading width and pattern.
(7) Adjustments and Control: Operators can adjust the spreading rate by modifying the speed setting on the gearbox. This allows for precise control over the amount of fertilizer being apply. Additionally, some spreaders may have mechanisms to adjust the spreading width and pattern.

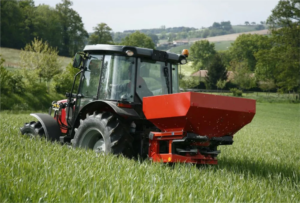

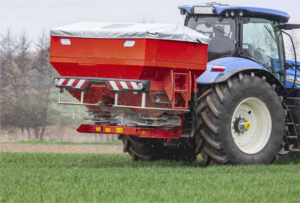

Applications of Double Disc Fertilizer Spreader Gearbox SF10
The Fertilizer Spreader Gearbox has various applications in agricultural settings. It is primarily working in double disc fertilizer spreaders. which are commonly employing in the following scenarios:
(1) Crop Fertilization: Utilized in double disc spreaders to evenly distribute granular fertilizers onto crop fields. It ensures accurate and uniform application of nutrients, promoting healthy plant growth and maximizing crop yields. This gearbox is compatible with a wide range of fertilizers, including nitrogen, phosphorus, and potassium-based formulations.
(2) Pasture and Forage Management: Employed in the management of pastures and forage crops. They help evenly distribute fertilizers to enhance the nutrient content of the grazing areas, leading to improved forage production and better livestock nutrition.
(3) Turf and Lawn Care: The SF10 gearbox finds application in the maintenance of turf and lawns, such as in golf courses, sports fields, and residential landscapes. It enables accurate and precise spreading of fertilizers, promoting healthy grass growth and ensuring a lush and vibrant appearance.
(4) Landscaping and Horticulture: Utilized in horticultural and landscaping applications where precise fertilizer application is crucial for plant health and aesthetics. It helps distribute fertilizers evenly around ornamental plants, trees, and shrubs, facilitating their growth and overall appearance.
(5) Soil and Nutrient Management: Used in soil and nutrient management programs. They aid in the targeted application of fertilizers, allowing farmers and agronomists to address nutrient deficiencies and maintain soil fertility levels.
