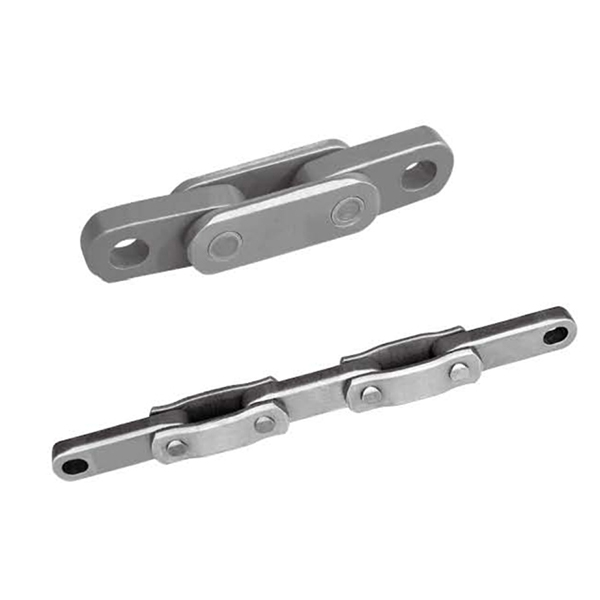

Double flex chains
Double Flex Chain is a type of conveyor chain that consists of two parallel chains connected by crossbars or links. It is designed to provide flexibility and enable smooth movement around curves and bends in conveyor systems.
Double flex chains
Features and Benefits:
- Flexibility: The crossbars connect the outer and inner sidebars in a way that allows the chain to bend and flex, making it ideal for curved conveyor paths.
- Smooth Movement: The design ensures that the chain moves smoothly even through complex conveyor configurations, reducing the likelihood of jamming or mechanical issues.
- Durability: The construction of the Double Flex Chain is robust, typically made from high-strength materials to withstand the stresses of continuous use and varying loads.
- Versatility: It can be used in various industries where conveyors need to navigate around obstacles or changes in direction, such as in packaging, automotive, and food processing.
Applications:
Curved Conveyors: Ideal for conveyor systems that need to navigate curves and bends efficiently.
Flexible Systems: Useful in environments where the conveyor layout needs to be adaptable or frequently changed.
Accumulation and Transfer Systems: Suitable for applications where smooth and continuous movement is necessary for the accumulation and transfer of products.

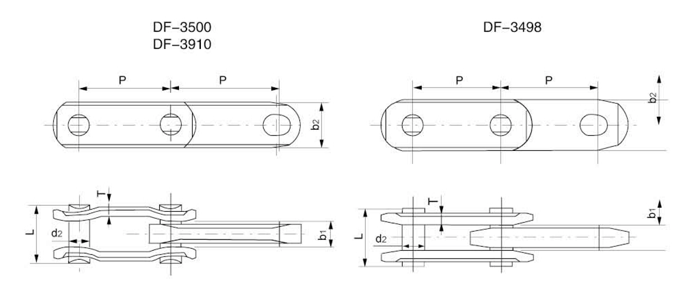

Diameter Data
| Chain | Pitch | Inner Width | Height of | Thickness of | Diameter | Length of | Min flex | Tensile | Weight |
| No. | of Inner Link | Sidebar | Sidebar | of Pin | Pin | radius | Strength | per meter | |
| P | b1 | b2 | T | d2 | L | R | Q(min) | q | |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m | |
| DF-3500 | 76.2/63.5 | 17.5 | 31.8 | 6.4/16 | 14.5 | 36.5 | 508 | 213 | 4.9 |
| DF-3910 | 76.2 | 17.5 | 31.8 | 6.4/16 | 14.5 | 36.5 | 560 | 213 | 4.8 |
| DF-3498 | 63.5/44.45 | 19.05 | 34.9 | 8/16 | 15.67 | 37.3 | 457 | 256 | 5.9 |
