Double Pitch Conveyor Chain Attachments K-1 SK-1

Double Pitch Conveyor Chain Attachments A-1 A-2 K-1 K-2

Double-pitch conveyor Chains extend the traditional shorter-pitch chain. They share the same length and strength, however the pitch is widened which reduces the overall weight of the chain. The standard double Pitch Conveyor Chains can be combined with a variety of attachments.

Category: Double Pitch Conveyor Chains

Description

Double Pitch Conveyor Chain Attachments A-1 A-2 K-1 K-2

Double-pitch conveyor Chains(Double Pitch Conveyor Chain Attachments A K) extend the traditional shorter-pitch chain. They share the same length and strength. However the pitch is widening which reduces the overall weight of the chain. The standard double Pitch Conveyor Chains can combine with a variety of attachments.

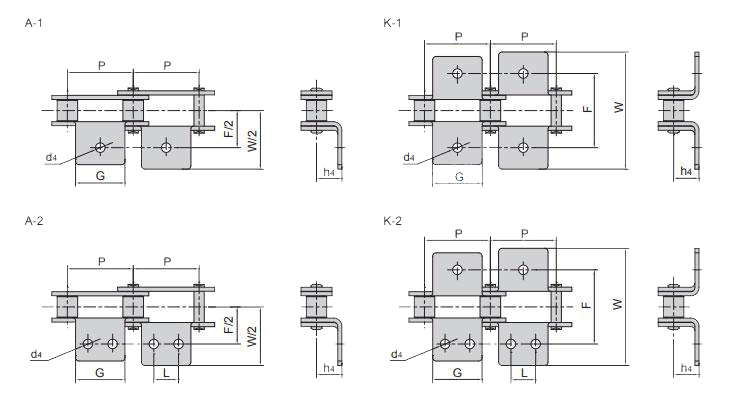

Dimensions of Double Pitch Conveyor Chains Attachments

Chain No.	P	G	L	F	W	h4	d4
Chain No.	mm	mm	mm	mm	mm	mm	mm
C208AF1	25.40	19.0	–	25.7	38.3	8.8	4.10
C2042F1	25.40	19.0	–	25.4	40.0	9.0	5.20
C2040A1F3	25.40	19.0	–	25.4	38.2	19.8	5.30
C2042A1F4	25.40	19.0	–	25.4	39.6	9.1	5.00
C2040A2F1	25.40	19.0	9.00	25.4	38.4	9.0	5.20
C2042HK1F1	25.40	19.0	–	47.0	60.0	9.1	7.00
C2050A1F6	31.75	23.8	–	31.8	49.0	11.4	6.30
C2052A2F1	31.75	19.0	11.90	31.8	49.0	11.1	6.00
C2052A2F2	31.75	19.0	15.88	31.8	49.0	11.1	5.50
C2052A2F3	31.75	25.8	12.70	31.8	49.2	11.1	4.80
C2060K1F1	38.10	28.6	–	42.9	68.0	14.7	8.50
C2062HK1F5	38.10	28.6	–	42.9	67.8	14.7	7.90
C2062A1F13	38.10	30.0	–	70.2	98.0	14.7	8.50
C2062A2F6	38.10	28.6	14.30	42.9	67.8	14.7	6.00
C2062K2F7	38.10	28.6	14.30	42.9	67.8	14.7	6.50
C2060HF3A2	38.10	28.6	14.30	42.9	67.8	14.7	5.20
C2062HF15	38.10	28.6	14.30	42.9	67.8	14.7	M5
C2060HK1F	38.10	28.6	–	42.9	67.8	14.7	8.00
C2062HA1F4	38.10	20.0	–	45.8	65.8	9.0	6.80
C2062HK1F5	38.10	28.6	–	42.9	67.8	14.7	7.90
C2062HA1F7	38.10	28.6	–	42.9	67.8	14.7	5.20
C2060HA1F12	38.10	28.0	–	43.4	61.8	13.9	6.60
C2060HK2F3	38.10	28.6	14.30	42.9	64.8	14.7	5.00
C2062HK2F4	38.10	28.6	14.30	42.9	56.4	14.7	5.20
C2062HK2F5	38.10	28.6	14.30	55.6	76.0	11.1	5.50
C2060HK1F26	38.10	28.6	–	42.9	67.8	14.7	9.20
C2062HA1F25	38.10	28.0	–	59.0	75.0	9.0	6.00
C2062A2F22	38.10	28.6	14.30	42.9	57.4	14.7	5.50
C2060HK1F22	38.10	28.6	–	42.9	67.8	14.7	8.50
C2062A2F24	38.10	28.6	14.30	42.9	67.8	14.7	4.76
C216AF3	50.80	39.0	19.10	59.0	78.5	23.0	7.00
C2082A2F1	50.80	39.0	19.00	58.0	82.0	21.5	7.00

Details

Chain No.	P	G	L	F	W	h4	d4
Chain No.	mm	mm	mm	mm	mm	mm	mm
C2082A2F2	50.80	39.0	19.00	58.0	82.0	21.50	10.00
C2082K2F5	50.80	38.1	19.10	120.0	140.0	19.10	6.80
C2080HF	50.80	38.1	19.10	55.6	75.2	17.80	10.00
C2082HK1F5	50.80	38.1	–	55.6	79.6	19.10	8.00
C2082HA1F6	50.80	38.1	–	55.6	77.8	19.10	10.00
C2082HK1F7	50.80	38.1	–	55.6	79.6	19.10	6.50
C2080HK1F8	50.80	38.1	–	55.6	87.8	19.10	9.00
C2082HK1F9	50.80	38.1	–	55.6	81.5	19.10	M8
C2080HA1F12	50.80	38.1	19.1	55.6	73.0	19.10	8.10
C2080HK1F13	50.80	38.1	–	55.6	80.0	19.10	9.00
C2082HA1F17	50.80	38.1	–	55.6	87.8	19.10	9.50
C2080HSLRA2F5	50.80	38.1	22.2	63.5	87.8	19.05	8.80
C2082HA2F6	50.80	38.1	19.1	55.6	87.8	19.10	8.00
C2082F64K2	50.80	34.9	20.0	54.0	79.0	16.00	M6
C2082HA1F21	50.80	38.1	–	55.6	88.3	19.10	10.20
C2080HSLRA2F23	50.80	38.1	19.1	55.6	87.8	19.10	M8
C2082A1F22	50.80	38.1	–	49.6	76.2	16.00	10.50
C2082HK1F23	50.80	38.1	–	55.6	87.8	19.10	8.00
C2082HA2F22	50.80	60.0	40.0	62.6	82.6	39.50	9.00
C2082A2F23	50.80	65.0	44.0	62.0	86.0	19.40	7.00
C2100HK1F1	63.50	47.6	–	66.0	92.0	25.00	12.50
C220ALA2F5	63.50	52.0	31.0	66.6	107.4	23.40	9.20
C220AHK1F1	63.50	47.6	–	66.0	92.0	25.00	12.50
C2102HA2F3	63.50	47.6	23.8	66.6	99.8	23.40	3/8”
C220AHA2F2	63.50	47.6	23.8	66.6	107.5	23.40	9.20
C220ALA1F5	63.50	47.6	–	76.6	107.5	23.40	11.00
C224AHK2F2	76.20	72.0	40.0	79.3	121.4	27.80	13.00
C2162HA2F2	101.60	36.5	38.1	104.7	151.6	36.50	18.00
C208BHK1F7	25.40	23.2	–	25.4	39.6	9.10	6.50
C208BA1F8	25.40	14.8	–	25.6	37.8	9.80	5.50

Sprockets for Double Pitch Conveyor Chains

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets
