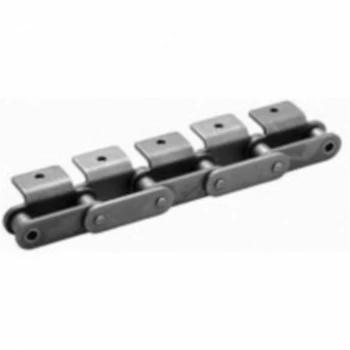

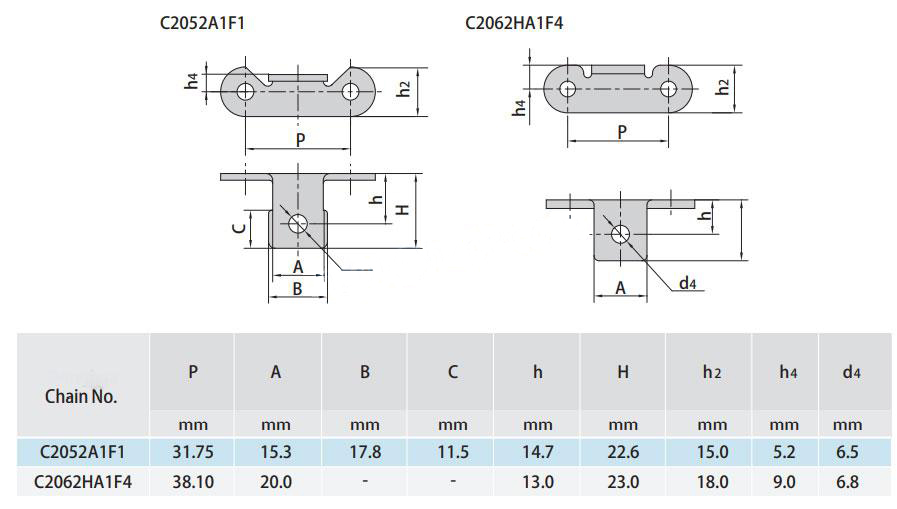

Double Pitch Conveyor Chain Special Attachments C2042HF1 C2050SD C2052A1F1 C2062HA1F4

Double pitch roller chains can be provided with special attachments, such as bent or straight pins. They are also available in special designs to meet specific customer requirements. ANSI standards define the dimensions of double-pitch roller chains, and they are available in different types of materials.

Category: Double Pitch Conveyor Chains

Description

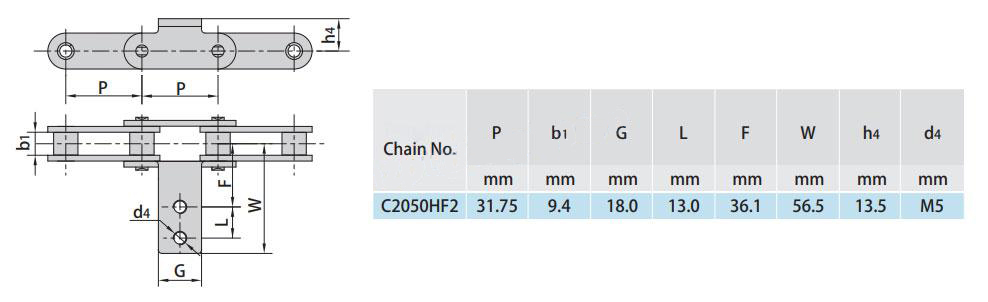

Double Pitch Conveyor Chain Special Attachments C2042HF1 C2050SD C2052A1F1 C2062HA1F4 C2042F4 C2050F9 C2050HF2

When selecting a Double Pitch Conveyor Chain Special Attachments, you need to take several factors into consideration. Generally, these chains are selected based on the amount of roller load and maximum tension that can be applied to them. In addition, the plate thickness and length of larger-pitch chains are higher, making them suitable for heavy-duty applications. However, you should be aware that dirt or other debris can affect the articulation of the chain.

Double pitch roller chains are available in many styles and configurations. A standard double pitch roller chain has a standard diameter roller, while an oversized double-pitch roller chain has a larger roller diameter than the side plate. Both of these styles are common in applications where a product or guide track rides on top of the chain.

Double pitch roller chains are also available in maintenance-free versions. These chains can also be provided with special attachments, such as bent or straight pins. They are also available in special designs to meet specific customer requirements. ANSI standards define the dimensions of double-pitch roller chains, and they are available in different types of materials.

Details of Double Pitch Conveyor Chain Special Attachments

Sprockets for Double Pitch Conveyor Chains

Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.

The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.

Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.

We have a wide range of sprockets for sale at competitive prices. Contact us and get more!

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets
