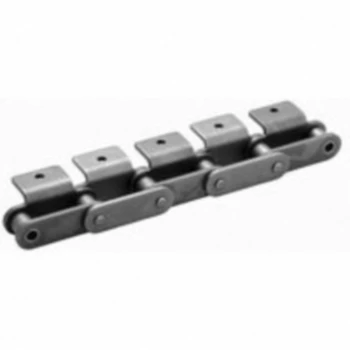

Double Pitch Conveyor Chain Special Attachments GK-1

Double pitch roller chains can be attached with special attachments. Custom designs are also available to meet customer needs. The dimensions of double-pitch roller chains are specified by ANSI standards. They are also available in different materials.

Category: Double Pitch Conveyor Chains

Description

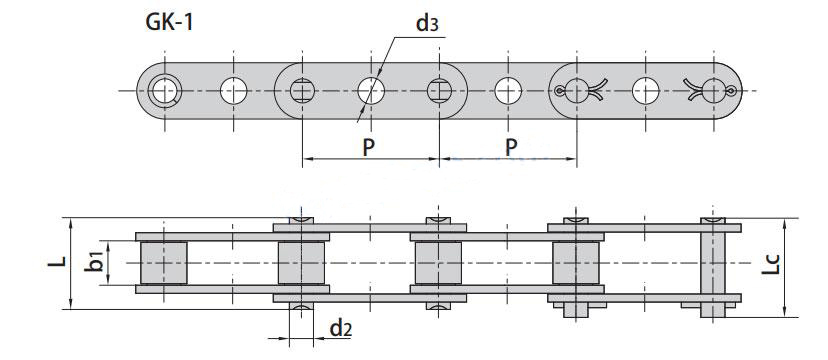

Double Pitch Conveyor Chain Special Attachments GK-1

ISO
Chain No. ANSI
Chain No. P
mm b₁mm d₂mm d₃mm L
mm Lc
mm

C208A C208AL C2040 C2042 25.40 7.85 3.96 4.1 16.6 18.8

C210A C210AL C2050 C2052 31.75 9.40 5.08 5.1 20.7 23.3

C212A C212AL C2060 C2062 38.10 12.57 5.94 6.1 25.9 28.3

C212AH C212AHL C2060H C2062H 38.10 12.57 5.94 6.1 29.2 31.6

C216A C216AL C2080 C2082 50.80 15.75 7.92 8.1 32.7 36.5

C216AH C216AHL C2080H C2082H 50.80 15.75 7.92 8.1 36.2 39.4

C220A C220AL C2100 C2102 63.50 18.90 9.53 10.1 40.4 44.7

C220AH C220AHL C2100H C2102H 63.50 18.90 9.53 10.1 43.6 46.9

GK-1 Double Pitch Conveyor Chain Special Attachment

Chain No. P b₁ d₂ d₃ L Lc

mm mm mm mm mm mm

C2040GKF6 25.40 7.85 3.96 6.10 16.6 18.8

C2050GKF2 31.75 9.40 5.08 8.10 20.7 22.2

C2050GKF3 31.75 9.40 5.08 8.10 20.7 22.2

C2050GKF4 31.75 9.40 5.08 7.00 20.7 22.2

C2050GKF5 31.75 9.40 5.08 7.10 20.7 22.2

C2050GKF6 31.75 9.40 5.08 6.00 20.7 22.2

C2050GKF7 31.75 9.40 5.08 6.10 20.7 22.2

C2050GKF8 31.75 9.40 5.08 8.30 20.7 22.2

C2050HGK 31.75 9.40 5.08 8.20 22.1 23.4

C2050HGKF1 31.75 9.40 5.08 7.00 22.1 23.4

C2052HGKF3 31.75 9.40 5.08 6.00 22.1 23.4

C2050HGKF4 31.75 9.40 5.08 8.10 22.1 23.4

C2060GKF1 38.10 12.57 5.94 8.00 25.9 27.7

C2060GKF2 38.10 12.57 5.94 8.10 25.9 27.7

C2060GKF3 38.10 12.57 5.94 6.20 25.9 27.7

C2060GKF8 38.10 12.57 5.94 8.80 25.9 27.7

C2060HGKF3 38.10 12.57 5.94 8.20 29.2 31.6

C2060HGKF4 38.10 12.57 5.94 8.30 29.2 31.6

C2060HGKF5 38.10 12.57 5.94 6.00 29.2 31.6

C2060HGKF6 38.10 12.57 5.94 8.30 29.2 31.6

C2060HGKF7 38.10 12.57 5.94 10.00 29.2 31.6

C2060HGKF10 38.10 12.57 5.94 8.80 29.2 31.6

C2060HF9 38.10 12.57 5.94 7.95 29.2 31.6

C2060HF69GK 38.10 12.57 5.94 8.33 28.7 30.8

C2080HGKF2 50.80 15.75 7.92 7.90 36.2 39.4

C2080HGKF6 50.80 15.75 7.92 11.00 36.2 39.4

C2080HGKF12 50.80 15.75 7.92 10.97 36.2 38.9

C220AGK 63.50 18.90 9.53 8.00 40.4 44.7

C208BGKF1 25.40 7.75 4.45 6.00 16.7 18.2

C208BGKF3 25.40 7.75 4.45 4.50 17.7 20.1

C208BGKF4 25.40 7.75 4.45 6.10 16.7 18.2

C208BGKF6 25.40 7.75 4.45 6.00 16.7 19.3

C210BF2GK 31.75 7.00 5.08 5.97 16.5 –

Sprockets for Double Pitch Conveyor Chains

Many manufacturing companies have standard issues of sprockets for double pitch conveyor chain chains(Special Attachments Conveyor Chain). These sprockets have a higher number of teeth and a longer wear life than single pitch ones. Double pitch sprockets are available in single- or double-toothed designs. And Double pitch conveyor chains are wider in pitch and can be used for precise positioning.
Double pitch conveyor chain sprockets are made of flame-cut steel and precision machined. There are two types of them: the A Type and the B Type. The B Type is cheaper and has one hub, while the C Type uses two.
The Double pitch roller chains look similar to single pitch ones, but their link plates are larger than usual. This reduces chain weight, making it more suitable for power transmission applications. Transport rollers are also included in double pitch roller chains. These reduce friction and tensile force during transport.
Our company has a wide range of sprockets for sale at competitive prices. Contact us and get more!

Agricultural Sprockets	Cast iron sprockets	Conveyor sprockets	Double pitch sprockets

Finished bore sprocket	Idler sprockets	QD sprocket	Plastic Sprockets

Plate wheel sprockets	Steel Sprockets	Welded steel chain sprockets	Specialty Sprockets

Packaging of Conveyor Chains

Our chain is most commonly packing in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
