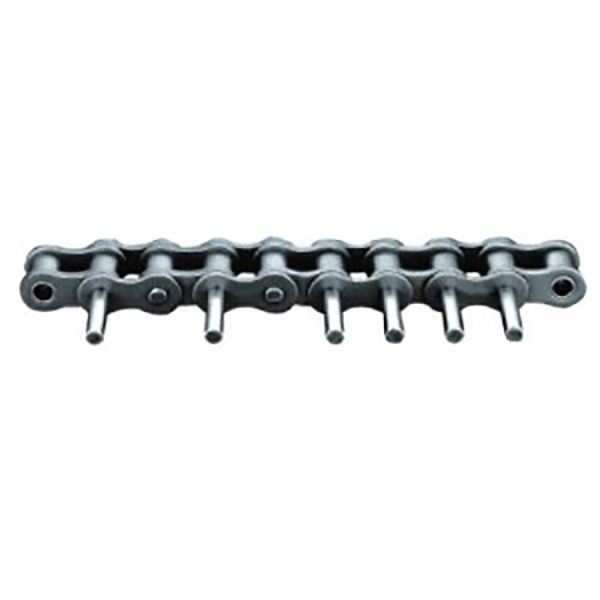

Double pitch conveyor chain with extended pins

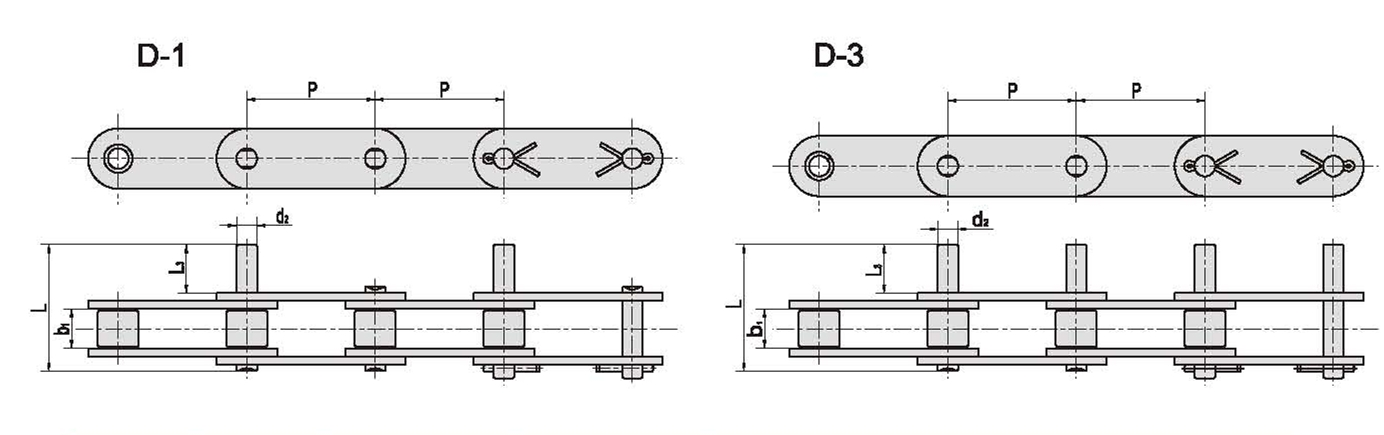

Dimensional parameters
ISO
链号 |
ANSI
链号 |
节距 Pitch | 内节内宽 Width Between inner plates | 附件尺寸
Attachment dimensions |
||
ISO
Chain No. |
ANSI
Chain No. |
P | b1 | d2 | L3 | L |
mm | mm | mm | mm | mm | ||
C208A | C2040 | 25.40 | 7.85 | 3.96 | 9.5 | 25.1 |
C208AL | C2042 | |||||
C210A | C2050 | 31.75 | 9.40 | 5.08 | 11.9 | 31.3 |
C210AL | C2050 | |||||
C212A | C2060 | 38.10 | 12.57 | 5.94 | 14.3 | 38.6 |
C212AL | C2062 | |||||
C212AH | C2060H | 38.10 | 12.57 | 5.94 | 14.3 | 42.0 |
C212AHL | C2060H | |||||
C216A | C2080 | 50.80 | 15.75 | 7.92 | 19.1 | 50.3 |
C216AL | C2082 | |||||
C216AH | C2080H | 50.80 | 15.75 | 7.92 | 19.1 | 53.5 |
C216AHL | C2082H | |||||
C220A | C2100 | 63.50 | 18.90 | 9.53 | 23.8 | 61.8 |
C220AH | C2102 | |||||
C220AH | C2100H | 63.50 | 18.90 | 9.53 | 23.8 | 65.0 |
C220AHL | C2102H | |||||
C224AH | C2120H | 76.20 | 25.22 | 11.10 | 28.6 | 79.6 |
C224AHL | C2122H | |||||
C232AH | C2160H | 101.60 | 31.75 | 14.27 | 38.1 | 103.0 |
C232AHL | C2162H |
Copper-plated, zinc-plated> nickle-plated and chrome-plated chain, stainless steel chain and multiple strands chain available.
