Double pitch conveyor chains
Produced to ANSI B29.4, these chains are used in conveyor applications when loads are low and speeds are moderate. They are similar to the Double-Pitch Power Transmission chains, but with link plates that have an oval contour, and can be produced with either standard or over-sized rollers.
They are most often found working on conveyors of all shapes and sizes and can be supplied with one or more of our many attachments to carry or convey products.

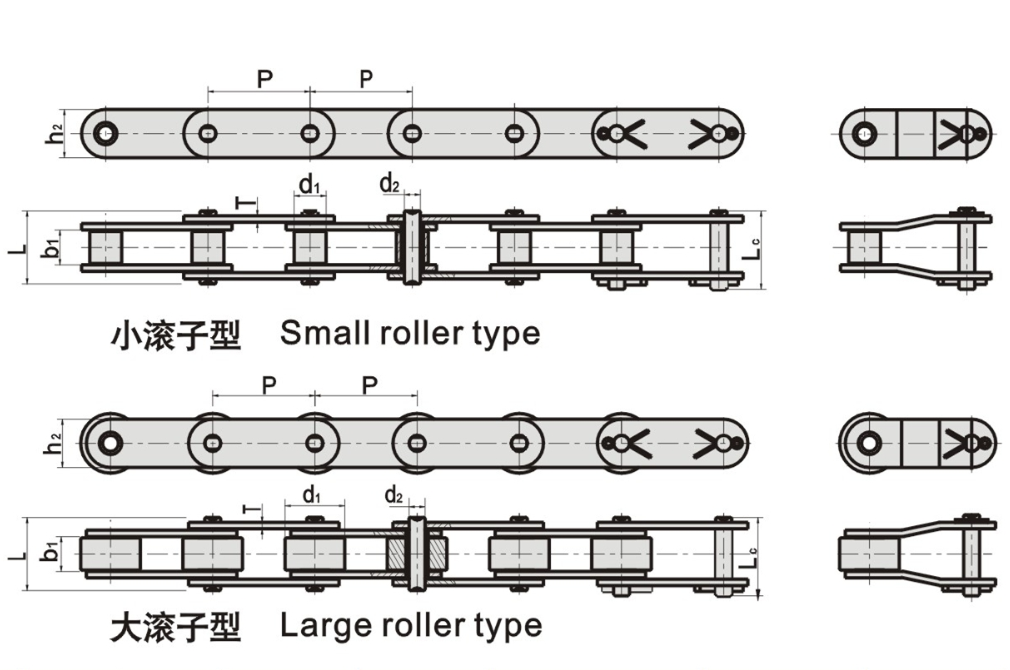

Dimensional parameters
ISO
链号 ISO Chain No. |
ANSI
链号 ANSI Chain No. |
节距
Pitch |
滚子直径 Roller diameter | 内节内宽 Width between inner plates | 销轴直径 Pin
diameter |
销轴长度 Pin
Length |
内链板高度 Inner plate depth | 链板厚度 Plate thickness | 极限拉伸载荷 Ultimate tensile strength | 平均拉伸载荷 Average tensile strength | 每米长重 Weight per meter | |
P | d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
T | Q
min |
Qo | q | ||
mm | KN | kN | kg/m | |||||||||
C208A | C2040 | 25.40 | 7.92 | 7.85 | 3.96 | 16.60 | 17.75 | 12.0 | 1.50 | 14.1 | 16.7 | 0.516 |
C208AL | C2042 | 15.88 | 0.866 | |||||||||
C208AH | C2040H | 25.40 | 7.92 | 7.85 | 3.96 | 18.80 | 19.90 | 12.0 | 2.03 | 14.1 | 17.2 | 0.651 |
C208B | 25.40 | 8.51 | 7.75 | 4.45 | 16.70 | 18:20 | 11.8 | 1.60 | 18.0 | 19.4 | 0.55 | |
C208BL | 15.88 | 0.883 | ||||||||||
C210A | C2050 | 31.75 | 10.16 | 9.40 | 5.08 | 20.90 | 22.20 | 15.0 | 2.03 | 22.2 | 28.1 | 0.846 |
C210AL | C2052 | 19.05 | 1.322 | |||||||||
C212A | C2060 | 38.10 | 11.91 | 12.57 | 5.94 | 25.90 | 27.50 | 18.0 | 2.42 | 31.8 | 36.8 | 1.237 |
C212AL | C2062 | 22.23 | 1.95 | |||||||||
C212AH | C2060H | 38.10 | 11.91 | 12.57 | 5.94 | 29.30 | 31.00 | 18.0 | 3.25 | 31.8 | 41.6 | 1.56 |
C212AHL | C2062H | 22.23 | 2.27 | |||||||||
C216A | C2080 | 50.80 | 15.88 | 15.75 | 7.92 | 32.80 | 34.90 | 24.0 | 3.25 | 56.7 | 65.7 | 2.17 |
C216AL | C2082 | 28.58 | 3.23 | |||||||||
C216AH | C2080H | 50.80 | 15.88 | 15.75 | 7.92 | 36.20 | 37.70 | 24.0 | 4.00 | 56.7 | 70.0 | 2.58 |
C216AHL | C2082H | 28.58 | 3.63 | |||||||||
C220A | C2100 | 63.50 | 19.05 | 18.90 | 9.53 | 40.00 | 43.40 | 30.0 | 4.00 | 88.5 | 102.6 | 3.29 |
C220AL | C2102 | 39.67 | 5.48 | |||||||||
C220AH | C2100H | 63.5 | 19.05 | 18.90 | 9.53 | 43.60 | 46.90 | 30.0 | 4.80 | 88.5 | 112.4 | 3.78 |
C220AHL | C2102H | 39.67 | 5.97 | |||||||||
C224A | C2120 | 76.20 | 22.23 | 25.22 | 11.10 | 50.45 | 53.50 | 35.7 | 4.80 | 127.0 | 147.3 | 4.75 |
C224AL | C2122 | 44.45 | 7.69 | |||||||||
C224AH | C2120H | 76.20 | 22.23 | 25.22 | 11.10 | 53.50 | 57.50 | 35.7 | 5.60 | 127.0 | 160.9 | 5.34 |
C224AHL | C2122H | 44.45 | 8.29 | |||||||||
C232A | C2160 | 101.60 | 28.58 | 31.75 | 14.27 | 64.50 | 68.70 | 47.8 | 6.40 | 226.8 | 278.9 | 8.23 |
C232AL | C2162 | 57.15 | 13.63 | |||||||||
C232AH | C2160H | 101.60 | 28.58 | 31.75 | 14.27 | 68.20 | 73.00 | 47.8 | 7.20 | 226.8 | 285.8 | 9.07 |
C232AHL | C2162H | 57.15 | 14.47 |
