Double Pitch Conveyor Chains Attachments SA-1 SA-2 SK-1 SK-2
A variety of attachments(Double Pitch Conveyor Chains Attachments SA SK) can be combined with standard double pitch conveyor chains. We manufacture double-pitch chains with different pitch levels. These chains are manufactured using the highest quality alloy steel and manufacturing processes. They can be used in various applications, including conveying biomass fuels, recycling materials and wood. Their case-hardened pins provide the best balance between strength and wear resistance.
Double Pitch Conveyor Chains are an extension of the standard short-pitch conveyor chain. They have the same static strength and length, but the pitch is extended, reducing the weight of the entire chain. These chains are available in a variety of styles and types. The C2000 series is an example of a double-pitch chain. This model has large oversized rollers that project over the lower link plates, providing smooth rolling action while minimizing friction on the supporting surface.

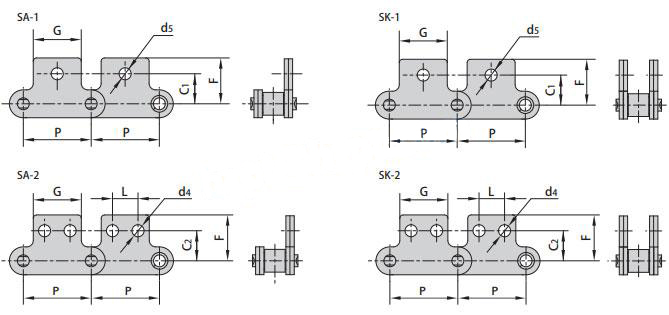

Dimensions of Double Pitch Conveyor Chains Attachments
Chain No. | ANSI Chain No. |
P | G | L | C1 | C2 | F | d4 | d5 |
mm | mm | mm | mm | mm | mm | mm | mm | ||
C208A
C208AL |
C2040
C2042 |
25.40 | 19.10 | 9.50 | 11.1 | 13.50 | 20.5 | 3.4 | 5.50 |
C208B
C208BL |
25.40 | 23.20 | 12.70 | 11.1 | 13.50 | 20.5 | 4.5 | 5.50 | |
C210A
C210AL |
C2050
C2052 |
31.75 | 23.80 | 11.90 | 14.3 | 15.90 | 25.0 | 5.5 | 6.60 |
C212A
C212AL |
C2060
C2062 |
38.10 | 28.60 | 14.30 | 17.5 | 19.10 | 32.9 | 5.5 | 9.20 |
C212AH
C212AHL |
C2060H
C2062H |
38.10 | 28.60 | 14.30 | 17.5 | 19.10 | 32.9 | 5.5 | 9.20 |
C216A
C216AL |
C2080
C2082 |
50.80 | 38.10 | 19.10 | 22.2 | 25.40 | 43.5 | 6.6 | 11.00 |
C216AH
C216AHL |
C2080H
C2082H |
50.80 | 38.10 | 19.10 | 22.2 | 25.40 | 43.5 | 6.6 | 11.00 |
C220A
C220AL |
C2100
C2102 |
63.50 | 47.60 | 23.80 | 28.6 | 31.80 | 50.4 | 8.4 | 13.00 |
C220AH
C220AHL |
C2100H
C2102H |
63.50 | 47.60 | 23.80 | 28.6 | 31.80 | 50.4 | 8.4 | 13.00 |
C2042HWSA2 | 25.40 | 37.30 | 9.50 | – | 13.50 | 20.5 | 3.4 | – | |
C2050HWSA2F1 | 31.75 | 46.75 | 31.75 | – | 15.90 | 25.0 | 5.5 | – | |
C2060SA2F1 | 38.10 | 28.60 | 14.30 | – | 19.10 | 26.1 | 5.5 | – | |
C2062HSK2F1 | 38.10 | 28.60 | 14.30 | – | 19.10 | 23.8 | 5.2 | – | |
C2060HSK1F1 | 38.10 | 28.60 | – | 17.3 | – | 30.0 | – | 11.80 | |
C216AH2F | 50.80 | 38.10 | 19.10 | – | 25.40 | 43.5 | 6.5 | – | |
C2082F58SA1-P | 50.80 | 38.50 | – | 27.0 | – | 39.5 | – | 8.10 | |
C2080HSLRSA2F5 | 50.80 | 38.10 | 19.10 | – | 25.40 | 43.5 | 6.8 | – | |
C2100HSA1 | 63.50 | 47.60 | – | 28.6 | – | 50.4 | – | 13.00 | |
C224ALSK2F1 | 76.20 | 57.20 | 28.6 | – | 37.30 | 59.9 | – | 11.00 | |
C2122HSA1F1 | 76.20 | 57.20 | – | 37.3 | – | 59.9 | – | 14.30 | |
C224AHLSA2F1 | 76.20 | 57.20 | 28.6 | – | 37.30 | 59.9 | – | 9.53 | |
208BSK1F2 | 25.40 | 14.00 | – | 17.7 | – | 21.3 | – | 3.20 | |
208BSK1F3 | 25.40 | 13.00 | – | 14.7 | – | 26.7 | – | 3.10 | |
208BSK1F4 | 25.40 | 24.20 | – | 14.3 | – | 20.5 | – | 4.20 |
Sprockets for Double Pitch Conveyor Chains
Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. These sprockets are designed with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are used for applications that require precise positioning.
The sprockets for double pitch conveyor chains are made from flame-cut steel and are precision machined. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.
Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers which reduce the friction and tensile forces during the transport process.
Our company has a wide range of sprockets for sale at competitive prices. Contact us and get more!
