Double Pitch Conveyor Chains Attachments SAA-1 SAA-2 SKK-1 SKK-2
A variety of attachments(Double Pitch Conveyor Chains Attachments SAA SKK) can be combined with standard double-pitch conveyor chains. Our company manufactures double-pitch chains with different pitch levels. These chains are manufactured using the highest quality alloy steel and manufacturing processes. They can be used in various applications, including conveying biomass fuels, recycling materials and wood. Their case-hardened pins provide the best balance between strength and wear resistance.
Double Pitch Conveyor Chains are an extension of the standard short-pitch conveyor chain. They have the same static strength and length, but the pitch is extended, reducing the weight of the entire chain. These chains are available in a variety of styles and types. The C2000 series is an example of a double-pitch chain. This model has large oversized rollers that project over the lower link plates, providing smooth rolling action while minimizing friction on the supporting surface.
 |
 |

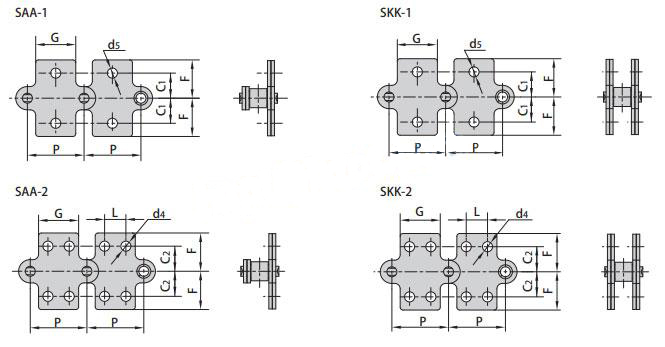

Dimensions of Double Pitch Conveyor Chains Attachments
| Chain No. | ANSI Chain No. |
P | G | L | C1 | C2 | F | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| C208A C208AL | C2040 C2042 | 25.40 | 19.1 | 9.5 | 11.1 | 13.5 | 20.5 | 3.4 | 5.5 |
| C208B C208BL | 25.40 | 23.2 | 12.7 | 11.1 | 13.5 | 20.5 | 4.5 | 5.5 | |
| C210A C210AL | C2050 C2052 | 31.75 | 23.8 | 11.9 | 14.3 | 15.9 | 25.0 | 5.5 | 6.6 |
| C212A C212AL | C2060 C2062 | 38.10 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C212AH C212AHL | C2060H C2062H | 38.10 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
| C216A C216AL | C2080 C2082 | 50.80 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11.0 |
| C216AH C216AHL | C2080H C2082H | 50.80 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.6 | 11.0 |
| C2060HSAA1F1 | 38.10 | 24.0 | – | 25.4 | – | 43.5 | 11.0 | – |
Sprockets for Double Pitch Conveyor Chains
Sprockets for double pitch conveyor chains are standard issues in many manufacturing operations. We design these sprockets with a greater number of teeth and provide better wear life than single pitch sprockets. Double pitch sprockets come in a single or double toothed design. Double pitch conveyor chains have a wider chain pitch and are working in the applications that require precise positioning.
The sprockets for double pitch conveyor chains are making from flame-cut steel and are precision machining. They are available in two types: A Type and B Type. The B Type is less expensive and uses a single hub, while the C Type has two.
Double pitch roller chains are similar to single pitch chains, except that their link plates are wider than normal. This reduces the weight of the chain, making it suitable for power transmission applications. Double pitch roller chains also include transport rollers. Which reduce the friction and tensile forces during the transport process.
We have a wide range of sprockets for sale at competitive prices. Contact us and get more!
