Double Pitch Conveyor Chains with Extended Pins - China

Double Pitch Conveyor Chains with Extended Pins C2052F2 C2052F14 C2062-D38 C2062-D39

Double pitch roller chains are made for use in medium-duty applications of material handling. They share the same construction and structure as single pitch chains but are longer with longer links, flat link plates as well as smaller rollers. They are governed according to the standard ISO 1275-A. In the automotive sector, chains like these are frequently used in various applications.

Description

Double Pitch Conveyor Chains with Extended Pins C2052F2 C2052F14 C2062-D38 C2062-D39 C212AHL-D4 C212AHF3 C212AHF7 C212AHF8 C2060HF9 C2060HF10 C2060H-D23 C2060H-D24 C2060H-D31 C2062H-D41

Double Pitch Conveyor Chains with Extended Pins are working in medium-duty applications of material handling. They share the same construction and structure as single pitch chains but are longer with longer links, flat link plates as well as smaller rollers. They are governed according to the standard ISO 1275-A. In the automotive sector, chains like these are frequently working in various applications. Double pitch chains are available in different designs , and are customizable to meet the requirements of the conveying. They can be found with bent or straight attachments and have a variety of available in stock for rapid delivery. There are other options, including stainless steel, delta tone finishes, and various pin spacings. Additionally, double pitch chains for conveyors are modified to meet the specific needs of customers specifications.

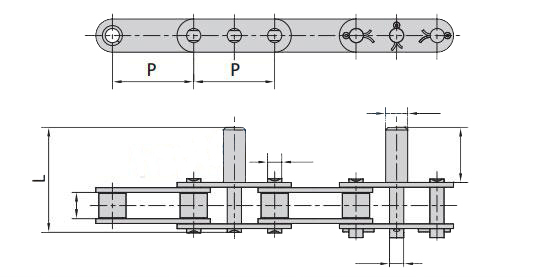

Double Pitch Conveyor Chains with Extended Pins drawing

Specifications

Chain No.	P	b₁	d₂	d₃	d₄	L ₃	L
Chain No.	mm	mm	mm	mm	mm	mm	mm
C2052F2	31.75	9.40	5.08	6.00	7.0	20.0	39.8
C2052F14	31.75	9.40	5.08	6.00	7.0	21.0	40.4
C2062-D38	38.10	12.57	5.94	5.94	11.1	24.2	48.6
C2062-D39	38.10	12.57	5.94	5.94	13.3	32.2	56.6
C212AHL-D4	38.10	12.57	5.94	5.94	8.0	25.0	53.0
C212AHF3	38.10	12.57	5.94	8.08	10.0	35.0	63.0
C212AHF7	38.10	12.57	5.94	5.94	12.7	41.2	69.2
C212AHF8	38.10	12.57	5.94	8.00	10.0	35.0	63.0
C2060HF9	38.10	12.57	5.94	7.95	12.7	41.3	69.3
C2060HF10	38.10	12.57	5.94	7.70	14.3	41.3	69.3
C2060H-D23	38.10	12.57	5.94	8.80	12.7	41.3	69.3
C2060H-D24	38.10	12.57	5.94	7.95	12.7	44.8	65.6
C2060H-D31	38.10	12.57	5.94	7.95	16.0	45.0	73.0
C2062H-D41	38.10	12.57	5.94	9.53	9.5	22.2	50.0

Chains and Sprockets

Used in all applications such as transportation, machinery and other motor applications.
Maintained with grease and oil spray to provide smoother and better operation.
It makes the wheels run as the motor rotates and considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly working in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connecting to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Our company is one of the leading manufacturers and suppliers in China. We can offer various high-quality chains and sprockets for sale. Contact now!

Packaging of Double Pitch Conveyor Chains

Our chain is most commonly supplied in 10ft boxes, including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability, please contact us at any time.
