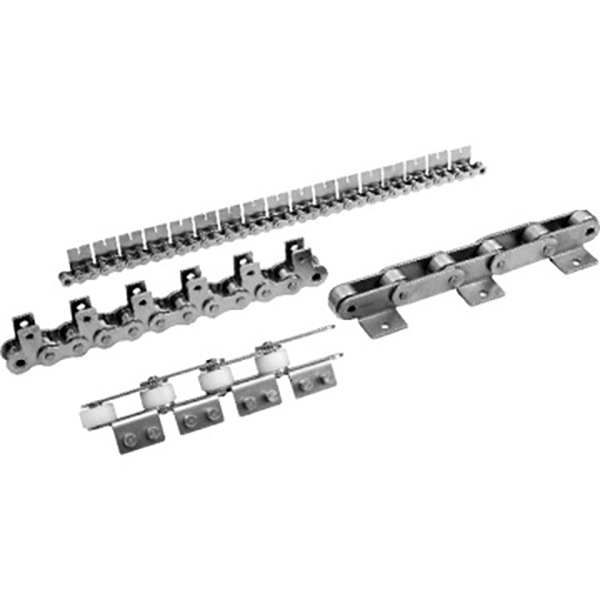

Double pitch conveyor chains with special attachments

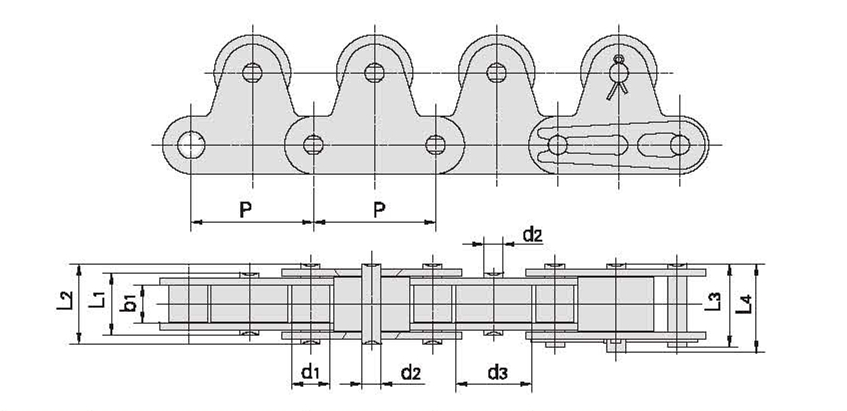

Dimensional parameters
链号 Chain No. | 节距
Pitch |
滚子直径 Roller diameter | 内节内宽 Width between inner plates | 销轴直径 Pin
diameter |
销轴长度 Pin length | 极限拉伸载荷 Ultimate tensile strength | 每米长重
Weight per meter |
||||
P | d1
max |
d3
max |
b1
min |
d2
max |
L1 max | L2
max |
L3
max |
L4
max |
Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
C2040-1LTR | 25.40 | 7.95 | 15.88 | 7.85 | 3.96 | 13.5 | 16.6 | 17.8 | 18.6 | 14.1 | 1.15 |
C2050-1LTR | 31.75 | 10.16 | 19.05 | 9.40 | 5.08 | 16.5 | 20.9 | 22.2 | 22.5 | 22.2 | 1.85 |
C2060-1LTR | 38.10 | 11.91 | 22.23 | 12.57 | 5.94 | 21.0 | 25.9 | 27.25 | 28.6 | 31.8 | 3.50 |
C2080-1LTR | 50.80 | 15.88 | 28.58 | 15.75 | 7.92 | 26.2 | 32.8 | 34.9 | 35.5 | 56.7 | 5.50 |
C2100-1LTR | 63.50 | 19.05 | 39.67 | 18.90 | 9.53 | 32.3 | 40.0 | 43.4 | 43.4 | 88.5 | 8.70 |

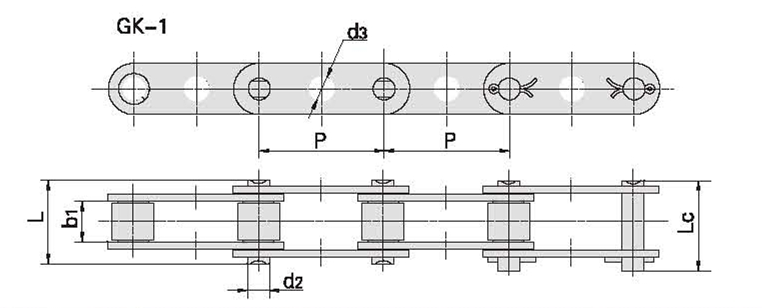

GK-1
Dimensional parameters
DIN/ISO
链号 DIN/ISO Chain No. |
ANSI
链号 ANSI Chain No. |
P | b1 | d2 | d3 | L | Lc |
mm | mm | mm | mm | mm | mm | ||
C208A
C208AL |
C2040
C2042 |
25.40 | 7.85 | 3.96 | 4.1 | 16.6 | 18.6 |
C210A
C210AL |
C2050
C2052 |
31.75 | 9.40 | 5.08 | 5.1 | 20.9 | 22.5 |
C212A
C212AL |
C2060
C2062 |
38.10 | 12.57 | 5.94 | 6.1 | 25.9 | 28.6 |
C212AH
C212AHL |
C2060H
C2062H |
38.10 | 12.57 | 5.94 | 6.1 | 29.2 | 31.6 |
C216A
C216AL |
C2080
C2082 |
50.80 | 15.75 | 7.92 | 8.1 | 32.8 | 35.5 |
C216AH
C216AHL |
C2080H
C2082H |
50.80 | 15.75 | 7.92 | 8.1 | 36.2 | 38.7 |
C220A
C220AL |
C2100
C2102 |
63.50 | 18.90 | 9.53 | 10.1 | 40.0 | 43.4 |
C220AH
C220AHL |
C2100H
C2102H |
63.50 | 18.90 | 9.53 | 10.1 | 43.6 | 46.8 |
