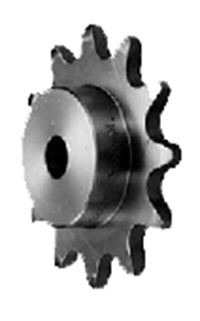

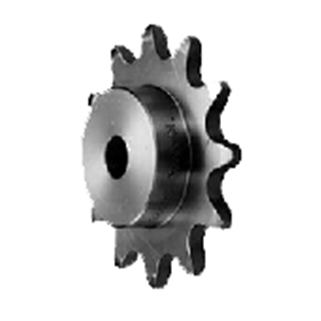

Japanese Standard Double Pitch Sprockets Stainless Steel SUS2060RB
SUS2060RB stainless steel sprocket Chain Type | No.2060HR SS (2062H SS) | |
Pitch | (P) | 38.10 mm |
Internal width | (W) | 12.70 mm |
Roller Dia. | (Dr) | 22.23 mm |
Teeth width | (T) | 11.7 mm |

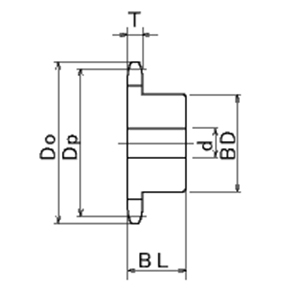

Sprockets No. | Outside Dia. Do |
Pitch Dia. Dp |
Bore d | Hub | Weight (kg) |
||||
Type | effected teeth No. | Stock | min. | max. | BD | BL | |||
SUS2060RB | 10 | 140 | 123.29 | 18 | 20 | 55 | 83 | 45 | 2.50 |
11 | 153 | 135.23 | 18 | 20 | 55 | 83 | 45 | 2.60 | |
12 | 165 | 147.21 | 18 | 20 | 55 | 83 | 45 | 2.80 | |
13 | 177 | 159.20 | 18 | 20 | 55 | 83 | 45 | 3.10 |
