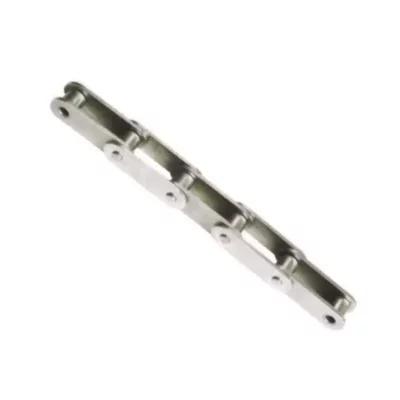

Double Pitch Stainless Steel Conveyor Chains
We stock a full line of double pitch stainless steel roller chains. These chains are typically used in conveying applications that require an anti-corrosive and non-magnetic roller chain. The double pitch stainless steel roller chains we have in stock are manufactured out of 304-grade stainless steel but are available as 316-grade stainless steel upon request.
Double Pitch Stainless Steel Conveyor Chains
We stock a full line of Double Pitch Stainless Steel Conveyor Chains. These chains are typically used in conveying applications that require an anti-corrosive and non-magnetic roller chain. The double pitch stainless steel roller chains we have in stock are manufactured out of 304-grade stainless steel but are available as 316-grade stainless steel upon request.
1. Material choices: Carbon steel,40Mn, C45 steel,304 stainless steel, 316 stainless steel, and 201 stainless steel.
2. We specialized in producing all kinds of standard chains and special chains, such as A or B series chains, roller chains,
driving chains, conveyor chains, hoisting chains, agricultural chains, sprockets, gears, wheels, and so on;
3. Roller chains: A series(12.7-50.8mm pitches), B series (9.525-50.8mm pitches), and the heavy series.
4. We supply all kinds of different modes of stainless steel roller chains.
5. We also supply the following short pitch precision roller chain
FEATURES |
|
| –304 stainless steel 304 stainless steel material is highly corrosion resistant and can withstand high/ambient temperatures from -40 to 752 –Made of solid cold-forged rollers, it can make smoother contact with sprocket and G under heavy load. Solid bushing adopts solid cold-forged bushing, which has excellent wear resistance and can bear BLV load. –All nitro chains required by industry standards are preloaded on the chain joints, eliminating any initial elongation in the new structure |
|

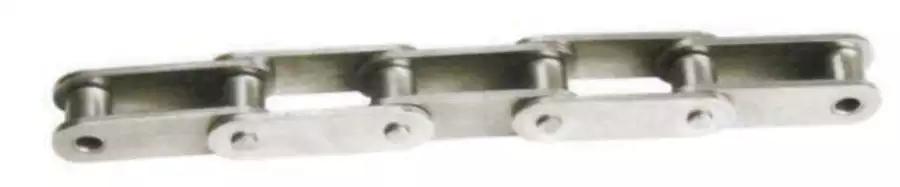

Standard roller type |

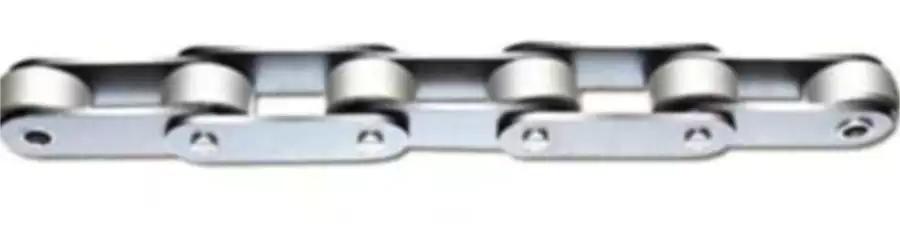

Large roller type |
 |
 |

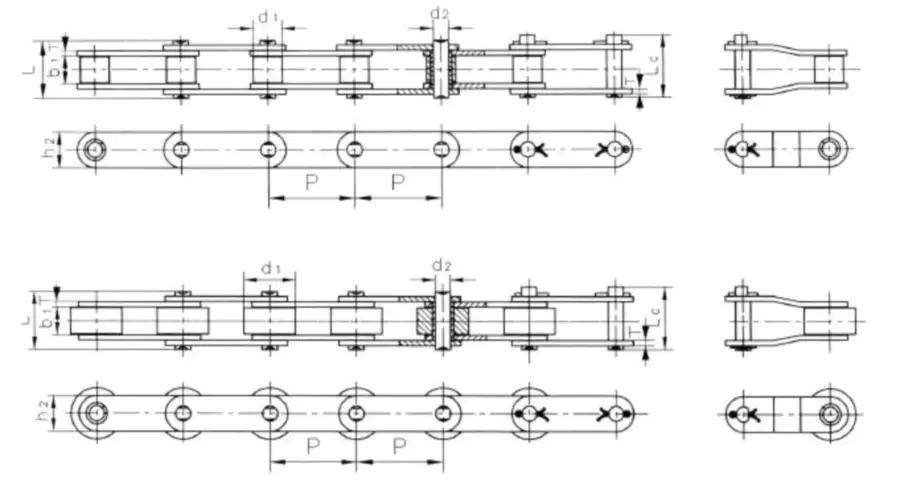

Specification of Double Pitch Stainless Steel Conveyor Chains
DIN ISO Chain No. ANSI Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth Plate thickness Ultimate tensile strength Average tensile strength Weight per meter P d1 max b1 min d2 max L max Lc max h2 max T max Q min Qo q mm mm mm mm mm mm mm mm kN kN kg/m C208ASS C2040SS 25.4 7.95 7.85 3.96 16.6 17.8 12 1.5 8.46 10.02 0.5
0.84C208ALSS C2042SS 15.88 C208AHSS C2040HSS 25.4 7.95 7.85 3.96 18.8 19.9 12 2.03 8.46 10.32 0.65 C208BSS 25.4 8.51 7.75 4.45 16.7 18.2 11.8 1.6 10.8 11.64 0.55
0.89C208BLSS C210ASS C2050SS 31.75 10.16 9.4 5.08 20.7 22.2 15 2.03 13.32 16.86 0.78 C210ALSS C2052SS 19.05 1.27 C212ASS C2060SS 38.1 11.91 12.57 5.94 25.9 27.7 18 2.42 19.08 22.08 1.12 C212ALSS C2062SS 22.23 1.61 C212AHSS C2060HSS 38.1 11.91 12.57 5.94 29.2 31.6 18 3.25 19.08 24.96 1.44 C212AHLSS C2062HSS 22.23 2.07 C216ASS C2080SS 50.8 15.88 15.75 7.92 32.7 36.5 24 3.25 34.02 39.42 2.08 C216ALSS C2082SS 28.58 3.12 C216AHSS C2080HSS 50.8 15.88 15.75 7.92 36.2 39.4 24.4 4 34.02 42 2.54 C216AHLSS C2082HSS 28.58 3.58 C220ASS C2100SS 63.5 19.05 18.9 9.53 40.4 44.7 30 4 53.1 61.56 3.01 C220ALSS C2102SS 39.67 4.83 C220AHSS C2100HSS 63.5 19.05 18.9 9.53 43.6 46.9 30 4.8 53.1 67.44 3.56 C220AHLSS C2102HSS 39.67 5.38 C224ASS C2120SS 76.2 22.23 25.22 11.1 50.3 54.3 35.7 4.8 76.2 88.38 4.66 C224ALSS C2122SS 44.45 7.66 C224AHSS C2120HSS 76.2 22.23 25.22 11.1 53.5 57.5 35.7 5.6 76.2 96.54 5.26 C224AHLSS C2122HSS 44.45 8.26 C232ASS C2160SS 101.6 28.58 31.75 14.27 64.8 69.6 47.8 6.4 136.08 167.34 8.23 C232ALSS C2162SS 57.15 11.95 C232AHSS C2160HSS 101.6 28.58 31.75 14.27 68.2 73 47.8 7.2 136.08 171.48 9.06 C232AHLSS C2162HSS 57.15 12.77

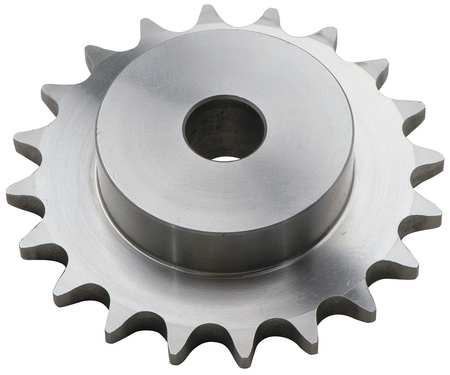

Matched Stainless Steel Double Pitch Sprockets
Related Products
 |
 |
 |
| Automobile chains | Drive chains | Conveyor chains |
 |
 |
 |
| Engineering chains | Traction chains | Agricultural machinery chains |
 |
 |
 |
| Stainless steel chains | Escalator chains | Chain wheel |
We also provide sprockets to match your roller chains
Packaging Display of Roller Chains
Our chain is most commonly packing in 10ft boxes including one connecting link per box. But we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.
Production Workshop of Roller Chains
Packing Shipping Delivery
  |
 |
|
 |
 |
|
