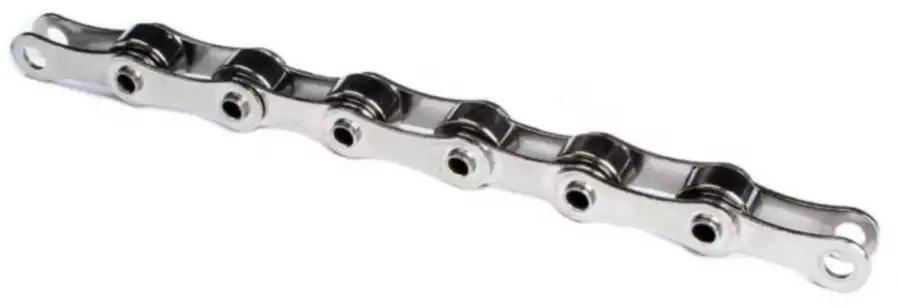

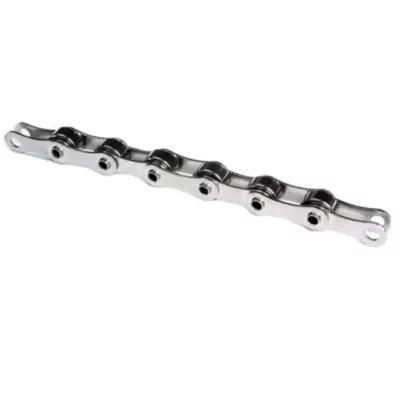

Double Pitch Stainless Steel Transmission Roller Chains
Our double stainless steel roller chain is perfect for corrosive environments due to the superior anti-corrosive resistance of #304 material. Unlike many stainless roller chains on the market, our double chain uses solid rollers & bushings. This improves the overall strength and durability, which ultimately increases the service life. Another benefit of Nitro stainless chains is that they can withstand much higher & lower temperatures than a carbon steel roller chain.
Double Pitch Stainless Steel Transmission Roller Chains
 |
 |
Our double stainless steel roller chain(Transmission Roller Chains) is perfect for corrosive environments due to the superior anti-corrosive resistance of #304 material. Unlike many stainless roller chains on the market, our double chain uses solid rollers & bushings. This improves the overall strength and durability, which ultimately increases the service life. Another benefit of Nitro stainless chains is that they can withstand much higher & lower temperatures than a carbon steel roller chain.
Our company is a professional roller chain supplier in China, which supply high-strength roller chain.
Roller chain is the type of chain drive most commonly used for transmission of mechanical power on many kinds of domestic, industrial, and agricultural machinery, including conveyors, wire-and tube-drawing machines, printing presses, cars, motorcycles, and bicycles. Steel roller chain provides a reliable mechanism for transmitting power to many kinds of different moving parts. It consists of a series of short cylindrical rollers held together by side links.

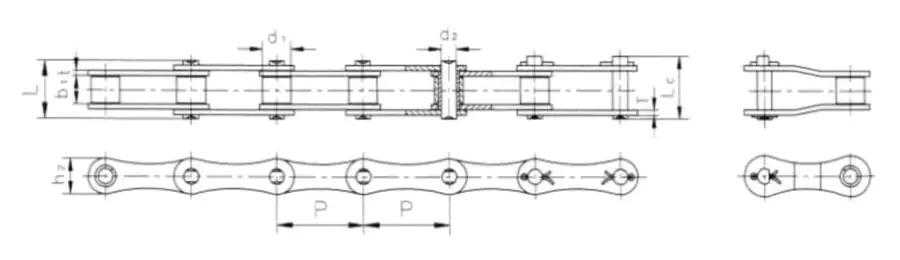

Dimensional parameters
Pitch, Roller Diameter, and Inner Width are known as the “Three Basic Dimensions of Roller Chain.” When these three dimensions are identical, roller chains and sprockets are dimensionally compatible.
– Anti-corrosive chain provides excellent corrosion resistance.
– Ideal for applications where strength and corrosion resistance are both required.
– Used in applications with higher working loads.
| DIN ISO Chain No. | ANSI Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Qo | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| C208ASS | C2040SS | 25.4 | 7.95 | 7.85 | 3.96 | 16.6 | 17.8 | 12 | 1.5 | 8.46 | 10.02 | 0.42 |
| C208BSS | 25.4 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.64 | 0.45 | |
| C210ASS | C2050SS | 31.75 | 10.16 | 9.4 | 5.08 | 20.7 | 22.2 | 15 | 2.03 | 13.32 | 16.92 | 0.73 |
| C210BSS | 31.75 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 13.44 | 16.5 | 0.65 | |
| C212ASS | C2060SS | 38.1 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18 | 2.42 | 19.08 | 22.08 | 1.02 |
| C212BSS | 38.1 | 12.07 | 11.68 | 5.72 | 22.5 | 25.2 | 16 | 1.85 | 17.4 | 19.32 | 0.76 | |
| C216ASS | C2080SS | 50.8 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24 | 3.25 | 34.02 | 39.42 | 1.7 |
| C216AHSS | 50.8 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24 | 4 | 34.02 | 42 | 2.17 | |
| C216BSS | 50.8 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21 | 4.15/3.1 | 36 | 43.68 | 1.75 | |
| C220ASS | C2100SS | 63.5 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 53.1 | 61.56 | 2.55 |
| C220BSS | 63.5 | 19.5 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 4.5/3.5 | 57 | 64.02 | 2.62 | |
| C224ASS | C2120SS | 76.2 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | 76.2 | 88.38 | 4.06 |
| C224BSS | 76.2 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96 | 106.8 | 4.7 | |
| C228BSS | 88.9 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120 | 133.2 | 6.23 | |
| C232BSS | 101.6 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 150 | 166.5 | 6.72 | |
Related Products
 |
 |
 |
| Automobile chains | Drive chains | Conveyor chains |
 |
 |
 |
| Engineering chains | Traction chains | Agricultural machinery chains |
 |
 |
 |
| Stainless steel chains | Escalator chains | Chain wheel |
We also provide sprockets to match your roller chains
Packaging Display of Roller Chains
Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.
