Double pitch transmission chains

Double pitch chains are based on the single pitch chains constructed according to ISO 606; except for the pitch, they meet the same standard specifications with respect to their dimensions. As opposed to short pitch chains constructed to standard ISO 606, these chains are intended for use in conditions in which demands on speed and power transmission are lower.

Description

Double pitch transmission chains

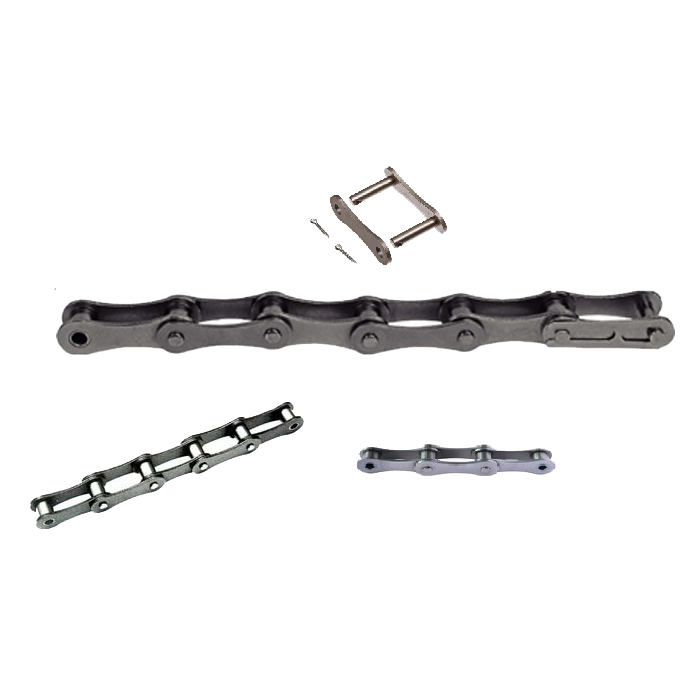

Double pitch chains meet the same dimensions and specifications as the ISO 606 European and American standard chains, except for the pitch, which measures exactly twice their standard counterparts.
The longer pitch represents an extremely cost effective solution for applications where large centre distances exist and speed and power transmission demands are lower. The double pitch makes it possible to fit the rollers, and as a result, friction and tensile stress within the chain are greatly minimized for many applications.

These chains are also a lighter and economical option thanks to the reduction of material, although they are built with the same quality and accuracy as the single-pitch equivalents.
Conveyor type with straight side plates and transmission type can be produced. American standard chains include versions with smaller or larger rollers. Additionally, they can be provided in normal plate or thicker plate versions.

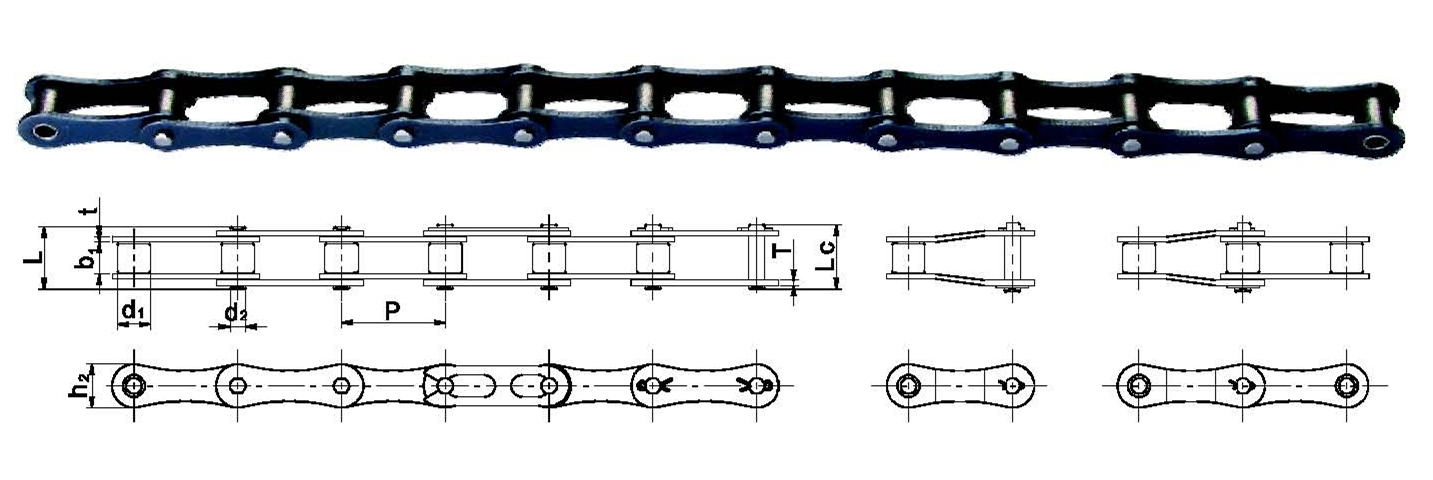

Dimensional parameters

ISO/DIN 链号 ISO/DIN Chain No.	ANSI 链号 ANSI Chain No.	节距 Pitch	滚子直径 Roller diameter	内节内宽 Width between inner plates	销轴直径 Pin diameter	销轴长度 Pin length		内链板高度 Inner plate depth	链板厚度 Plate thickness	抗拉强度 Ultimate tensile strength	平均抗拉强度 Average tensile strength	每米重量 Weight per meter
		P	d1 max	b1 min	d₂ max	L max	Lc max	h₂ max	t/T	Q(ISO/DIN) min	Qo	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
208A	2040	25,40	7,95	7.85	3.96	17.80	21.70	12.07	1.50	13.80/14.10	17.10	0.42
206B		2540	851	7.75	4.45	17.00	20.90	11.81	1.60	1780/18.00	19.60	0.45
210A	2050	31.75	10.16	9.40	5.08	21.80	25.90	15.09	2.06	21,80/22.20	28.00	0.73
210B		31 75	10.16	9.65	5.08	19.50	20.90	14.70	1.70	22 20/2240	27.50	0.65
212A	2060	38.10	11.91	12.57	5.94	26.90	31.50	18.08	2.44	31,10/31.80	39.00	1.02
212B		38.10	12.07	11.68	5.72	22.50	24.20	16.00	1.85	28.90/29.00	33.30	0.76
216A	2080	50,80	15.88	15.75	7.92	33.50	38.90	24.13	3.26	55.60/56.70	71.50	1.70
216B		50.80	15.88	17.02	8.28	36.10	39.10	21.00	4.10/3.10	60.00	71.00	1.75
220A	2100	63.50	19.05	18.90	9.53	41.10	47.20	30.18	4.00	86.70/88.50	102.00	2.55
220B		63.50	19.05	19.56	10.19	41.30	45.00	26.40	4.60/3.60	95.00	101.00	1.95
