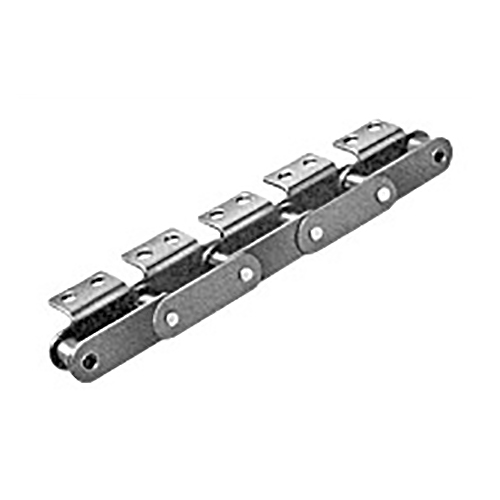

Double pitch transmission chains with attachments
Double Pitch conveyor chains are available with standard bent or straight type attachments on one or both sides. Attachments can be spaced as desired upon request. For even number of spacing, attachments will be fitted on pin link unless otherwise specified.
Double pitch transmission chains with attachments

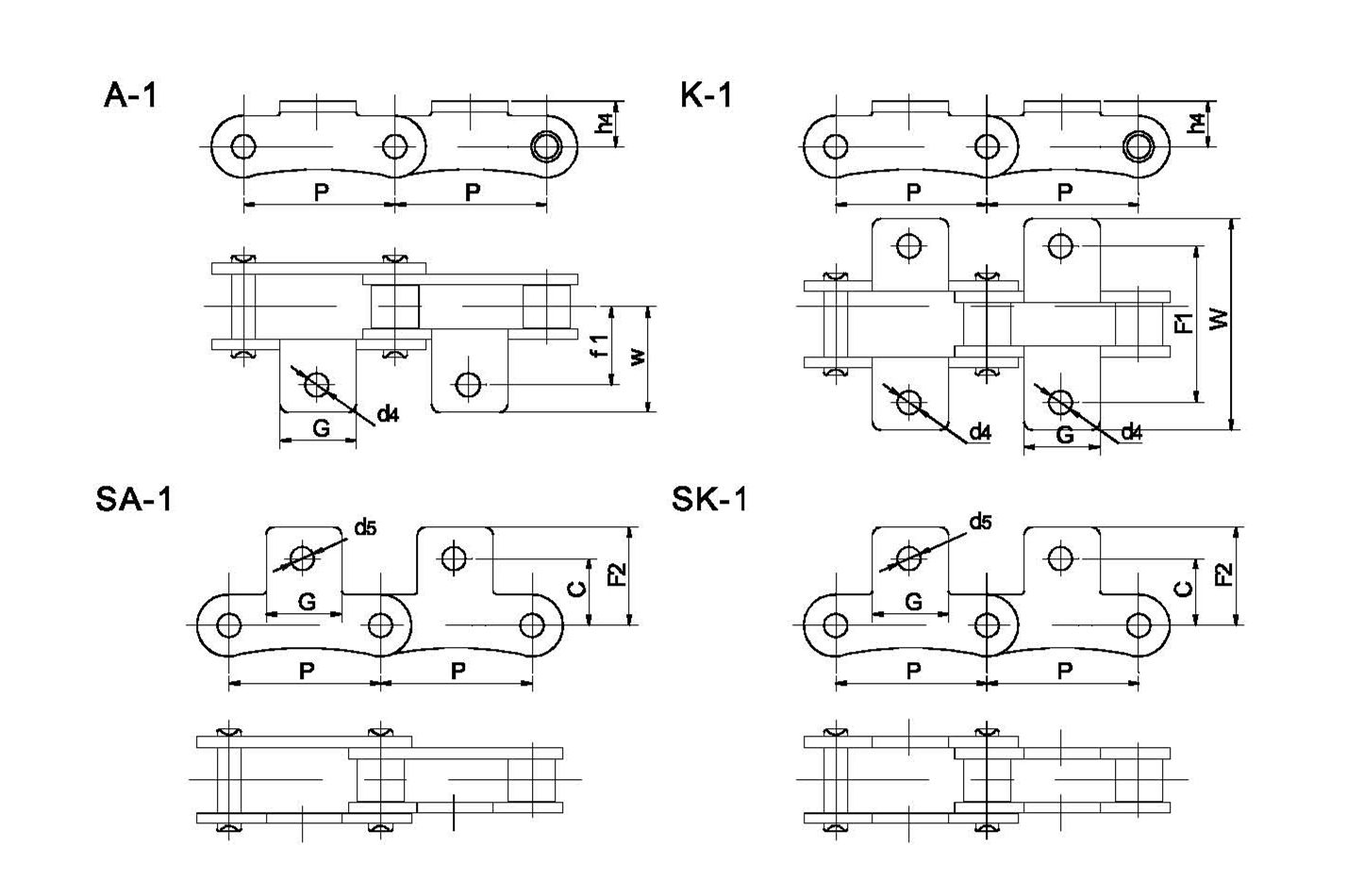

Dimensional parameters
| ISO/DIN 链号 ISO/DIN Chain No | ANSI
链号 ANSI Chain No |
节距
Pitch P |
G | F1/f1 | W/w | h 4 | d 4 | C | F 2 | d 5 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 208A | 2040 | 25.40 | 19.1 | 25.4/12.7 | 39.6/19.6 | 9.1 | 3.4 | 11.1 | 20.5 | 5.5 |
| 210A | 2050 | 31.75 | 23.8 | 31.8/15.9 | 49.0/24.5 | 11.1 | 5.5 | 14.3 | 25.0 | 6.6 |
| 212A | 2060 | 38.10 | 28.6 | 42.9/21.45 | 67.8/33.9 | 14.7 | 5.5 | 17.5 | 32.9 | 9.2 |
| 216A | 2080 | 50.80 | 38.1 | 55.6/27.8 | 87.8/43.9 | 19.1 | 6.8 | 22.2 | 43.5 | 11.0 |
| 220A | 2100 | 63.50 | 47.6 | 66.6/33.3 | 107.5/53.75 | 23.4 | 9.2 | 28.6 | 50.4 | 13.0 |
| 224A | 2120 | 76.20 | 57.2 | 79.3/39.65 | 121.4/60.7 | 27.8 | 10.5 | 33.3 | 55.5 | 15.0 |
| 208 B | 25.40 | 13.0 | 26.2/13.1 | 38.6/19.3 | 10.0 | 4.5 | 14.7 | 20.3 | 4.5 | |
| 210B | 31.75 | 23.8 | 31.8/15.9 | 49.0/24.5 | 11.1 | 5.5 | ||||
| 212B | 38.10 | 19.0 | 37.0/18.5 | 52.0/26.0 | 11.0 | 6.6 | ||||
| 216B | 50.80 | 44.0 | 50.8/25.4 | 84.0/42.0 | 19.1 | 6.6 | ||||
| 220B | 63.50 | 52.0 | 63.5/31.75 | 104.0/52.0 | 23.4 | 8.4 | ||||
| 224B | 76.20 | 60.0 | 76.2/38.1 | 120.0/60.0 | 27.8 | 10.5 |
