Double plus speed chains

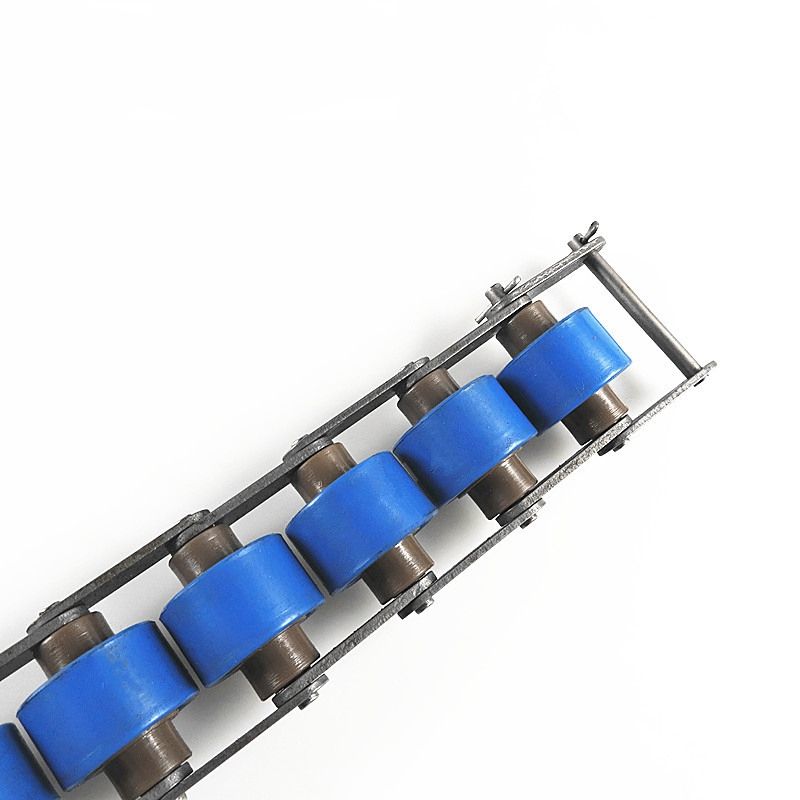

Double plus Chain (also called Triple Speed chains) are used typically on accumulating assembly line conveyors. This chain operates in a specially designed aluminum track. Small rollers turn the large rollers by friction as the chain travels in the track causing materials on the top of the chain to travel at approximately 2.5 times the linear speed of the chain. Double Plus Chain are available with ‘snap covers’ to keep particles out, in resin rollers and with protective coatings (nickel, chromium plating).

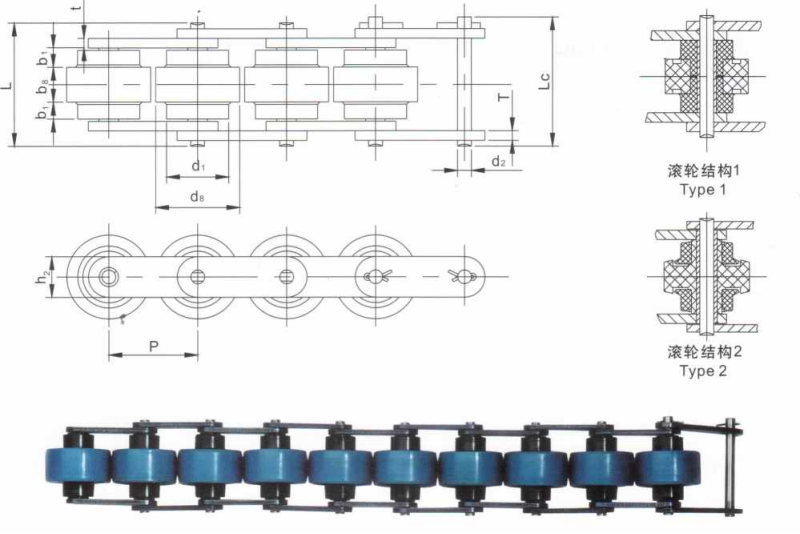

BS Type
Dimensional parameters
JB链号 JB Chain No. | 节距
Pitch |
滚子尺寸 Roller dimensions | 销轴尺寸 Pin
dimensions |
链板尺寸 Plate
dimensions |
每米重量 Weight per meter | |||||||
P | d1
max |
d8
max |
b1
max |
b8
max |
d2
max |
L
max |
Lc
max |
h2
max |
T
max |
t
max |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/m | |
BS25-C206B | 19.05 | 11.91 | 18.30 | 4.00 | 8.00 | 3.28 | 24.00 | 25.60 | 8.20 | 1.30 | 1.50 | 0.52 |
BS25-C208A | 25.40 | 15.88 | 24.60 | 5.70 | 10.30 | 3.96 | 31.00 | 32.80 | 11.70 | 1.50 | 1.50 | 0.79 |
BS25-C210A | 31.75 | 19.05 | 30.60 | 7.10 | 13.00 | 5.08 | 39.50 | 41.20 | 15.00 | 2.06 | 2.06 | 1.36 |
BS25-C212A | 38.10 | 22.23 | 36.60 | 8.50 | 15.50 | 5.94 | 48.80 | 50.50 | 18.00 | 3.25 | 3.25 | 2.19 |
BS30-C206B | 19.05 | 9.00 | 18.30 | 4.50 | 9.10 | 3.28 | 26.30 | 29.60 | 7.28
f |
1.30 | 1.50 | 0.50 |
BS30-C208A | 25.40 | 11.91 | 24.60 | 6.10 | 12.50 | 3.96 | 35.60 | 39.50 | 9.60 | 1.50 | 2.00 | 0.83 |
BS30-C210A | 31.75 | 14.80 | 30.60 | 7.50 | 15.00 | 5.08 | 43.00 | 47.10 | 12.20 | 2.00 | 2.40 | 1.27 |
BS30-C212A | 38.10 | 18.0 | 37.00 | 9.75 | 20.00 | 5.94 | 58.10 | 62.70 | 15.00 | 3.00 | 4.00 | 2.14 |

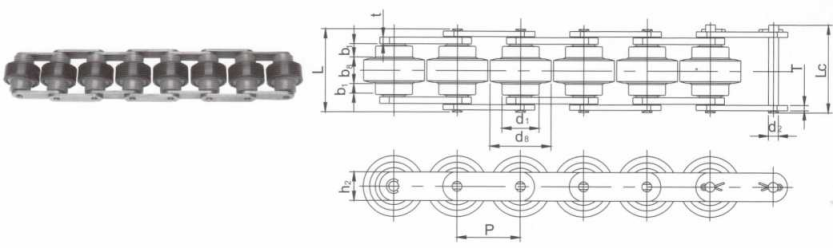

RF-VRP Type
Dimensional parameters
链号
Chain No. |
节距
Pitch
|
滚子尺寸 Roller dimensions | 销轴尺寸 Pin
dimensions |
链板尺寸 Plate
dimensions |
每米重量
Weight per meter |
|||||||
P | d1
max |
d8
max |
b1
max |
b8
max |
d2
max |
L
max |
Lc
max |
h2
max |
T
max |
t
max |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/m | |
RF2030VRP | 19.05 | 11.91 | 18.30 | 4.00 | 8.00 | 3.59 | 24.10 | 25.30 | 9.00 | 1.50 | 1.50 | 0.60 |
RF2040VRP | 25.40 | 15.88 | 24.60 | 5.70 | 10.30 | 3.97 | 31.60 | 32.80 | 12.00 | 1.50 | 2.00 | 1.00 |
RF2050VRP | 31.75 | 19.05 | 30.60 | 7.10 | 13.00 | 5.09 | 39.10 | 40.80 | 15.00 | 2.00 | 2.40 | 1.40 |
RF2060VRP | 38.10 | 22.23 | 36.60 | 7.80 | 14.40 | 5.94 | 50.20 | 52.90 | 17.20 | 3.20 | 4.00 | 2.00 |
RF2080VRP | 50.80 | 28.58 | 48.00 | 15.00 | 20.00 | 7.92 | 71.60 | 74.00 | 23.00 | 4.00 | 4.00 | 3.90 |

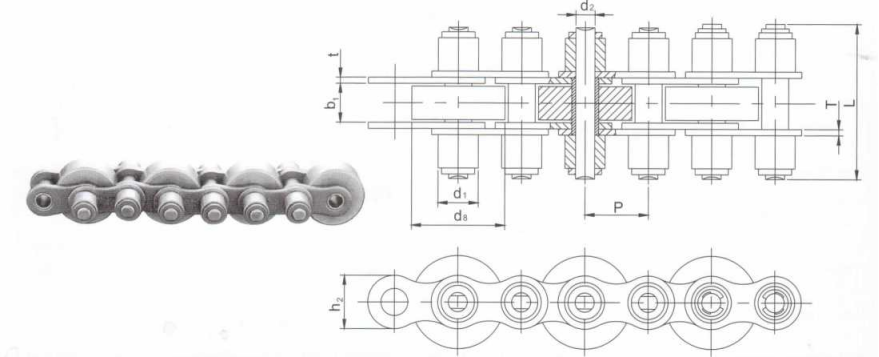

BS Type
Dimensional parameters
链号
Chain No. |
节距
Pitch |
滚子直径 Roller diameter | 内节内宽 Width between inner plates | 销轴尺寸 Pin
dimensions |
链板尺寸 Plate
dimensions |
抗拉强度 Ultimate tensile strength | 平均抗拉强度 Average tensile strength | |||
P | d1
max |
d8
max |
b1
min |
d2
max |
L
max |
h2
max |
T/t
max |
Q
min |
Qo | |
mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
08BS | 12.70 | 8.51 | 16.0 | 7.75 | 4.45 | 27.0 | 11.81 | 1.5/1.6 | 18.0 | 19.8 |
12BS | 19.05 | 12.07 | 28.0 | 11.68 | 5.72 | 45.4 | 16.13 | 1.85 | 28.9 | 31.7 |
12BS-P26 | 19.05 | 12.07 | 26.0 | 11.68 | 5.72 | 43.0 | 16.13 | 1.85 | 29.0 | 31.9 |
