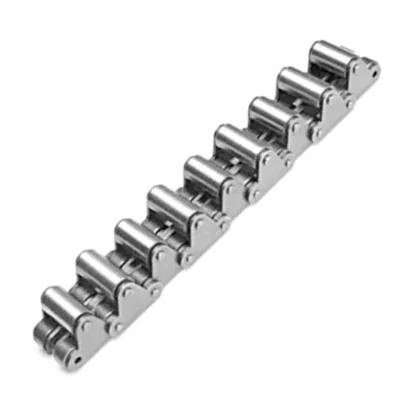

Double-Row top roller chains
Double-Row Top Roller Chains with Top Rollers (Top Roller Chain) is often used on accumulating free flow conveyors. Top Roller Chain is based on the standard chain with extended side plates (SK-1 attachments). Top rollers are installed on the pins that connect SK-1 extended plates. Top Roller chains are available with steel or engineered plastic top rollers on every link or every 2nd link. Pallets with conveyed objects are loaded on the top rollers.

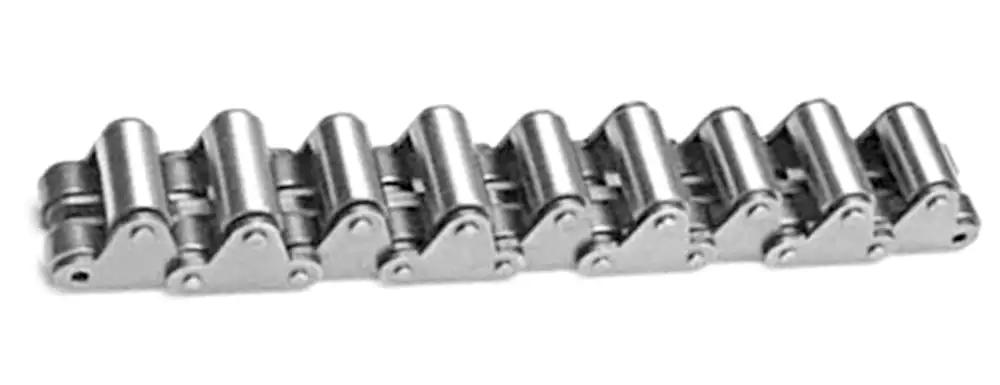

Stainless Steel Double-Row Top Roller Chains
Double-Row Top Roller Chains with Top Rollers (Top Roller Chain) are often used on accumulating free-flow conveyors. The top Roller Chain is based on the standard chain with extended side plates (SK-1 attachments). Top rollers are installed on the pins that connect SK-1 extended plates. Top Roller chains are available with steel or engineered plastic top rollers on every link or every 2nd link. Pallets with conveyed objects are loaded on the top rollers.
There are three types of base chains:
(1) Double-pitch roller chain with standard rollers (straight side plates, small rollers).
(2) Double-pitch roller chain with oversize rollers (straight side plates, oversized rollers).
(3) RS-type (figure-eight side plates, small rollers; oversized rollers are unavailable).

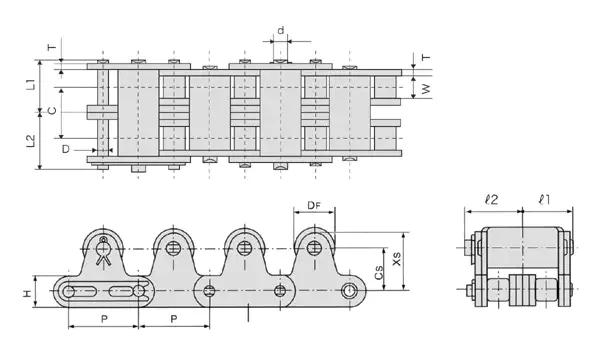

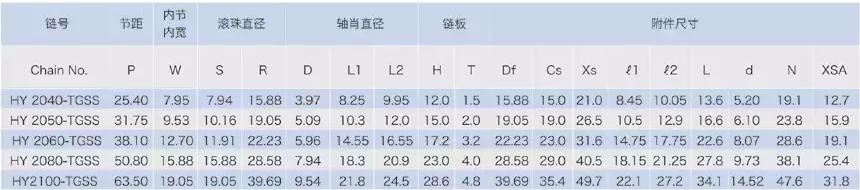

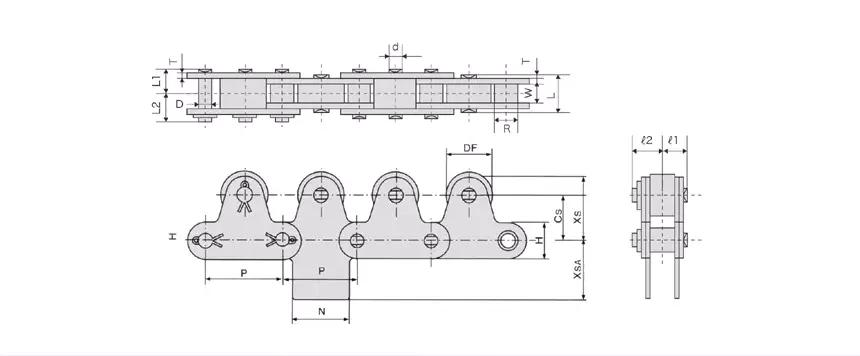

Double-Row Top Roller Chains Specification
 |
|
 |
 |
 |
 |
Features of Roller Chain Transmission
- Large reduction ratio (Usually up to 1:7 )
- Chains can be used with long shaft center distances (normally up to 4m). By changing the number of links, it is possible to freely adjust the shaft center distance.
- The chain can be used on both sides and drive multiple shafts at the same time.
- Easy installation and replacement. (Easy to cut and connect chains )
- If the distance between shafts is short, and the chain is guided, it can be driven vertically.
- The sprocket diameter of a chain drive could be smaller than a belt pulley while transmitting the same torque.
- Transmitting power by meshing many teeth results in less wear of sprocket teeth than gears.
- Chain drives have greater shock absorption than gear drives.
Stainless Steel Roller Chain Advantages
Applications in the food industry: The stainless steel roller chain is a popular option since it can withstand harsh temperatures and is simple to clean. The chain needs to be cleaned frequently in environments where food is handled, processed, or packaged; hence stainless steel roller chains are the ideal option.
Temperature High resistance: Stainless steel roller chains are capable of withstanding temperatures as high as 400°C and as low as -20°C. This makes it a very popular option in situations when other metals or mechanical components are not the best solutions.
Corrosive Resistance: Another reason this roller chain is very resistant to both alkaline and acidic environments, which can be common in some sectors. A very low magnetic permeability is another feature of it.
Better Wear Resistance from Heat-Treated and Pre-Stressed Materials: Heat-treated materials with improved temperature resistance that have also undergone pre-stress testing are less likely to break or stretch prematurely.
Stainless Steel Roller Chains Application
Stainless steel roller chains have been used for generations by industry leaders in the manufacturing and agriculture world to transfer power for heavy applications. It is invaluable because of its capability to perform in the most difficult environments for sustained periods. Having the right chain for each manufacturing component can help to reduce expensive equipment failure and is essential for success. Stainless steel roller chains are often used in situations where corrosion is possible. Having a stainless steel chain in these scenarios is invaluable because it provides structural integrity and withstands environmental stress for long periods.
Other Chains Related Products
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
| One-stop Supplier of Chain Transmission Products | |||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
We Also Provide Roller Chain Sprockets to Match Your Roller Chains
Packaging Display of Roller Chains
Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.
