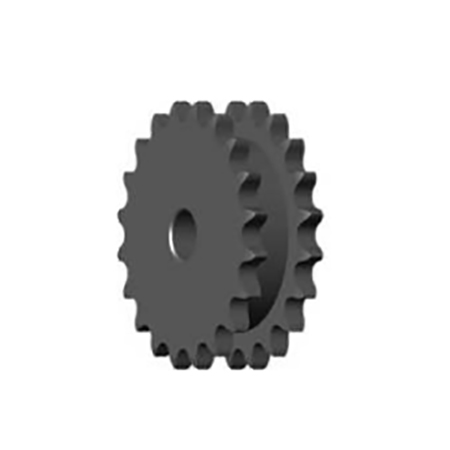

Double simplex sprockets For roller chains Din8187 ISO606

Description

Double simplex sprockets For roller chains Din8187 ISO606

Double simplex sprockets For roller chains Din8187 ISO606, According to international standards, the sprocket can be classified into three types. They are American standard(ANSI), European standard(DIN), Japanese standard(JIS).

Our Double Simplex Sprocket is made of medium carbon steel through integral forging process. The sprockets teeth are created by specialized gear hobbing machines and CNC machine.

Our machining methods include CNC machining, spline, thread rolling, gear hobbing, teeth cutting, centerless grinding, finishing. Also we can do it by boring, drilling, milling, turning, broaching, tapping, wire EDM.

The Double Simplex Sprocket undergoes integral quenching and tempering, so as to offer superior mechanical performance as well as high strength and deformation resistance. Due to this, it supports working with high load. Through high frequency quenching, the teeth of our roller chain sprocket come with high hardness and superb wearing resistance.

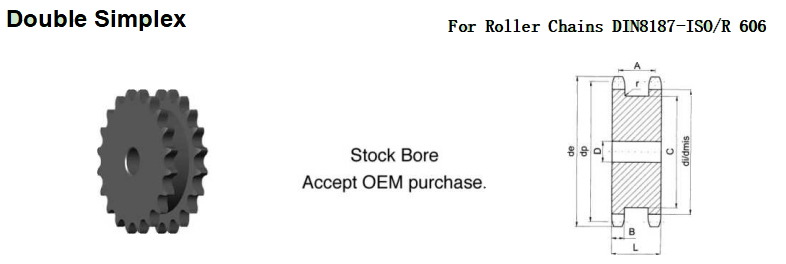

Double simplex sprockets For roller chains Din8187 ISO606 Diameter Data

Type	Z	de	dp	di	dmis	D	A	B h14	Cmax	L
	13	43	39.80	33.45	33.16	10	13.7	5.3	28	24.3
3/8” X 7/32” R6.35	15	49.3	45.81	39.46	39.21	10	13.7	5.3	34	24.3
	17	55.3	51.84	45.49	45.27	10	13.7	5.3	40	24.3
	19	61.3	57.87	51.52	51.32	10	13.7	5.3	46	24.3
06B-1	21	68	63.91	57.56	57.38	12	13.7	5.3	52	24.3
	23	73.5	69.95	63.60	63.44	12	13.7	5.3	59	24.3
	25	80	76.00	69.65	69.50	12	13.7	5.3	65	24.3
	13	57.4	53.07	44.56	44.17	10	23.8	7.2	37	31
1/2″ X 5/16″	15	65.5	61.08	52.57	52.24	10	23.8	7.2	45	31
R8.51	17	73.6	69.12	60.61	60.31	12	23.8	7.2	53	31
	19	81.7	77.16	68.65	68.39	12	23.8	7.2	62	31
08B-1	21	89.7	85.21	76.71	76.46	14	23.8	7.2	70	31
	23	98.2	93.27	84.76	84.54	14	23.8	7.2	78	31
	25	105.8	101.33	92.82	92.62	14	23.8	7.2	86	31
	13	73	66.33	56.17	55.69	12	27.3	9.2	50	36.5
5/8” X 3/8” R10.16	15	83	76.35	66.19	65.78	12	27.3	9.2	60	36.5
	17	93	86.39	76.23	75.87	14	27.3	9.2	70	36.5
	19	103.3	96.45	86.29	85.96	14	27.3	9.2	80	36.5
10B-1	21	113.4	106.51	96.35	96.06	16	27.3	9.2	90	36.5
	23	123.4	116.59	106.43	106.15	16	27.3	9.2	100	36.5
	25	134	126.66	116.50	116.25	16	27.3	9.2	110	36.5
	13	87.5	79.60	67.53	66.95	14	33.9	11.1	59	45
3/4” X 7/16” R12.07	15	99.8	91.63	79.56	79.05	14	33.9	11.1	71	45
	17	111.5	103.67	91.60	91.18	17	33.9	11.1	83	45
	19	124.2	115.74	103.67	103.27	17	33.9	11.1	95	45
12B-1	21	136	127.82	115.75	115.39	20	33.9	11.1	107	45
	23	149	139.90	127.83	127.51	20	33.9	11.1	119	45
	25	160	151.99	139.92	139.62	20	33.9	11.1	131	45
1″ X 17.02 R15.88	13	117	106.14	90.26	89.48	16	47.3	16.2	81	63.5
	15	133	122.17	106.29	105.62	16	47.3	16.2	91	63.5
	17	149	138.23	122.35	121.76	20	47.3	16.2	113	63.5
16B-1	19	165.2	154.32	138.44	137.91	20	47.3	16.2	129	63.5
	21	181.2	170.42	154.54	154.06	20	47.3	16.2	145	63.5
