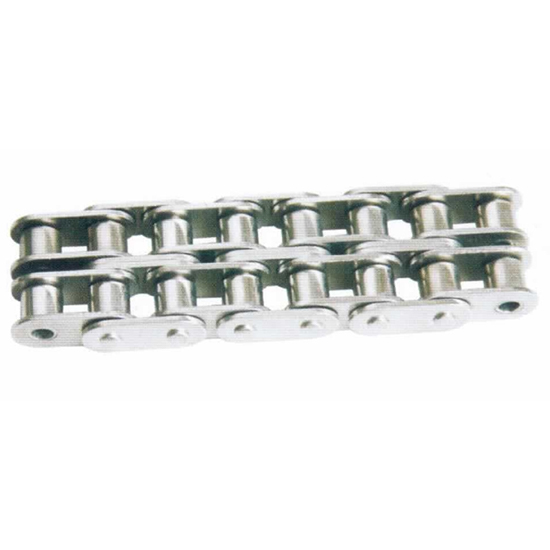

Duplex roller chain C40SS2 C50SS2 C60SS2 C80SS2 C100SS2 C120SS2 C08BSS2 C10BSS2 C12BSS2 C16BSS2 C20BSS2 C24BSS2
Duplex chain is a robust type of roller chain with two parallel rows of inner links, offering increased strength and durability compared to standard chains. It is widely utilized in industrial machinery and mechanical systems where reliable power transmission under heavy loads is critical.

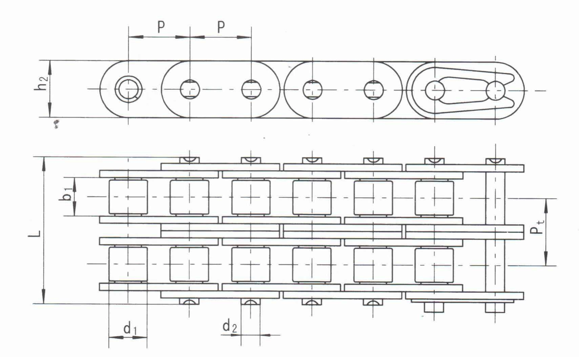

Diameter Data
Pitch | Roller diameter | Width between inner plates | Pin | Inner
plate depth |
Transv
erse pitch |
Ultimate tensile strength | Average tensile strength | Weight
Per meter |
||
Chain | dia | length | ||||||||
No. | P
mm |
d1(max)
mm |
b1(min)
mm |
d2
mm |
L
mm |
h2(max)
mm |
Pt
mm |
Q(min)
KN |
Qo
KN |
q
kg/m |
C40SS-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31 | 12 | 14.38 | 19.6 | 21.2 | 1.44 |
C50SS-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.5 | 15 | 18.11 | 28.4 | 32.04 | 2.45 |
C60SS-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.1 | 18 | 22.78 | 45.6 | 48.07 | 3.59 |
C80SS-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62 | 24 | 29.29 | 70 | 86.5 | 6.14 |
C100SS-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.4 | 30.18 | 35.76 | 106.2 | 123.4 | 9.12 |
C120SS-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 35.7 | 45.44 | 152.4 | 180.3 | 13.7 |
C08BSS-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31 | 11.8 | 13.92 | 22.5 | 23.5 | 1.46 |
C10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 35.8 | 14.6 | 16.59 | 29.8 | 31.5 | 2.05 |
C12BSS-2 | 19.05 | 12.07 | 11.68 | 5.72 | 41.5 | 16 | 19.46 | 34.6 | 35.2 | 2.67 |
C16BSS-2 | 25.4 | 15.88 | 17.02 | 8.28 | 67.2 | 21 | 31.88 | 78 | 89.7 | 6.14 |
C20BSS-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.7 | 26 | 36.45 | 110 | 125.3 | 8.25 |
C24BSS-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.8 | 33.4 | 48.36 | 168 | 191.5 | 14.78 |
