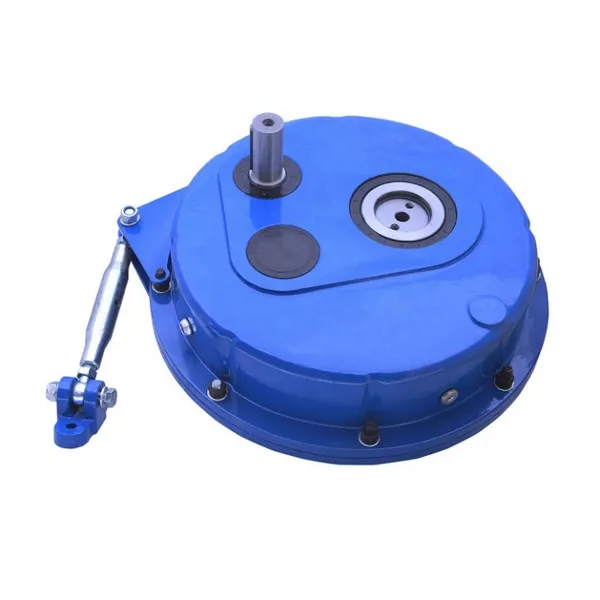

DXG35/DXG35 D Series Shaft Mounted Gearbox for Material Handling Industry

DXG35 series shaft mounted gearbox (reducer) adopts hard tooth surface helical gear, with high bearing capacity, smooth transmission, lightweight, and low energy consumption. The input shaft of DXG35 shaft mounted gearbox is connected with the reducer motor through the pulley; The hollow output shaft is connected by a key. Electric rollers can replace it as the power for belt conveyors and lifting equipment. DXG35 series shaft mounted gearbox can be installed with backcheck, avoid the working machine skid, pull rod installation is convenient. DXG35 series shaft mounted gearbox is widely used in mining equipment, concrete mixing plants, gravel crushers, sand production lines, and other belt conveyors and mechanical transmission fields.

Description

DXG35/DXG35 D Series Shaft Mounted Gearbox for Material Handling Industry

DXG35 series shaft mounted gearbox (reducer Material Handling Industry Gearbox) adopts hard tooth surface helical gear, with high bearing capacity, smooth transmission, lightweight, and low energy consumption. The input shaft of DXG35 shaft mounted gearbox is connected with the reducer motor through the pulley; The hollow output shaft is connected by a key. Electric rollers can replace it as the power for belt conveyors and lifting equipment. DXG35 series shaft mounted gearbox can be installed with backcheck, avoid the working machine skid, pull rod installation is convenient. DXG35 series shaft mounted gearbox is widely used in mining equipment, concrete mixing plants, gravel crushers, sand production lines, and other belt conveyors and mechanical transmission fields.

DXG35/DXG35 D Series Shaft Mount Gearbox Specifications

Model	i	n1=1400r/min				n1=900r/min				n1=500r/min
		n2	Mn2	Pn1	Rn1	n2	Mn2	Pn1	Rn1	n2	Mn2	Pn1	Rn1
		r/min	N/m	kW	N	r/min	N/m	kW	N	r/min	N/m	kW	N
DXG35	5	280	200	6.0	700	180	250	4.8	800	100	350	3.8	1000
DXG35-D	10	140	300	4.6	500	90	350	3.5	600	50	400	2.2	750
	15	93	350	3.6	500	60	400	2.6	600	33	400	1.5	750
	19.5	72	380	3.0	500	46	400	2.0	600	25.6	400	1.1	750
	25	56	400	2.5	500	36	400	1.6	600	20.0	420	0.92	750

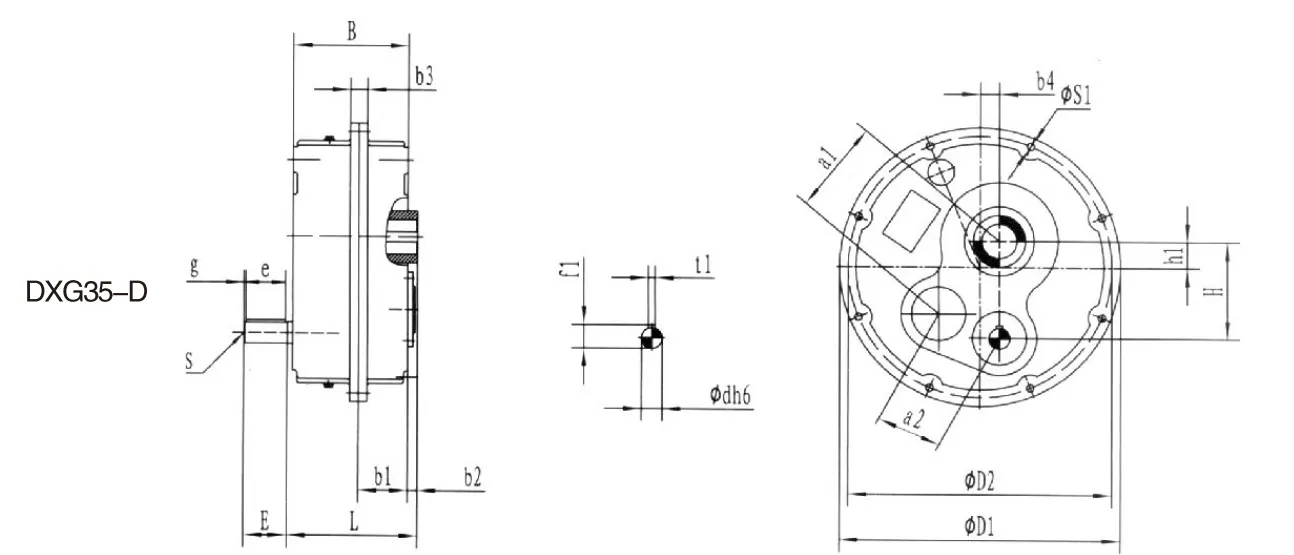

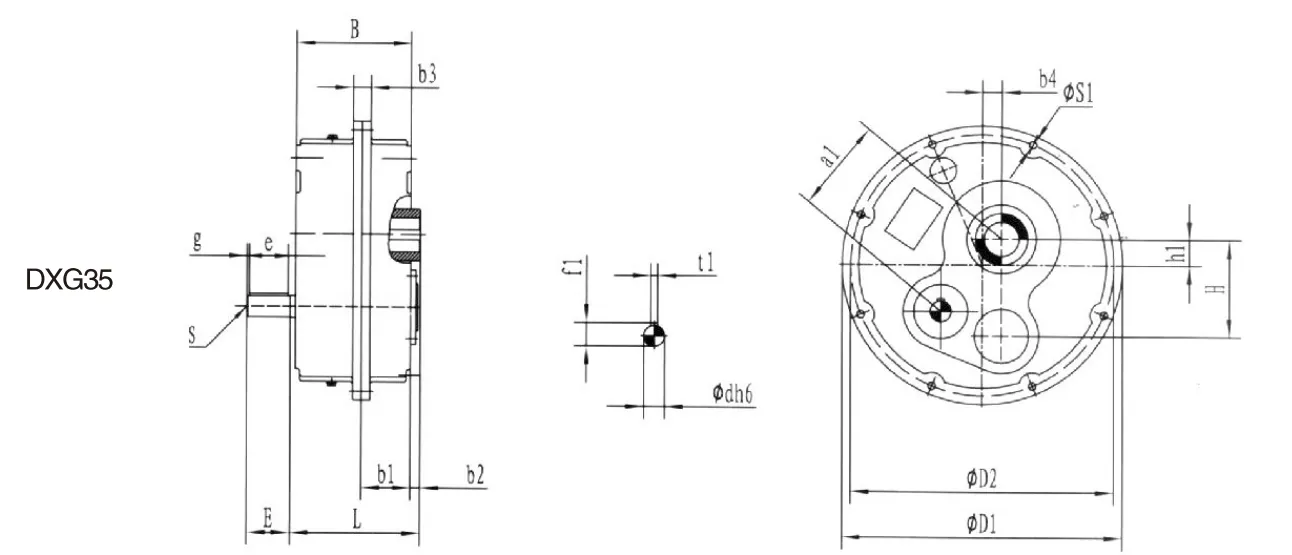

DXG35/DXG35 D Series Shaft Mounted Gearbox Dimensions

Model	外部尺寸 Outside dimensions																			重量Weight
	a1	a2	H	h1	B	b1	b2	b3	b4	D1	D2	d	E	e	g	f1	t1	S	L	(kg)
DXG35	79	59	83	23	111	44	12	20.5	21	256	240	19	40	36	2.5	21.5	M6	8.5	126	18
DXG35-D																				20

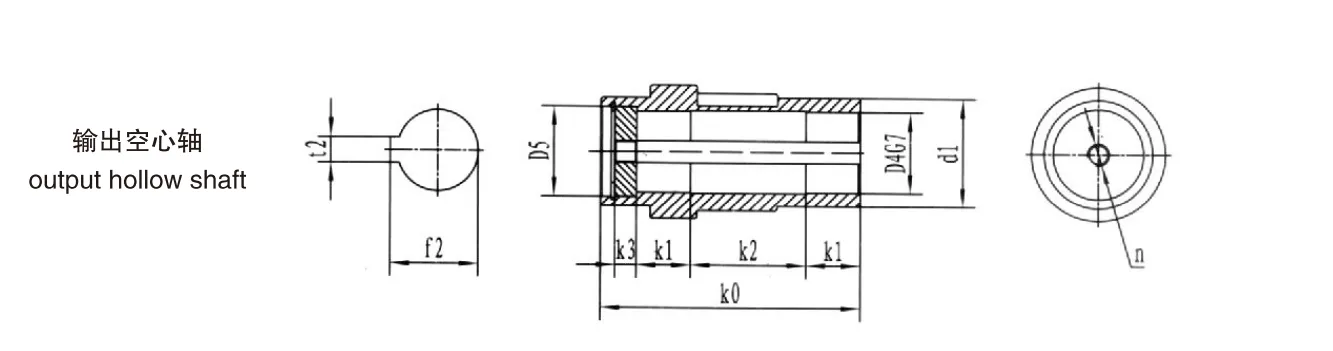

DXG35 Series Shaft Mounted Gearbox Output Hollow Shaft:

Model	输出空心轴的尺寸
Model	d1	D4	D5	K0	K1	K2	K3	f2	t2	n
DXG35	50	35	42	124	30	46	10	38.3	10	M10

Features of DXG30/DXG35 D Series Shaft Mounted Gearbox:

1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded DAG30) to prevent back driving in case of incline conveyors
6. Dimensions are the same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

DXG Series Shaft Mounted Gearbox Applied to Conveyor

DXG Series Shaft Mounted Gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc. The following pictures illustrate how DXG is applied to the conveyor belt. The motorized pulley(drum motor) is configured with a DXG series shaft-mounted gearbox and then transmits power to the conveyor.
