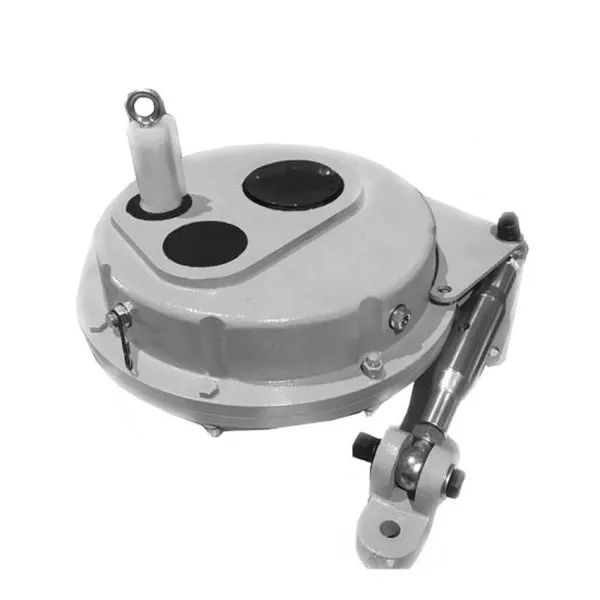

DXG40/DXG40 D Series Shaft Mounted Gearbox for Mining Equipment

After becoming the best-selling mining gearbox, the DXG (ATA) series shaft-mounted gearbox is well-received by industries. It is favored because its absolute reliability and low maintenance characteristics are critical factors in the mining and ore fields. The shaft-mounted speed reducer adopts a modular design that can be modified according to customer requirements. DXG(ATA) series shaft mounted gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc.

Description

DXG40/DXG40 D Series Shaft Mounted Gearbox for Mining Equipment

After becoming the best-selling mining gearbox(D Series Shaft Mounted Gearbox), the DXG (ATA) series shaft-mounted gearbox is well-received by industries. It is favored because its absolute reliability and low maintenance characteristics are critical factors in the mining and ore fields. The shaft-mounted speed reducer adopts a modular design that can be modified according to customer requirements. DXG(ATA) series shaft mounted gearbox is widely applied to the mining industry, such as Crusher, Ore Mill, Crane, Screening Machine, Conveyor, etc.

D Series Shaft Mounted GearboxDXG40/DXG40 D Series Shaft Mounted Gearbox Components:

1. Housing: Nodular Cast Iron(Ductile Iron) QT600

8. Input Configurations: Keyed Solid Shaft Input
IEC Normalized Motor Flange

2. Gears Profile: Hardened Helical Gears 9. Output Configurations:
Keyed Hollow Shaft Output
3. Gears Material: 20CrMnTi 9. Output Configurations: Keyed Hollow Shaft Output
4. Gears Processing: Carburizing, Quenching, Grinding 10. Oil Seal: TAIWAN SOG
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207 11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC
6. Gears Accuracy: 6 Class 12. Spare Parts: Torque arm, Optional Backstop
7. Shafts Material: 40Cr

DXG40/DXG40 D Series Shaft Mounted Gearbox Specifications:

Model i n1=1400r/min n1=900r/min n1=500r/min
n2 Mn2 Pn1 Rn1 n2 Mn2 Pn1 Rn1 n2 Mn2 Pn1 Rn1
r/min N/m kW N r/min N/m kW N r/min N/m kW N
DXG40 5 280 489 14.4 1000 180 550 10.6 1200 100 700 7.5 1500
DXG40-D 10 140 600 9.2 850 90 750 7.4 950 50 800 4.4 1200
12.7 110 750 8.1 850 71 780 5.8 950 39 820 3.4 1200
15 93 780 7.7 850 60 800 5.3 950 33 850 3.1 1200
19.7 71 780 6.1 850 46 800 4.0 950 25.4 850 2.4 1200
25 56 800 4.9 850 36 850 3.4 950 20.0 900 2.0 1200

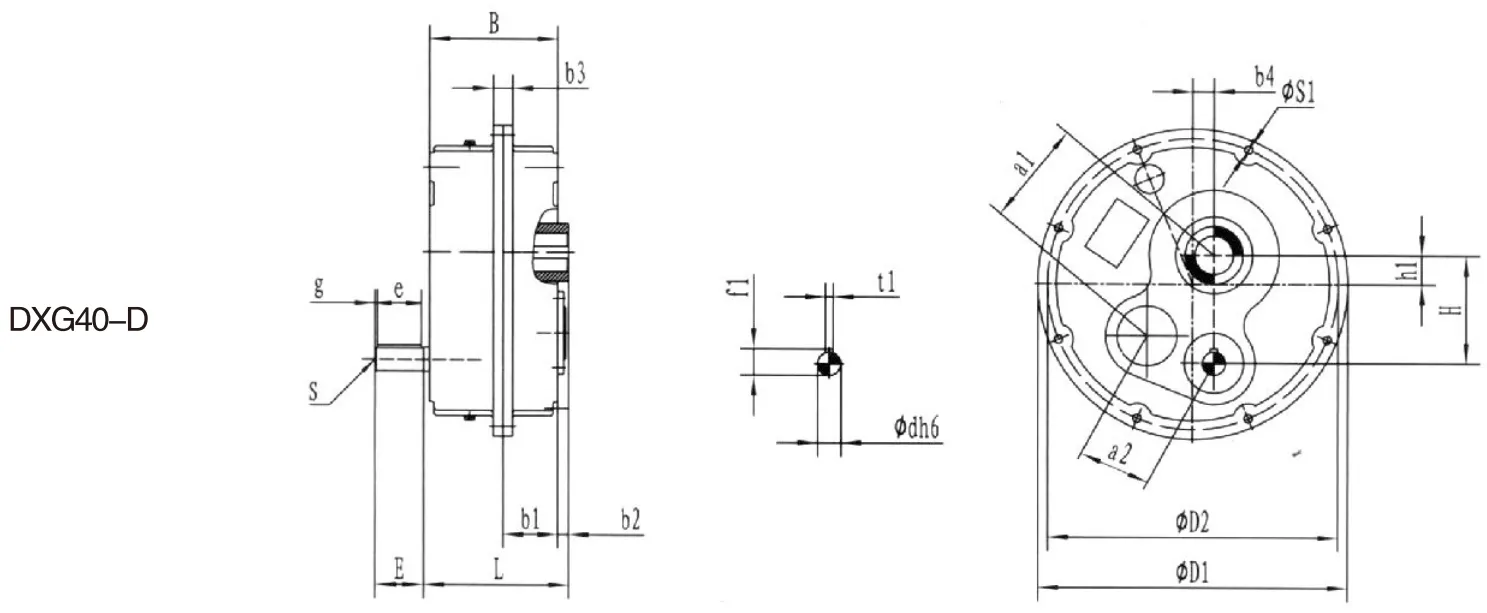

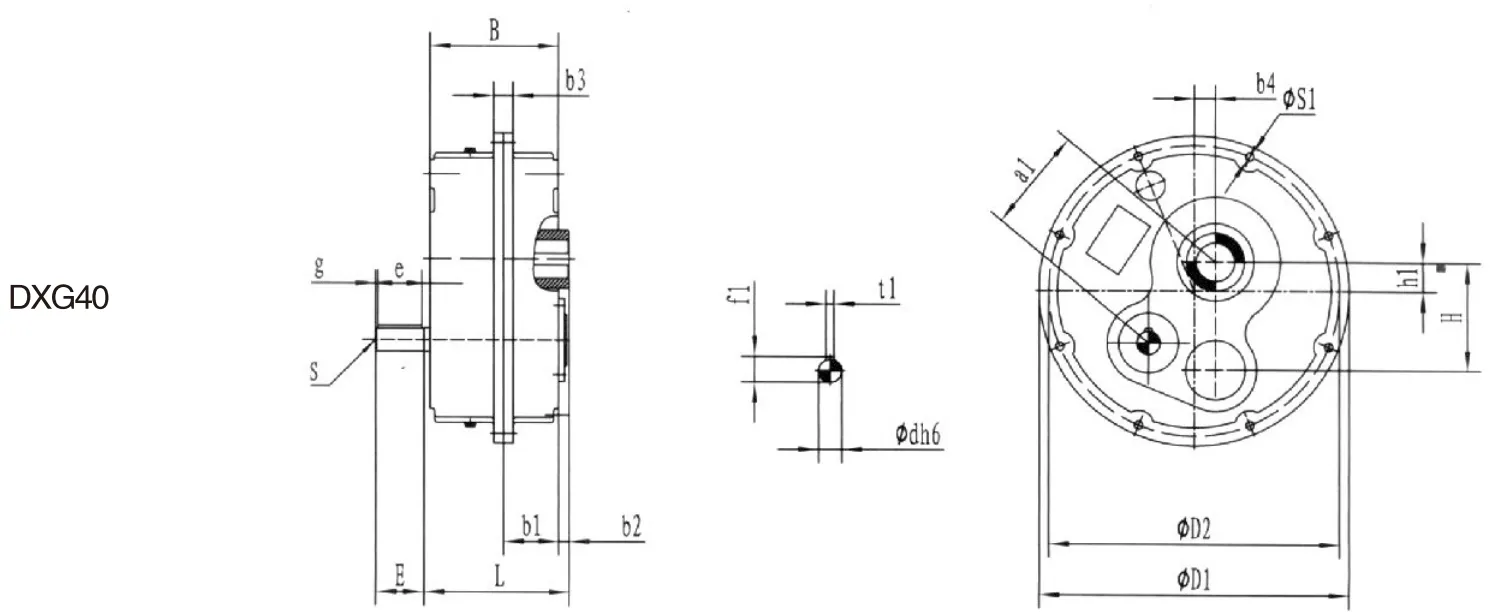

DXG40/DXG40 D Series Shaft Mounted Gearbox Dimensions

Model Outside dimensions Weight
a1 a2 H h1 B b1 b2 b3 b4 D1 D2 d E e g f1 t1 S s1 L (kg)
DXG40 109 75 112 30 132 57 11 20.5 22 330 310 24 50 45 2.5 27 8 M8 8.5 150 30
DXG40-D 33

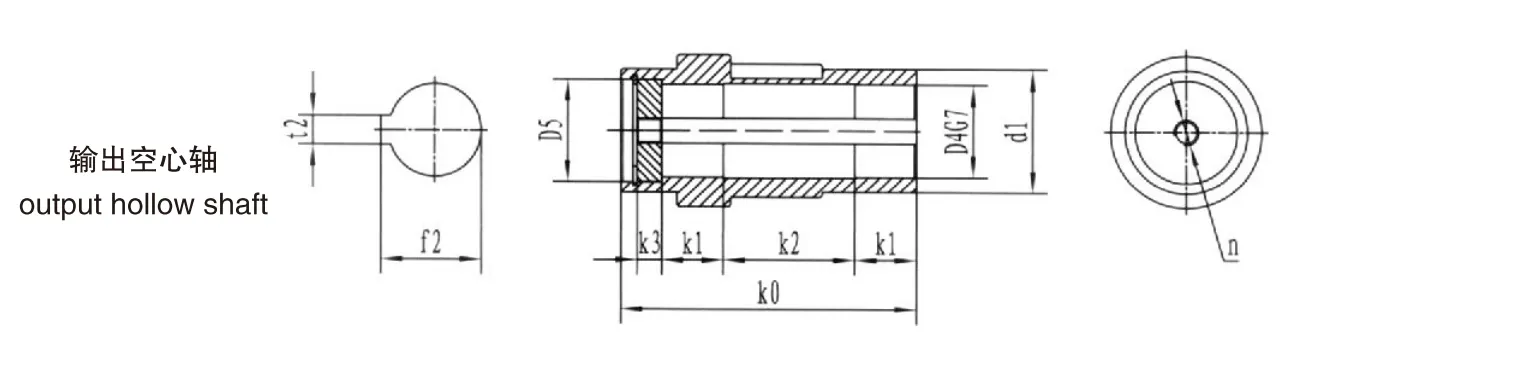

DXG40 Series Shaft Mounted Gearbox Output Hollow Shaft:

Model specifications
d1 D4 D5 K0 K1 K2 K3 f2 t2 n
DXG40 Φ40 60 40 50 144 30 64 12 43.4 12 M12
Φ45 45 50 48.8 14

Features of ATA(DXG) Series Shaft Mounted Gearbox:

1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models(Excluded ATA30) to prevent back driving in case of incline conveyors
6. Dimensions are the same with Bonfiglioli(TA Series)
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

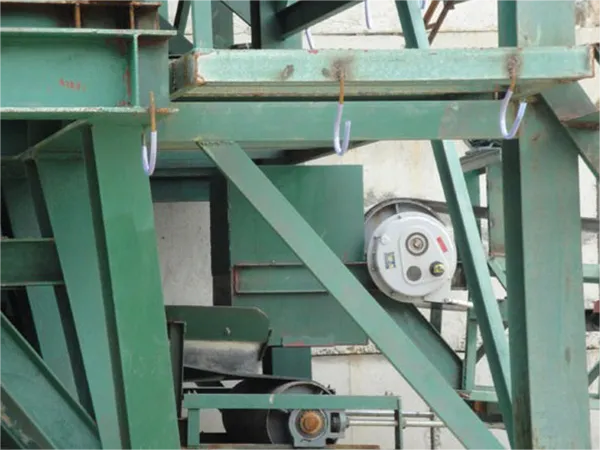

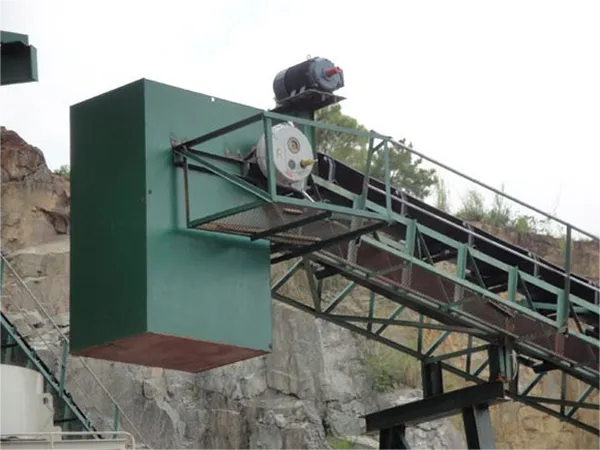

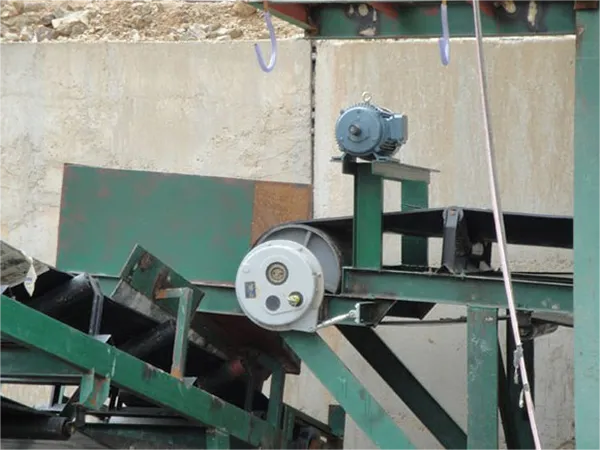

ATA(DXG) Series Shaft Mounted Gearbox Applications:

  • Material Handling Industry
  • Quarrying and Mining Industry
  • Mining Equipment
  • Concrete Batching Plant
  • Stone Crushers
  • Sand-making Production Line
