ATA (DXG) series shaft-mounted gearboxes for Conveyor and Material Handling
Design the ATA (DXG) series shaft-mounted gearboxes for quarry and mine applications and produce fantastic reliability with a low maintenance requirement. The robust and sturdy ductile iron housing is ideally suited for outdoor installation, and it comes with up to three optional output shaft bore diameters.
The output shaft can rotate in two directions, with clockwise as the default setting while counter-clockwise is the customizable setting. There is an optional backstop for all models in the ATA (DXG) series shaft mounted gearbox apart from the ATA30, which prevents back-driving when used with incline conveyors. With dimensions, the same as the Bonfiglioli from the ATA Series, the ATA (DXG) Series features a double-lipped oil seal that is also dust-proof.

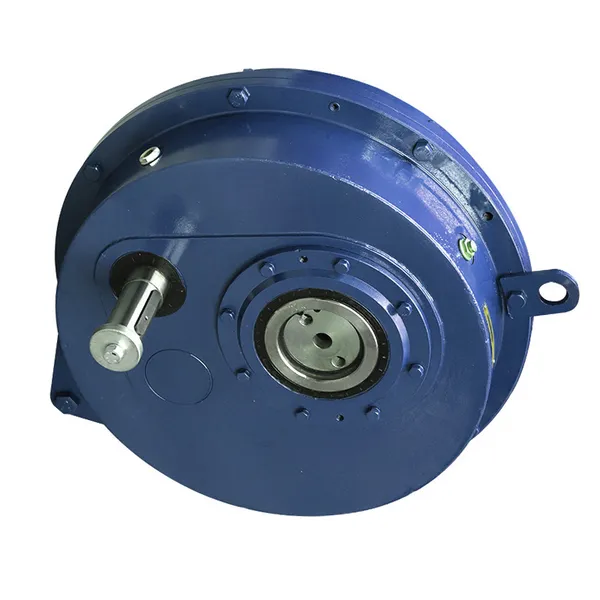

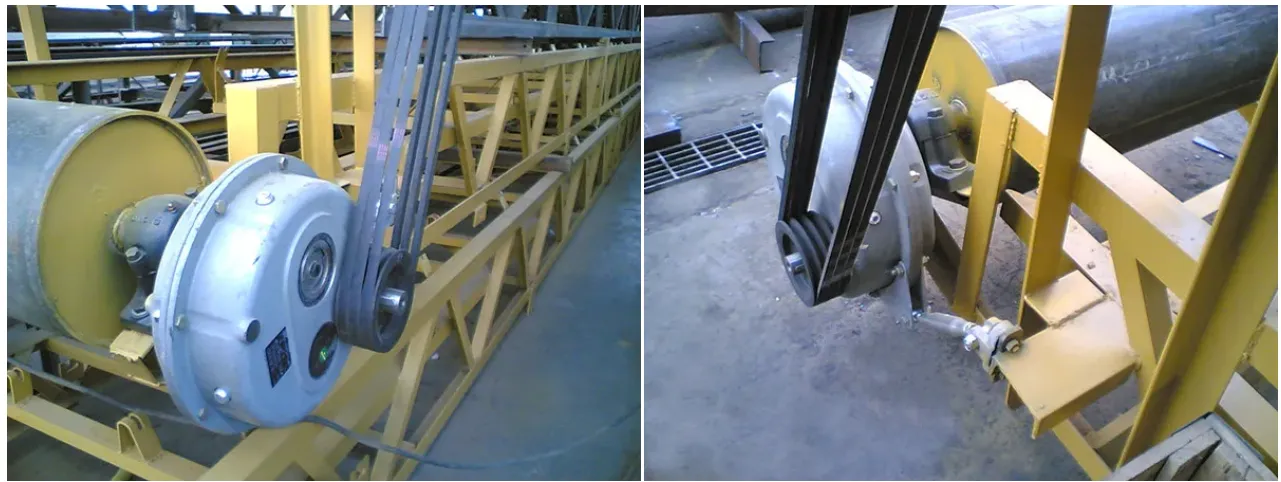

Applications of the ATA (DXG) series shaft mounted gearbox include it being widely used in belt conveyor and pulley drive systems, especially in the material handling industry, including quarrying and mining. As well as in different kinds of mining equipment, you will see the ATA (DXG) series shaft mounted gearbox at work at concrete batching plants, in stone crushing equipment, and in sand-making production lines.
Models of ATA(DXG) Series Shaft Mounted Gearbox:
- Stage: ATA30, ATA35, ATA40, ATA45, ATA50, ATA60, ATA70, ATA80, ATA100, ATA125
- Stage: ATA35D, ATA40D, ATA45D, ATA50D, ATA60D, ATA70D, ATA80D, ATA100D, ATA125D
Models | Output Bore Dia. | Maximum Torque | Nominal Ratio(i) |
ATA30 | 30mm | 180Nm | 5 7 10 12.5 15 20 25 31 |
ATA35 | 35mm | 420Nm | |
ATA40 | 40mm/45mm | 950Nm | |
ATA45 | 45mm/50mm/55mm | 1400Nm | |
ATA50 | 50mm/55mm/60mm | 2300Nm | |
ATA60 | 60mm/70mm | 3600Nm | |
ATA70 | 70mm/85mm | 5100Nm | |
ATA80 | 80mm/100mm | 7000Nm | |
ATA100 | 100mm/125mm | 11000Nm | |
ATA125 | 125mm/135mm | 17000Nm |
ATA (DXG) series shaft-mounted gearboxes Specifications:
Model | i | n1=1400r/min | n1=900r/min | n1=500r/min | |||||||||
n2 | Mn2 | Pn1 | Rn1 | n2 | Mn2 | Pn1 | Rn1 | n2 | Mn2 | Pn1 | Rn1 | ||
r/min | N/m | kW | N | r/min | N/m | kW | N | r/min | N/m | kW | N | ||
DXG60 | 5 | 280 | 1900 | 57 | 3200 | 180 | 2100 | 41 | 3600 | 100 | 2900 | 32 | 4500 |
DXG60-D | 10 | 140 | 3100 | 48 | 2600 | 90 | 3200 | 32 | 2900 | 50 | 3300 | 18.2 | 3600 |
12.2 | 114 | 3100 | 39 | 2600 | 74 | 3200 | 26 | 2900 | 41 | 3300 | 14.9 | 3600 | |
15 | 93 | 3200 | 33 | 2600 | 60 | 3300 | 22 | 2900 | 33 | 3550 | 13.0 | 3600 | |
20.3 | 69 | 3250 | 25 | 2600 | 44 | 3400 | 16.6 | 2900 | 24.6 | 3550 | 9.6 | 3600 | |
25.3 | 55 | 3300 | 20 | 2600 | 36 | 3500 | 13.9 | 2900 | 19.8 | 3600 | 7.9 | 3600 |

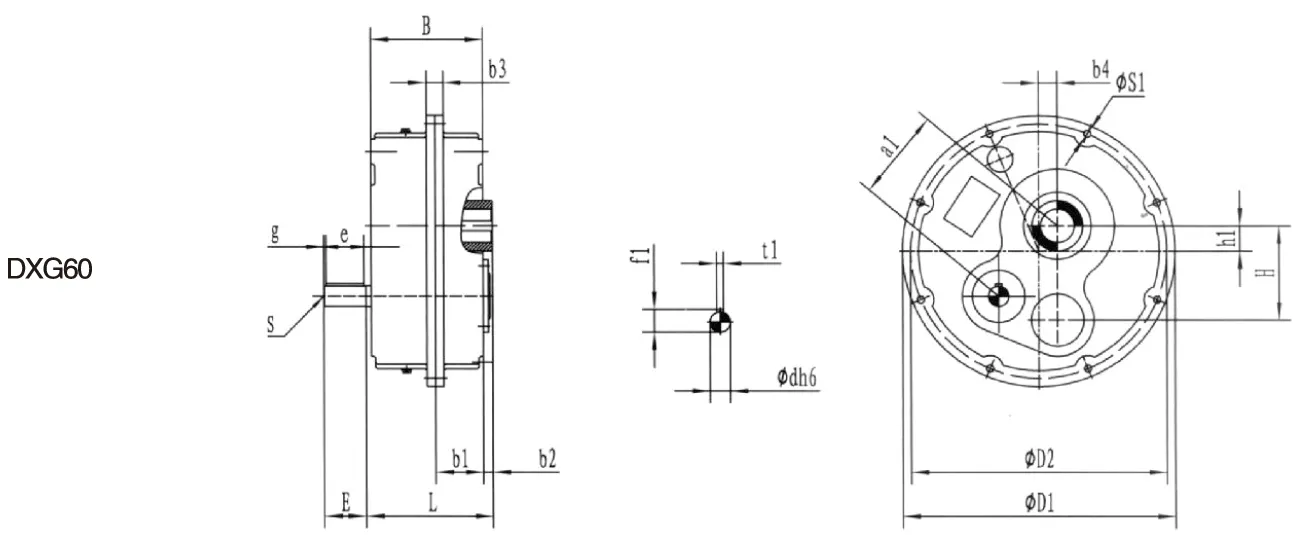

ATA (DXG) series shaft-mounted gearboxes Dimensions:
Model | Outside dimensions | Weight | |||||||||||||||||||
a1 | a2 | H | h1 | B | b1 | b2 | b3 | b4 | D1 | D2 | d | E | e | g | f1 | t1 | S | s1 | L | (kg) | |
DXG60 | 162 | 130 | 174 | 47 | 182 | 73 | 16 | 28.5 | 48 | 500 | 468 | 42 | 110 | 100 | 5 | 45 | 12 | M12 | 13 | 206 | 88 |
DXG60-D | 38 | 80 | 70 | 41 | 10 | 102 |

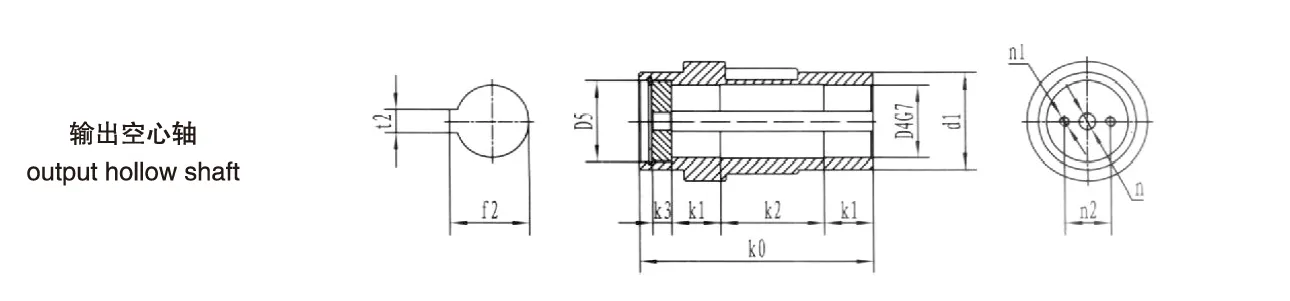

DX60 Series Shaft Mounted Gearbox Output Hollow Shaft:
Model | Dimensions of output hollow shaft | |||||||||||
d1 | D4 | D5 | K0 | K1 | K2 | K3 | f2 | t2 | n | n1 | ||
DXG60 | Φ60 | 100 | 60 | 70 | 199 | 45 | 85 | 14 | 64.4 | 18 | M12 | 42 |
Φ70 | 70 | 85 | 16 | 74.9 | 20 | M16 | 50 |
Installation of ATA (DXG) Series Shaft Mount Gearbox:
The following installation instructions
- Ensure that the gearbox is properly installing to prevent loosening. Install hydraulic couplings, torque limiters, etc., if necessary for use in situations of overload or vibration.
- Before painting, there must be protective measures on the machining surface of parts and the outer surface of the oil seal to prevent the paint from drying on the rubber and damaging the sealing function.
- Before the gearbox is used, it shall be ensured that the equipment connected with the gearbox shall comply with the relevant technical regulations.
- Before starting the machine, ensure that the oil surface conforms to the assembly position specified by the gearbox, and the oil’s viscosity should be suitable for the gearbox.
- For outdoor installation, Proper measures must be taken to protect the motor from rain or sun exposure.
- Before assembly, each mounting surface must be cleaned and properly treated to prevent rust.

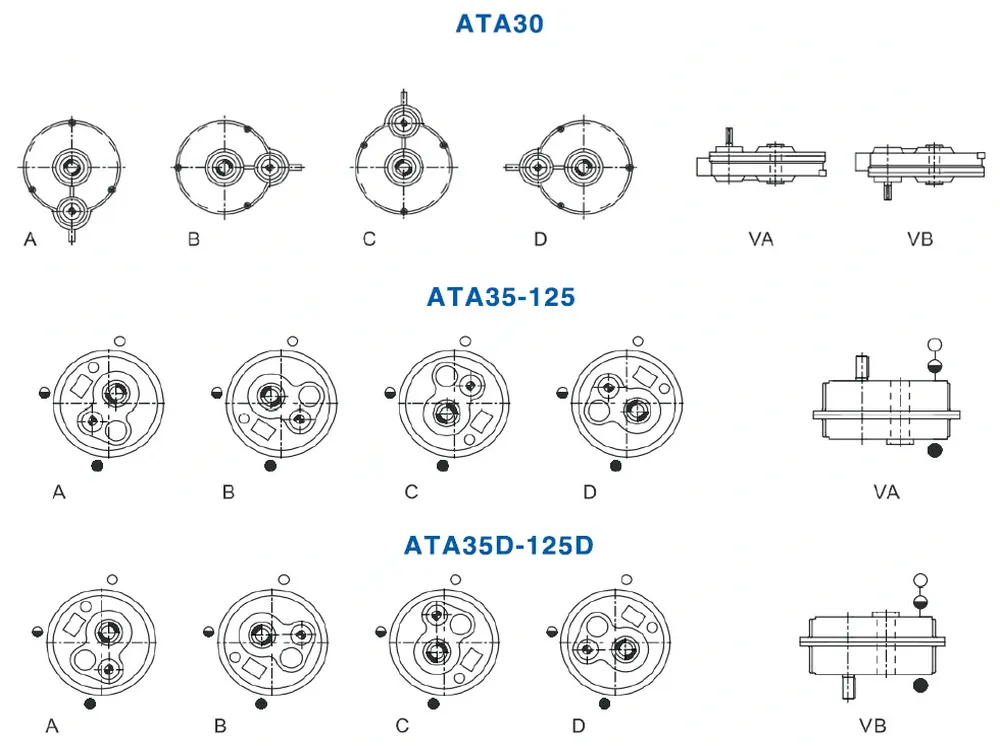

ATA(DXG) Series Shaft Mounted Gearbox Mounting Positions:
The Characteristic of ATA (DXG) Series Shaft mounted Gearbox:
Mounting Type: Tie rod Hanging shaft mounted
Output Shaft: Single key hollow shaft, each model can select three hollow diameters at most.
Gearbox Housing: Hard Iron Steel, working outside.
Anti-slip device: This can suit any model, It’s very convenient to mountting.
Application of ATA (DXG) Series Shaft Mount Gearbox:
Agriculture, commerce, telecommunications industry, food industry, tobacco industry, automobile industry, cement industry, mining industry, and mixing station belt conveyor systems.
